HGLRC Flame 2207 1775KV 5-6S Brushless Motor for RC FPV Racing Drone - 24.00 €

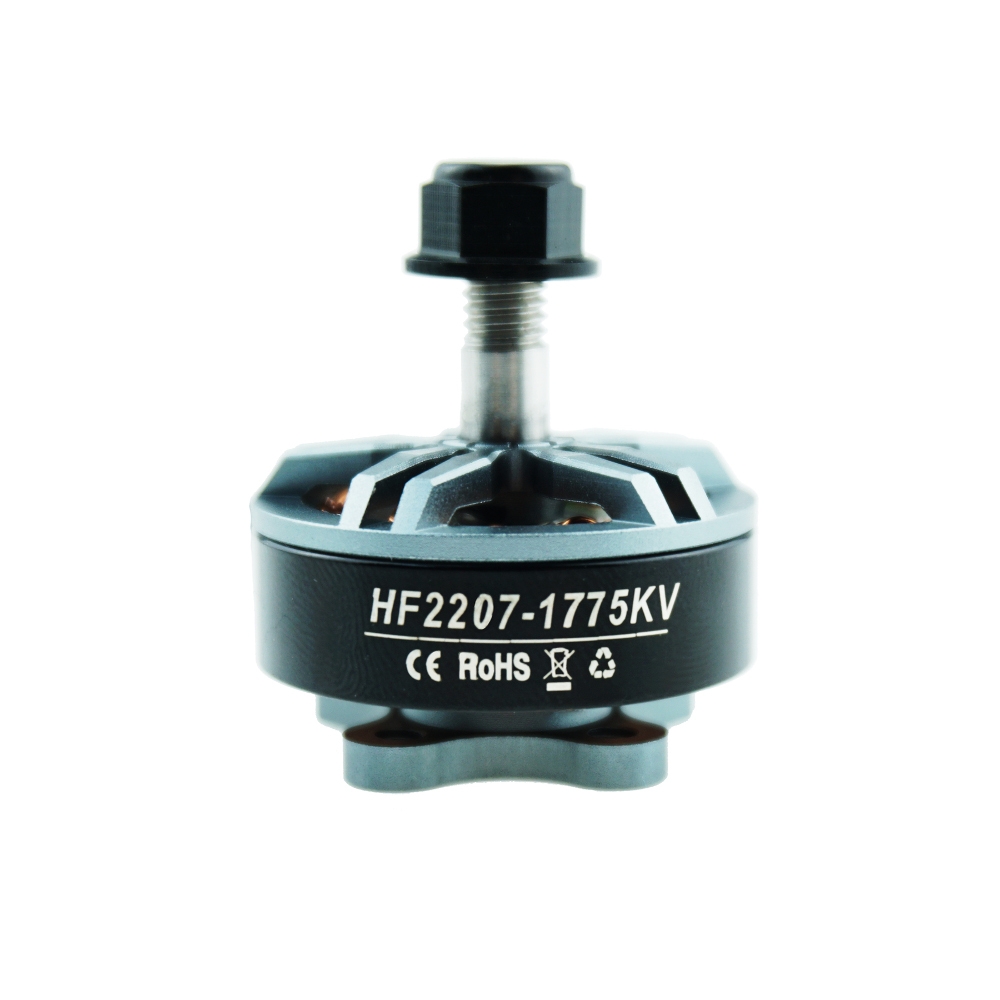

HGLRC Flame 2207 1775KV 5-6S Brushless Motor for RC FPV Racing Drone
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

HGLRC Flame 2207 1775KV 5-6S Brushless Motor for RC FPV Racing Drone

Specification:

Brand name: HGLRC
Item name: FLAME 2207 1775KV Brushless Motor
Motor KV: 1775KV
Stator Diameter: 22mm
Stator Thickness: 7mm
No.of Stator Arms: 12S
No.of Rotor poles: 14P
No-load Current(A/10V): 0.89A
Motor Resistance: 62mΩ
Max Continuous Current : 34A
Max Continuous Power: 680W
Weight(Excluding Cable): 30.7g
Rotor Diameter: 27.5mm
Shaft Diameter: 5mm
Body Length: 17.7mm
Overall shaft Length: 30.9mm
No.of Cells(Lipo): 5~6S
ESC: 40~60A
Recommended Prop(inch): 5~6Inch
Wire Szie: 18AWG 150mm

Package Included:
1 X FLAME 2207 1775KV Brushless Motor
