Specification:

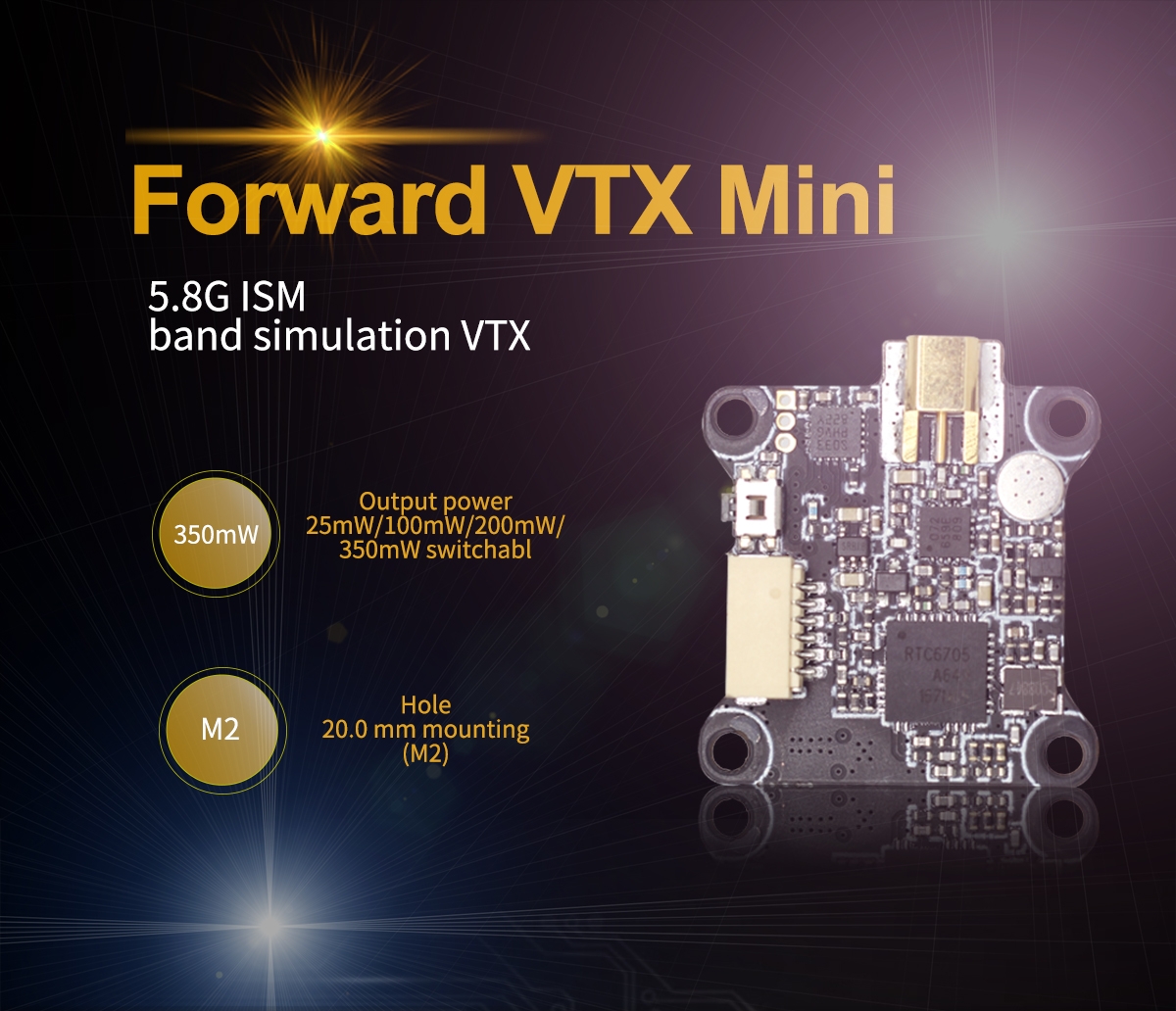

Item Name: HGLRC Forward VTX Mini
Output Power: PIT/25mW/100mW/200mW/350mW Switchable
Control Mode: BFOSD Control(RX)/Button
BAT: 7-26V, BEC 5V-1A,250mA----350mW
Video System: NTSC/PAL
Antenna: MMCX
Size: 24*27mm(L*W),Hole:20*20mm
Weight: 2.7g
Frequency and power control methods:
1.Button frequency control: Short press once to change channel number CH
(CH1-CH8) long press for 2 seconds and then short press to change
frequency group FR (A-B-E-F-R-L)
2.Button power control: Long press button for 6 seconds and then short press button to change power level PIT/25mw/100mw/200mw/ 350mw
Package Included:
1 x HGLRC Forward VTX Mini
1 x HGLRC 80mm 5.8G MMCX Linear Brass Antenna
1 x SH1.0 6Pin 100mm Cable
1 x MMCX to SMA Adapter Cable
