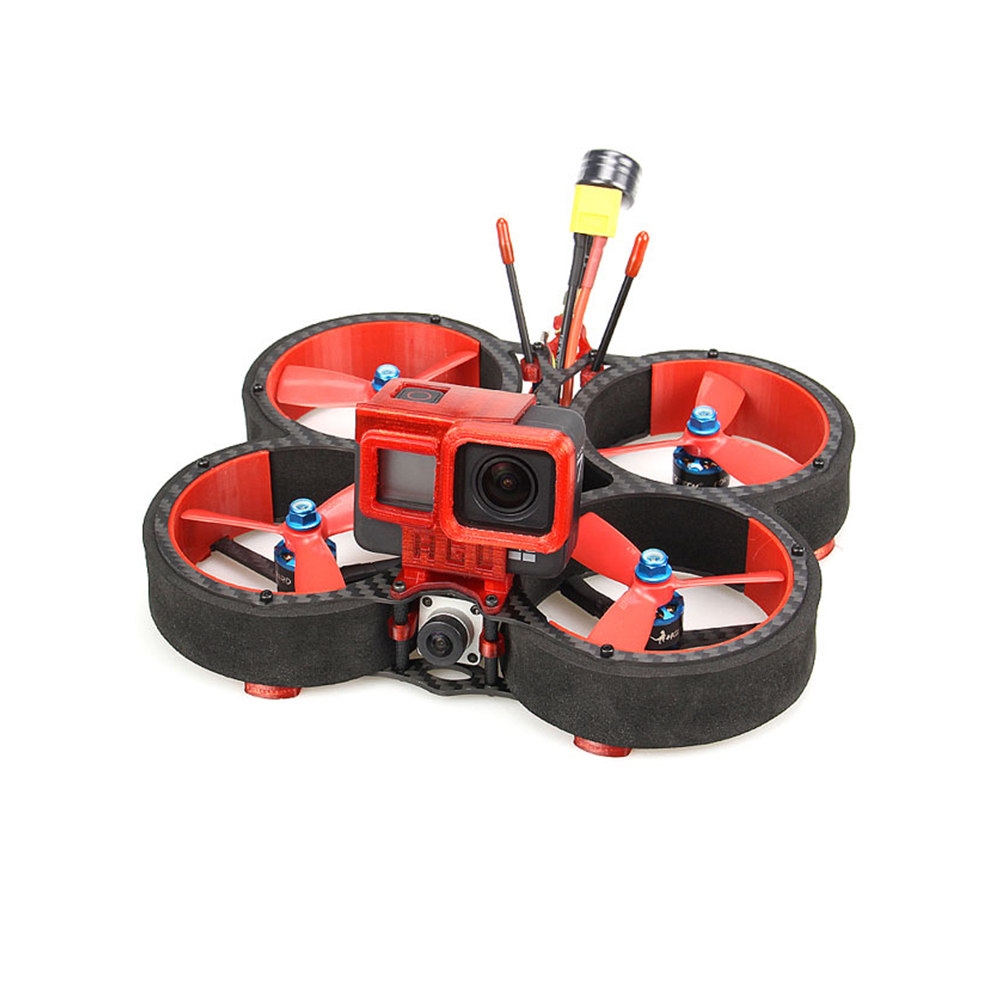

HGLRC Veyron 3 HD 136mm F4 ZEUS 35A ESC 3 Inch 4S / 6S Cinewhoop FPV Racing Drone PNP BNF w/ Caddx Vista HD Digital System - 309.00 €


HGLRC Veyron 3 HD 136mm F4 ZEUS 35A ESC 3 Inch 4S / 6S Cinewhoop FPV Racing Drone PNP BNF w/ Caddx Vista HD Digital System
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Specification: ( Manual)

Brand Name: HGLRC

Model: Veyron 3 HD

Item Name: 136mm F4 ZEUS 35A ESC 3 Inch 4S / 6S Cinewhoop Drone

Optional Voltage Version: 4S / 6S

Drone Wheelbase: 136mm

Net Weight: 267g ( TPU Camera Mount Excluded)

HGLRC Vryron 3 136mm Frame Kit

Wheelbase: 136mm; Bottom Plate:2mm

Standoff Height:25mm; Material: 3K Carbon Fiber

Weight:110.1g (TPU Mount excluded);

Support 16x16mm/20x20mm FC

HGLRC Zeus35 F4 FC AIO 35A BL_S 4in1 ESC

( More Details)

Input Voltage:3-6S; Installing Hole:20x20mm/M3

Dimensioms:40x32mm; Weight:9.8g


F411 Flight Controller

CPU:STM32F411 ; MPU:MPU6000 ; OSD: Support; BEC:5V/2A

BlackBox:16M; UARTS: 2; UART1 VTX; UART2 SBUS/iBUS/DSM/CRSF/R9MM


35A BLheli_S 4in1 ESC

Constant Current: 35A; Burst Current: 40A(10s); Current Sensor:Support

Forward 1408 3600KV 4S/ 2400KV 6S Motor

( More Details)

KV: 2400KV ( 6S Version) / 3600KV ( 4S Version)

Stator Diameter: 14mm; Stator Thickness :8mm

Wire type: 24AWG 80mm; Weight: about 16.7g

T3045 3X4.5 3 Inch 3-Blade PropellerQuantity: 3 CW & 3 CCW

Caddx Vista HD Digital System

( More Details)

Brand Name: Caddx; Model: Vista Kit; Operating Frequency: 5.725-5.850GHz

Transmitter Power(EIRP): FCC/SRRC/MIC: <30dBm, CE: <14dBm

Min. Latency (end-to-end): Low Latency Mode(720p 120fps): 21-28ms, High Quality Mode(720p 60fps): 30-40ms

Max. Transmission Distance: FCC/SRRC: 4km, CE: 0.7km

I/O Interface: USB-C,IPEX,3-in-1 Port,microSD card slot

Supported Flight Control System: F3,F4,F7

Operating Temperature Range: 32° to 104° F (0℃ ~40℃)

Input Power: 7.4-26.4V

DJI Camera Specifications:

Sensor: 1/3.2'' CMOS; Effective Pixels: 4M; Lens: 2.1mm,f/2.1; Shutter: Rolling shutter

FOV: 150° (D);122° (H);93° (V)

Recommend Lipo Battery

( NOT Included)

4S Version: 4S 800-1300mAh Lipo Battery w/ XT60 Plug

6S Version: 6S 550-850mAh Lipo Battery w/ XT60 Plug


Pacakge Included:

1x Veyron 3 Cinewhoop Frame Kit (TPU Camera Mount included)

1x F4 Zeus35 AIO Board

1x Caddx Vista HD Digital System Module

4x Forward 1408 Motor

3x T3045 Propeller CW

3x T3045 Propeller CCW

1x Hammer Antenna

2x Battery Strap

1x Optional Receiver (included in BNF version, PNP without Receiver)
