HGLRC XJB F428-Forward VTX Mini 20x20mm Stack F4 V2 Flight Controller & 28A BL_S ESC & 25/100/200/350mW VTX - 79.00 €

HGLRC XJB F428-Forward VTX Mini 20x20mm Stack F4 V2 Flight Controller & 28A BL_S ESC & 25/100/200/350mW VTX
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

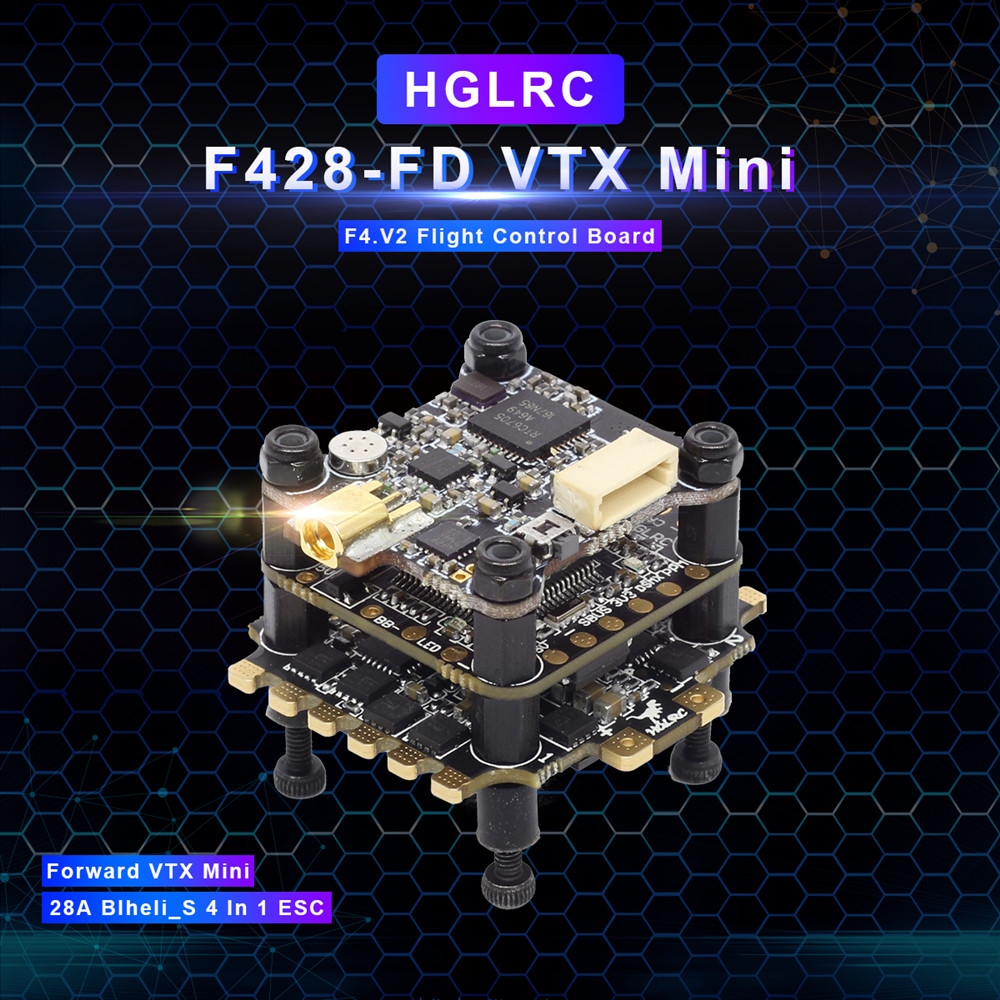

HGLRC XJB F428-Forward VTX Mini 20x20mm Stack F4 V2 FC & 28A BL_S ESC & 25/100/200/350mW VTX

Specificaiton:
Brand Name: HGLRC
Model: XJB F488-Forward VTX Mini
Item Name: 20x20mm F4 V2 FC & 28A ESC & VTX Stack
Weight: 15.1g
Application: for 65mm-250mm Frame Kit

F4 V2 Flight Control Board (D-Shot Version)
MPU: MPU6000-SPI
CPU: STM32F405RGT6, dual 8K.
Black Box: Flash 16M
Input Voltage: 2-4S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 25x25mm board, 20mm mounting holes (M2)
Support SBUS/PPM/DSMX receiver
Weight:3.7g

28A BLHeli_S 2-4S 4in1 ESC
Input Voltage: 2-4S Lipo battery
Constant Current: 28A
Peak Current: 35A
BEC Ouput: NO
Firmware: BLHELI_S firmware
Size: 27x27mm (main board)
32x32mm ( including pad)
Mounting Hole: 20x20mm, M2
Weight: 4.2g
CPU: SILABS EFM8BB2 48MHZ
MOS Tube: TOP QUALITY MOSFET
Support Damped Mode, Oneshot125/42, Multishot, Dshot150/300/600, forward and reverse
Forward VTX Mini FPV Transmitter
Output Power: PIT/25mW/100mW/200mW/350mW Switchable
Control Mode: BFOSD Control(RX)/Button
BAT: 7-26V, BEC 5V-1A,250mA----350mW
Video System: NTSC/PAL
Antenna: MMCX
Size: 24*27mm(L*W),Hole:20*20mm
Weight: 2.7g
Frequency and power control methods:
1.Button frequency control:
Short press once to change channel number CH (CH1-CH8) ;
Long press for 2 seconds and then short press to change frequency group FR (A-B-E-F-R-L)
2.Button power control:
Long press button for 6 seconds and then short press button to change power level PIT/25/100/200/ 350mw

Package Included:
1x HGLRC F4 V2 Flight Controller
1x HGLRC 28A 2-4S BLHeli_S 4 in 1 ESC
1x HGLRC Forward VTX Mini
1x MMCX to SMA Adapter Cable
1x bag of Screws
