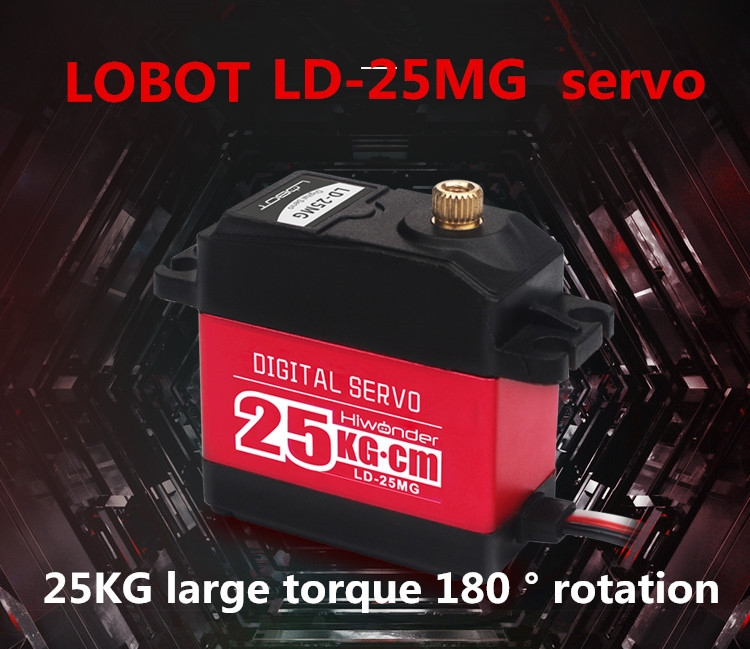

Feature:
25kg large torque.
Full metal gear significantly improves servoâs accuracy and extend its service time.
The aluminium case enhances the heat dissipation and ensures the servo motor can work properly.
Use high-precision and newly designed potentiometer. Accuracy and linearity have been greatly improved! Accurate movement can help you build up robots.
180-degree rotation. Controllable angle range from 0 to 180 degrees, excellent linearity, precise It can be rotated within 360 degrees when power off.
Specifications:
Weight: 68g
Dimension: 40*20*40.5mm
Speed: 0.2sec/60°(7.4V)
Torqueï¼25 kg·cm 7.4V
Working Voltage: 6-7.4V
No-Load Current: 100mA
Servo accuracy: 0.3 °
Rotation range: 0-180 °
Stall current: 2.4-3A
Control mode: PWM pulse width control
PWM pulse width range: 500-2500us
# Spline: 25T(6mm in diameter)
The servo wire: 30cm(11.8inch) in length
Package Contents:
1 x LD-25MG Digital servo
