Specification:
Brand name: Hobbywing
Item name: Xrotor F4 G3 Flight Controller & 60A 3-6S Blheli_32 ESC Stack

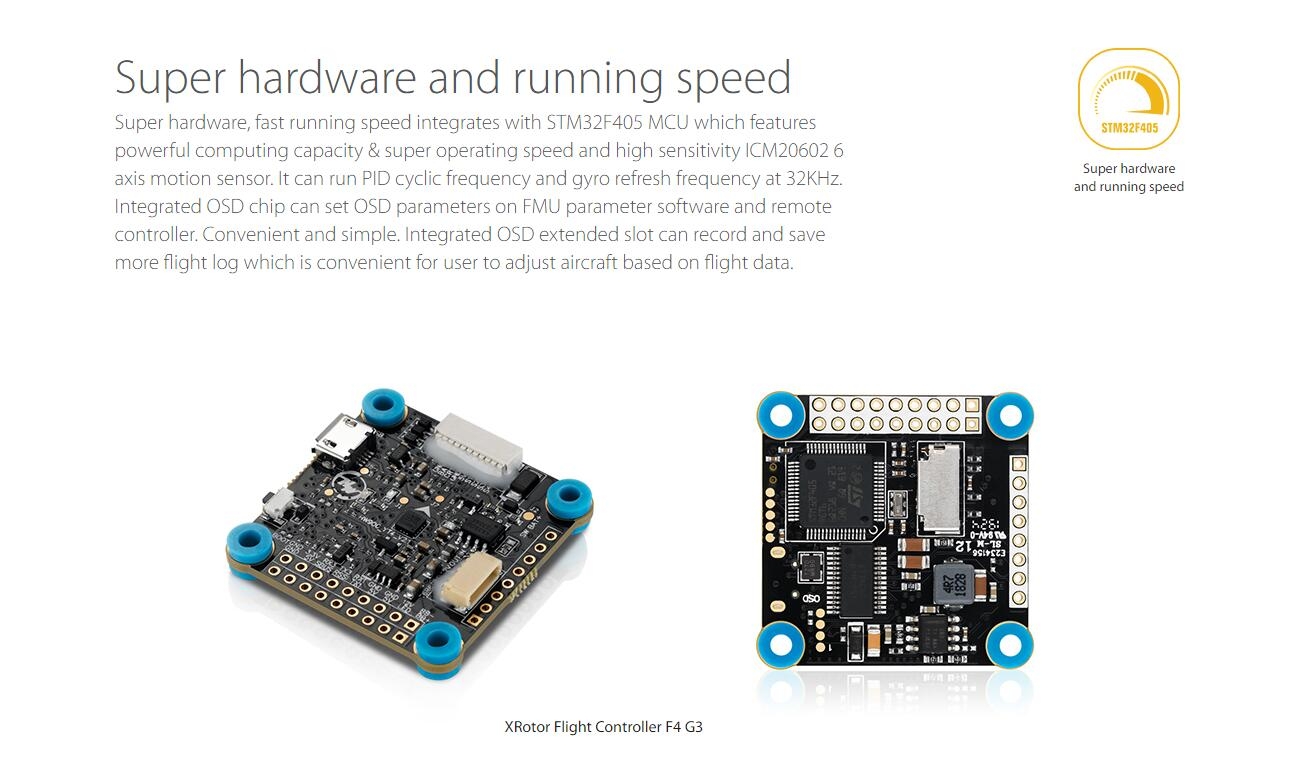

Xrotor F4 G3 Flight Controller
Firmware: OMINIBUSF4SD
FC Programming: Supported
Programming via: Betaflight/Cleanfliht-configurator or Others
Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300/600/1200, Proshot1000 and etc.
Compatible with (Trabsmitter): PPM, Spektrum, SBUS, SYMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL, and etc.
OSD: Built-in
Voltage Monitoring: Supported
Current Monitoring: Supported
External Buzzer: Supported
LED Control: Supported
BEC: 12V@2A
USB Port: MicroUSB
Size: 36x36mm
Weight: 6g
Appliications: 130-300mm FPV Racing Drone
60A 3-6S Blheli_32 Brushless ESC
Cont. Current: 60A
Peak Current: 80A
BEC: [email protected]
LiPo Cells: 3-6S
Firmware: Hobbywing_XRotor_BLHeli-32 Firmware
Weight: 15g
Size: 52x42x6.6mm
Mounting Hole: 30.5x30.5mm
Package Included:
1 x Xrotor F4 G3 Flight Controller
1 x 60A 3-6S Blheli_32 4 in 1 Brushless ESC
