Holybro H-RTK M8P Rover Lite UBLOX M8P GPS GLONASS Module compatible for PIXHAWK4 Flight Controller RC Drone FPV Racing Multicopter Multirotor - 199.00 €

Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)

Free shipping aviable, Registered postage from 25 €

Video

Specification:

Brand: Holybro

Item Name: H-RTK M8P Rover Lite

GNSS	GPS L1 GLONASS L1 BeiDou L1
Antennas Peak Gain(MAX)	1.5dBi
LNA Gain (typical)	20.5Â±1dB
TIME-TO-FIRST Fix	Cold Start: â¤ 35s Hot Start: â¤ 1s
RTK-SurveIn-Time	N/A
Data & Update Rate	RAW: 10Hz MAX RTK: 5Hz MAX
Port	26cm Pixhawk4 compatible GH1.25 10-pin cable included
Antenna Connection Type	N/A
Baud Rate	38400 5Hz(default) can be set
Working Voltage	4.75V~5.25V
Dimensions	Diameter:50mm Height:14.5mm
Weight	32g

User Manual, DOWNLOAD

Description:

This model is lower cost, light weight, and has high performance, It can meet the needs of general DIY users. Due to the lower cost, this model can also greatly minimize the cost of large swarm drone projects such as swarm light shows. It has a integrated safety switch and a tri-colored LED indicator, and it is compatible with the open source Pixhawk series flight controller.

Package Included:

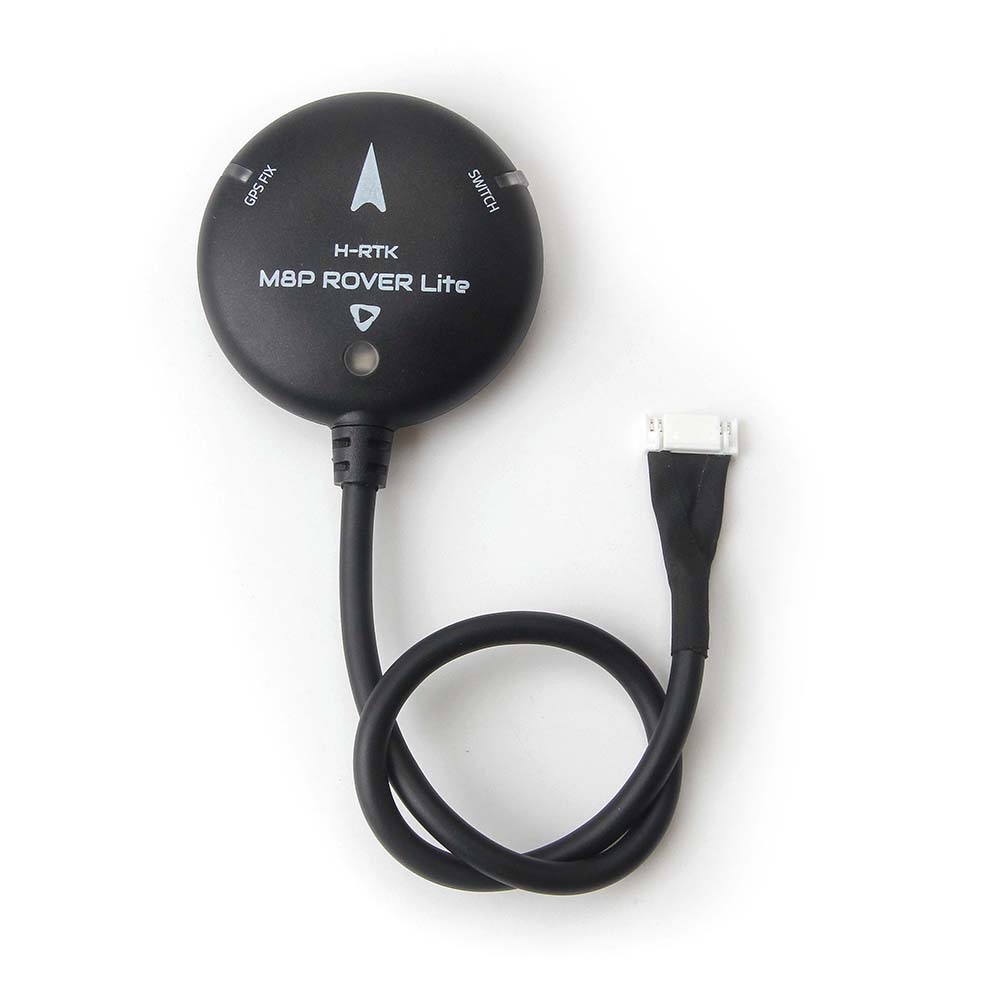

1 X Holybro H-RTK M8P Rover Lite GPS Module
