Specification:
Kakute F7 AIO Flight Controller:
Brand name: Holybro
Item name: kakute F7 AIO
MCU: STM32F745 32-bit processor
IMU: ICM20689 (SPI)
Barometer: BMP280
Current Sensor: Approximately 130 amps maximum measurable value
USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
6 hardware UARTS (UART1,2,3,4,6,7)
All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work on any UART without “uninvert hack”.
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
TF card for Blackbox logging
Dimensions: 35x48x7mm (includes foam-mounted gyro board in height)
Mounting Holes: Standard 30.5mm square to center of holes
Weight: 11g
Features:
Features:
• Supports Betaflight, Butterflight, and Cleanflight.
• Betaflight OSD. Change PIDs, adjust common configuration parameters, and change video transmitter channel and power level,
all using your transmitter sticks and goggles.
all using your transmitter sticks and goggles.
• Soft-mounting built in. The IMU (“gyro”) chip on this board is mounted on vibration-isolating foam. This means that there is no need
to soft-mount the board itself.
to soft-mount the board itself.
• High-performance / low-noise / high sensitivity IMU. ICM20689 with 6-axis gyro and accelerometer. Can run at up to 32 kHz sampling rate.
• Ready for autonomous flight: Integrated BMP280 barometer and SCL/SDA pads for use with external GPS/magnetometer units.
• 2 oz. copper PCB allows up to 120A maximum continuous current.
• Dedicated bootloader button for easy firmware flashing.
• Low-profile design fits into even very compact frames.
• Input voltage 7v to 42v. Power the board directly from the flight pack, up to 6S (on “B+” pad only).
• Automatic voltage monitoring. No need to run a separate vBat wire for voltage monitoring; the Kakute F7 AIO monitors voltage directly
from the battery power lead.
from the battery power lead.
• Filtered voltage output for clean, noise-free video. On-board regulators output 5v at up to 2 amps and 3.3v at up to 200 mA to power
peripherals such as receiver, video transmitter, FPV camera, or LED strip.
peripherals such as receiver, video transmitter, FPV camera, or LED strip.
• Supports BLHeli pass-through for easy ESC upgrade and configuration.
Tekko32 35A ESC:
Brand name: Holybro
Item name: Tekko32 35A ESC
Lipo input: 2-6S
Size: 15*30mm
Weight: 5.2g
Features:
32bit compatible ESC (Blheli_32)
Dshot1200 up to 32kHz
Incredibly small size
Very low weight
Auto timing feature
On-Board RGB LED
Build in current sensor
Smooth response
Compatible to Betaflight F3/F4 flight controller

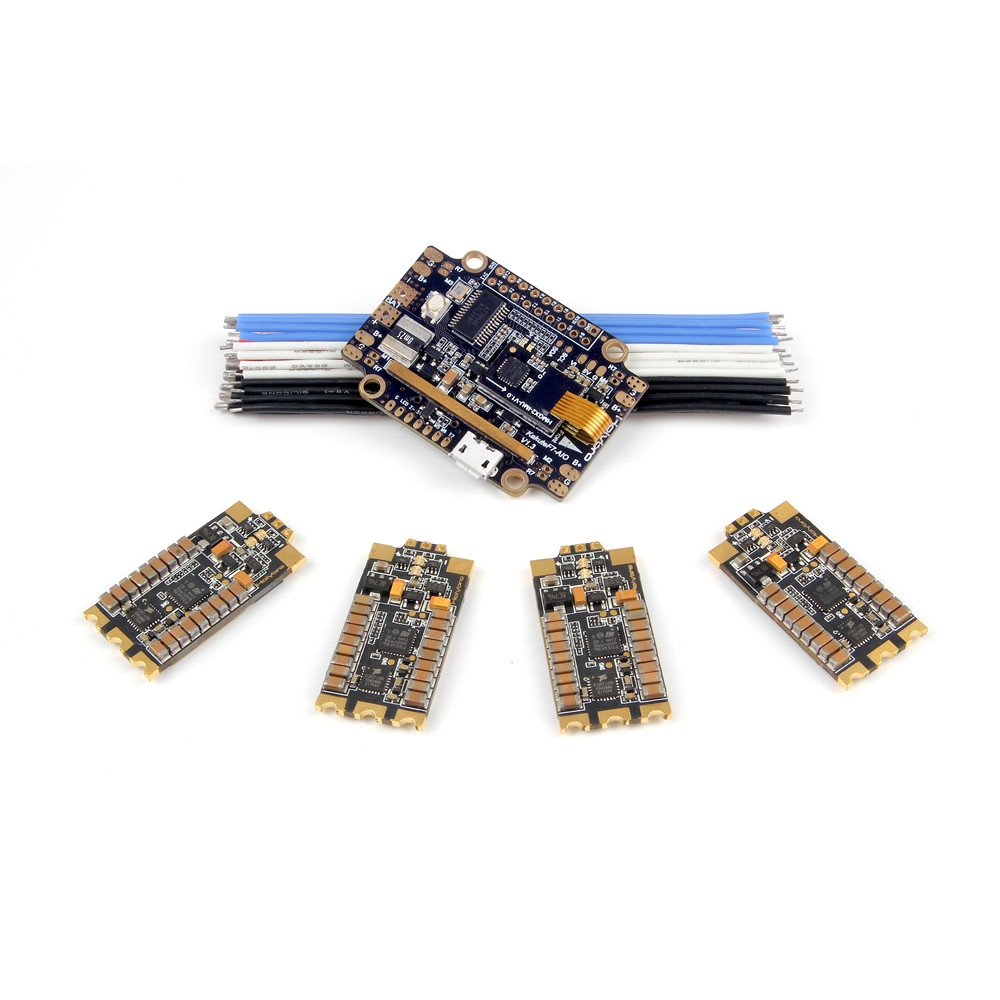

Package included:
1x Kakute F7 AIO flight controller
2x vibration-isolating foam
1x FFC
4x Tekko32 35A ESC
1x set of the wires
