Specification:
Brand Name: Holybro

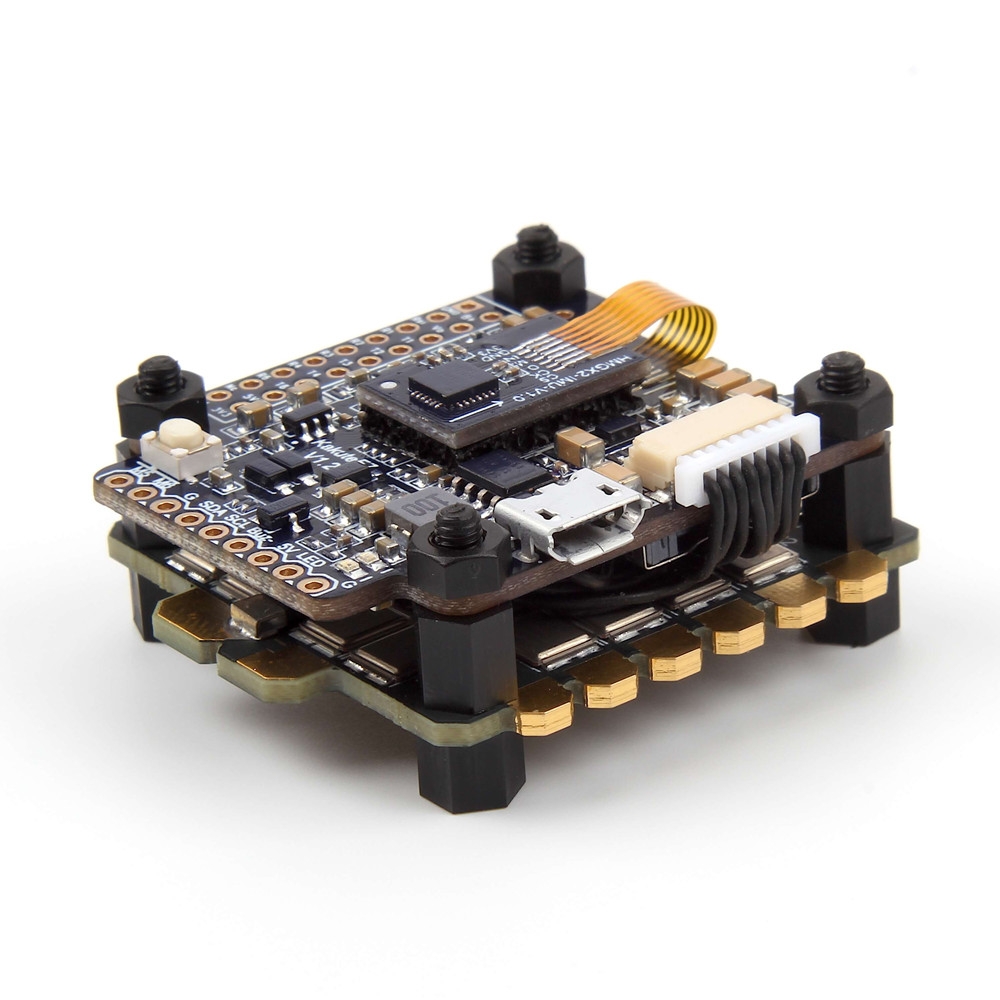

Item Name: F7 Flight Controller & 65A 4 in 1 ESC Stack
Kakute F7 Flight Controller( Manual )
Brand name: Holybro
Item name: Kakute F7
MCU: STM32F745 32-bit processor
IMU: ICM20689 (SPI)
Barometer: BMP280
USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART) 6 hardware UARTS (UART1,2,3,4,6,7)
All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work on any UART without “uninvert hack”.
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
TF card for Blackbox logging
Dimensions: 35x41x7mm (includes foam-mounted gyro board in height)
Mounting Holes: Standard 30.5mm square to center of holes
Weight: 9g
Features:
• Supports Betaflight, Butterflight, and Cleanflight.
• Betaflight OSD. Change PIDs, adjust common configuration parameters, and change video transmitter channel and
power level, all using your transmitter sticks and goggles.
• Soft-mounting built in. The IMU (“gyro”) chip on this board is mounted on vibration-isolating foam. This means that
there is no need to soft-mount the board itself.
• High-performance / low-noise / high sensitivity IMU. ICM20689 with 6-axis gyro and accelerometer. Can run at up
to 32 kHz sampling rate.
• Ready for autonomous flight: Integrated BMP280 barometer and SCL/SDA pads for use with external GPS/magnetometer units.
• 2 oz. copper PCB allows up to 120A maximum continuous current.
• Dedicated bootloader button for easy firmware flashing.
• Low-profile design fits into even very compact frames.
• Input voltage 7v to 42v. Power the board directly from the flight pack, up to 6S (on “B+” pad only).
• Automatic voltage monitoring. No need to run a separate vBat wire for voltage monitoring; the Kakute F7 monitors voltage
directly from the power supply.
• Filtered voltage output for clean, noise-free video. On-board regulators output 5v at up to 2 amps and 3.3v at up to 200 mA
to power peripherals such as receiver, video transmitter, FPV camera, or LED strip.
• Supports BLHeli pass-through for easy ESC upgrade and configuration.
Tekko32F3 Metal 4in1 ESC
Brand Name: Holybro
Model: Tekko32F3 Metal
Item Name: 65A BL_32 32Bit DShot1200 4 in 1 ESC
Con. Current: 65A
Peak Current: 80A
Input Voltage: 4-6S Lipo Support
Ext. cap needed for 6s (470uf 35v for 6s usage)
- F3(M4 Core) MCU, Runs BLHELI32 firmware, the MCU works at 108Mhz
Size: 42x42mm
Mounting Hole: 30.5x30.5mm
Weight: 12g
Notice:
1. The air flow is very import if you want to run this 4in1 in high current.
2. The input cable(from lipo to 4in1), should be good soldered, and at least 12AWG
3. Please use non-metallic isolation standoffs (marked in red in the diagram above) for the mounting holes on the ESC.
Because mounting holes and motor pad are connected.
Features:
- The 4in1 has onboard analog current sensor, and TLM function(then no current reading over TLM)
- Using metal case mosfet for better Heat dissipation
- BLheli_32 firmware, support Oneshot, Multishot, Dshot150, DShot300, DShot600 and DShot1200
Package Included:
1x Kakute F7 flight controller
Package Included:
1x Kakute F7 flight controller
1x Tekko32 F3 Metal 4in1 ESC
1x 470uF 35V Electrolytic Capacitor
1x 8pin to 8pin 1mm pitch 65mm Cable
1x 8pin to 8pin 1mm pitch 25mm Cable
