| Item | Specification | Feature |

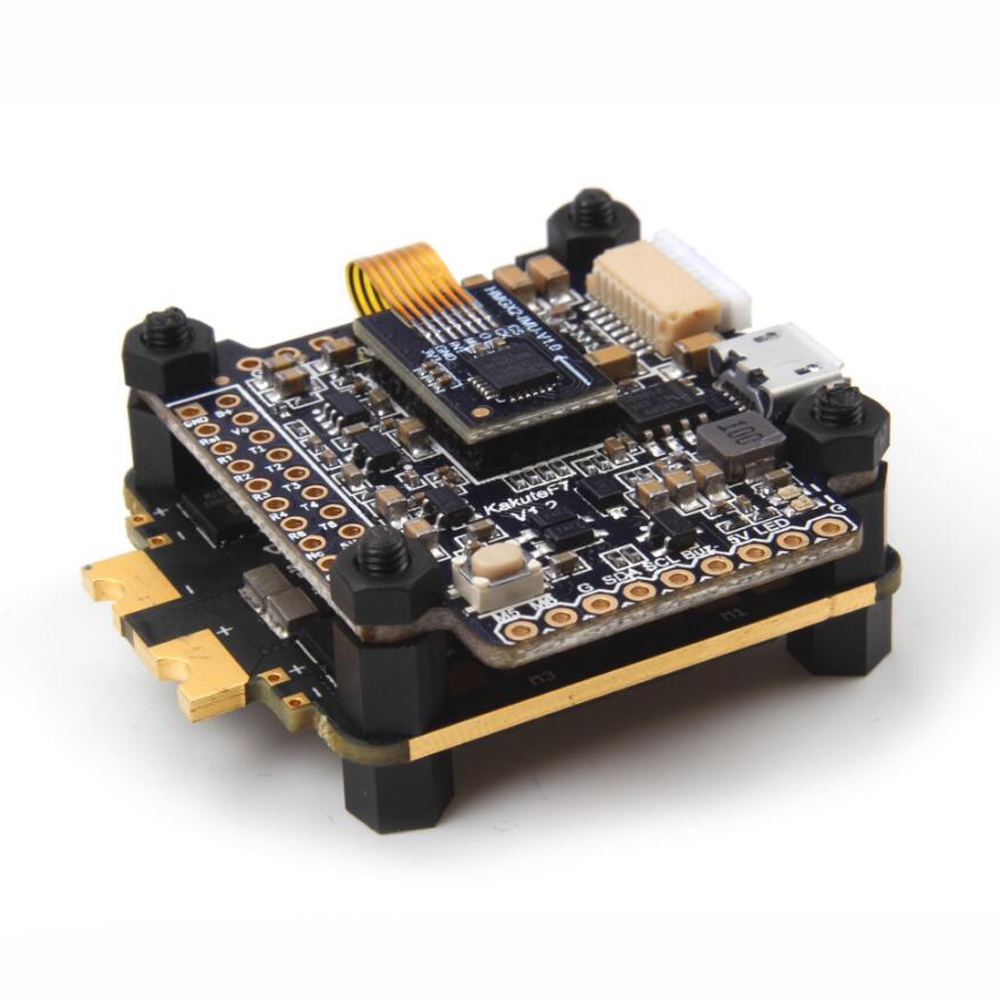

Kakute F7 |
• MCU: STM32F745 32-bit processor • IMU: ICM20689 (SPI) • Barometer: BMP280 • Current Sensor: Approximately 130 amps maximum measurable value • USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART) • 6 hardware UARTS (UART1,2,3,4,6,7) • All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work on any UART without “uninvert hack”. • Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported. • TF card for Blackbox logging • Dimensions: 35x41x7mm (includes foam-mounted gy ro board in height) • Mounting Holes: Standard 30.5mm square to center of holes • Weight: 9g |
• Supports Betaflight, Butterflight, and Cleanflight. • Betaflight OSD. Change PIDs, adjust common configuration parameters, and change video transmitter channel and power level, all using your transmitter sticks and goggles. • Soft-mounting built in. The IMU (“gy ro”) chip on this board is mounted on vibration-isolating foam. This means that there is no need to soft-mount the board itself. • High-performance / low-noise / high sensitivity IMU. ICM20689 with 6-axis gy ro and accelerometer. Can run at up to 32 kHz sampling rate. • Ready for autonomous flight: Integrated BMP280 barometer and SCL/SDA pads for use with external GPS/magnetometer units. • 2 oz. copper PCB allows up to 120A maximum continuous current. • Dedicated bootloader button for easy firmware flashing. • Low-pro file design fits into even very compact frames. • Input voltage 7v to 42v. Power the board directly from the flight pack, up to 6S (on “B+” pad only). • Automatic voltage monitoring. No need to run a separate vBat wire for voltage monitoring; the Kakute F7 monitors voltage directly from the power supply. • Filtered voltage output for clean, noise-free video. On-board regulators output 5v at up to 2 amps and 3.3v at up to 200 mA to power peripherals such as receiver, video transmitter, FPV camera, or LED strip. • Supports BLHeli pass-through for easy ESC upgrade and configuration. |
Tekko32 F3 4in1 40A ESC |
|
|
Manual:
http://www.holybro.com/manual/Holybro_Kakute_F7_Manual.pdf
Package Included:
1 x Kakute F7 Flight Controller
1 x Tekko32 F3 4in1 40A ESC
1 x Electrolytic capacito: 1000uF 35v
1 x 8pin to 8pin 1mm pitch 65mm cable
1 x 8pin to 8pin 1mm pitch 25mm cable
