Introduction:
CH4 is a smart charger designed by HTRC, compatible with almost all type of rechargeable batteries like Li-ion/IMR/INR/ICR/Ni-MH/Ni-Cd/LiFePO4 batteries, as well as a high grade performance, With a large digital LCD display, easily to understand battery charging parameters and processes.
CH4 has different charging features and modes according to different type battery charging. It use standard Li-ion battery charging mode when work with Li-ion/IMR/INR/ICR/LiFePO4 batteries; useï¹£ÎV full charge mode for Ni-MH, Ni-Cd batteries charging process.

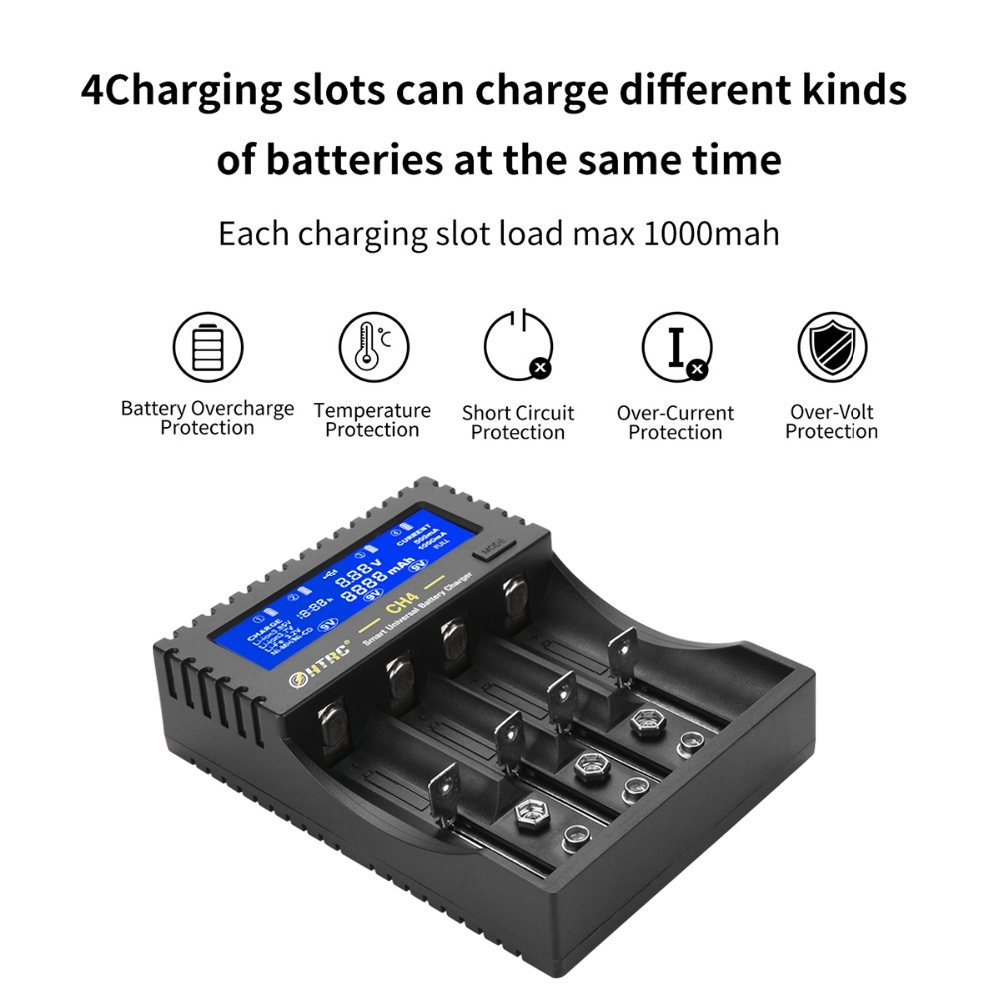

4charging slots can working for different type batteries in power charging time, each charging slot Provides 500mA and 1000mA charge current, 3 charging slots 9V(6F22) provides 100mA charge current
Features:
Compatible with batteries of Li-ion(4.2v/4.35v)9V(6F22)LiFePO4(3.6v),Ni-MH/Ni-Cd(1.48v) 9V(6F22)
Compatible with all different type of cylindrical rechargeable lithium battery
Up to1000mA charging speed I a single slot
High precision Calibration of voltage source
Automatically stops charging upon charging completion
Reverse polarity protection and short circuit prevention
Automatically detects battery power status and displays charging progress
Detect battery capacity in charger
Each battery slot controls and charges independently
Support small capacity battery charging
Support for lithium battery repair function
Compatible with DCType-CãMicro Charging function Made of fire
Designed by optimal heat dissipation
Excellent circuit desig
Parameters:
Input voltage :Type-C/MicroDC 5V 2A
Output Voltage :4.35±0.1%/4.2V±0.1%/1.48V±0.1% 9V(6F22)±0.1%
Output Current: Li-ion:1000mA*2(High)/500mA*4(Low)
Ni-MH/Ni-Cd:1000mA*2(High)/500mA*4(Low)
9V(6F22):100mA*3
Compatible with:
Li-ion/IMR/INR/ICR/LiFePO4:
10340,10350,10440,10500,12340,12500,12650,13450,13500,13650,14350,14430,14500,14650,16500,16340(RCR123), 16650, 17350,17500,17650,17670,18350,18490,18500,18650,18700,20700,22500,22650,25500,26500,26650 9V(6F22)
NI-MH/Ni-Cd: AA, AAA, AAAA, C 9V(6F22)
Size: 126.6mm*97mm*33mm(L*W*H)
Weight:180g(No battery & cable included)
Package included:
1* Battery charger
1* USB cable
