Dear Customers,
The first video above will introduce how to bind HUBSAN CARE Refresh. HUBSAN CARE Refresh can be used by binding the SN Code within 48 hours of activation.
Specifications:
Aircraft | Dimensions | Unfolded: 202.54x161.2x61.6mm Folded: 137x88x61.6mm Folded with Propeller: 137x94x61.6mm |
| Diagonal Wheelbase | 220mm | |
| Color | Gray | |
| Takeoff Weight (with battery) | Standard: 249g (Europe and America), 200g (Japan) | |
| Hover Accuracy | Vertical: ± 0.1m (when the visual positioning is working normally) ± 0.5m (when GPS is working normally) Level: ± 0.3m (when the visual positioning is working normally) ± 1.5m (when GPS is working normally) | |
| Max Rotational Speed | 130°/s (S), 60°/s (N), 25°/s (F) | |
| Max Ascension Speed | 3m/s (N), 4m/s (S), 2m/s (F) | |
| Max Descent Speed | 3m/s (N), 3.5m/s (S), 1.5m/s (F) | |
| Maximum Horizontal Flying Speed (Windless at Sea Level) | 10m/s (N) 16m/s (S) | |
| Maximum Take-off Altitude | 4000m | |
| Max Wind Speed Resistance | Level-5 (8.5-10.5m/s) | |
| Max Tilt Angle | 40°(S), 25°(N), 15°(F) | |
| Positioning | GPS + GLONASS | |
| Max Flying Time | 40 minutes (measured while flying at 25km/h in windless conditions) | |
Power System | Maximum Working Current | 16A |
| Propeller | Model: Foldable & Diameter 125.6mm Color: Black | |
| Motor | Outward Rotation Brushless Motor 1503, KV2820 | |
| ESC | Digital ESC Brushless 20A x 4 | |
Camera | CMOS Image Sensor | 1/1.3inch CMOS Sensor 2.4um Mixed Large Pixel 48 million Effective Pixels |
| Lens Specifications | FOV 84° Aperture f/1.85 EFL: 6.8mm Focus Point: 0.5m to â Distortion: <1.5% | |
| Maximum Photo Size | 8000 x 6000 | |
| Maximum Video Encoding | 4K@30fps | |
| Video Resolution | 4K: 3840 x 2160 @ 30fps 2.7K: 2720 x 1530 @ 30/60fps FHD: 1920 x 1080 @ 30/60fps | |
| Electronic Shutter Speed | 3-1/8000s | |
| Video Bitrate | 100Mbps-200Mbps | |
| Supported File Systems | FAT32 (â¤32 GB) exFAT (>32 GB) | |
| Photo Format | JPEG | |
| Video Format | MP4 (H.265/HEVC) | |
| Firmware Upgrade | APP Online Upgrade | |
| Supported SD Cards | MicroSD Card, U3 or Class10 above 16G/32G/64G/128G | |
Image Transmission | Image Transmission System | SyncLeas 3 |
| Working Band | 5.725-5.850 GHz | |
| Max Transmission Distance | FCC: 10KM CE: 6KM; SRRC: 6KM | |
| Average Vit Rate | 20 Mbps | |
| Transmission Delay | <=200ms | |
| Antenna | Built-in Dual Antenna | |
| Transmission Power (EIRP) | FCC: <=26dbm; CE: <=20dbm; SRRC: <=20dbm | |
| Max Video Bitrate | 40 Mbps | |
| Remote Control | HT018Y | |
Gimbal | Gimbal | HY817D |
| Stabilization | 3-Axis (tilt, roll, pan) | |
| Degree of Freedom | Triaxial | |
| Max Pitch Speed | 120°/s | |
| Mechanical Range | Pitch: -120° to 45° Roll: ± 35° Yaw: ± 35° | |
| Damping Method | Three-dimensional Shock Absorption | |
Flight Controller | FC Version | Self-developed Third-generation Flight Controller |
| Basic Flight Mode | Sports Mode / Normal Mode / Movie Mode | |
| Altitude Hold Mode | Tof, Barometer | |
| Fixed-point | Visual Optical Flow, GPS | |
| Unlock/Lock | Outer "Eight" Unlock/Lock | |
| One Key Take-off/Landing | APP Supportedï¼Remote Control Unsupported | |
| Headless Mode | â | |
| Out of Control Protection | â | |
| Low Battery Return | â | |
Home Visual Recognition (search for drone apron) | â | |
| Visual Tracking | Third-generation Tracking Technology (ATVT 3.0) | |
| Waypoint Flight | â | |
| Flying Around | â | |
| Ray Flight | â | |
| Time-lapse Photography | TBD | |
| Motor Stall Protection | â | |
| Firmware Upgrade | APP Online Upgrade | |
Sensing System | Forward | Binocular Visual Perception,Precision Measurement Distance <12M Fluctuate <0.5M, Perception Distance >15M |
| Backward | Binocular Visual Perception,Precision Measurement Distance <12M Fluctuate <0.5M, Perception Distance >15M | |
| Downward | Monocular Optical Flow, Tof Ranging Effective Ranging Range 0.3-5Mï¼Fluctuate <0.1M | |
Remote Control | Color | Gary |
| Operating Frequency | 5.725-5.850 GHz | |
| Display | Highlight LED Display | |
| Operating Environment Temperature | -10 Deg.C- 60 Deg.C | |
| Maximum Effective Signal Distance | 5.8Ghz FCC: 10KM CE: 6KM; SRRC: 6KM | |
| Equivalent Isotropic Radiated Power | FCC: <=26dBm; CE: <=20dBm; SRRC: <=20dBm | |
| Built-In Battery | 3350mAh | |
| Mode | Mode 2 (Left Hand Throttle) | |
| Buzzer | Support | |
| Support Mobile System | Android, iOS | |
| Working Time | 2.5h (Normal Flight Time) | |
| Rocker Back to Center Accuracy | 4% | |
| Interfaces Type | Lighting / Micro USB / Type-C | |
Battery | Battery Type | Lithium Battery |
| Capacity | 3000 mAh | |
| Standard Voltage | 3.6x2=7.2V | |
| Charging Limit Voltage | 7.25V | |
| Discharge Rate | 8C | |
| Charging Time | 90 minutes | |
| Weight | 101.84g | |
| Working Environment Temperature | 0 Deg.C- 50 Deg.C | |
| Charging Environment Temperature | 0 Deg.C- 40 Deg.C | |
| Smart Battery Balance | â | |
| Intelligent Power Management | â | |
| Automatic Discharge Protection | â | |
APP | APP Name | X-Hubsan 2 |
Mobile Device | Requirements | iOS 10.0 or higher Android 6.0 Or higher |
Features:
- 249gm Lightweight & Foldable Design- Front/Back/Down 3-Direction Obstacle Avoidance
- Up to 40 Minutes of Flight Time
- 10KM Remote Control Distance
- 3-Axis Gimbal with 4K/30fps Video
- 1/1.3â CMOS sensor
- f/1.85 super large aperture
- Hubsan Syncleas.3.0 1080P/30fps 20 Mbps 10 KM
- Up to 6x Zoom
- Optical-flow night light
- ATVT 3.0 Al Tracking Mode
- Enhanced HDR Photos
- Built-in intelligent flight battery
Package Included:

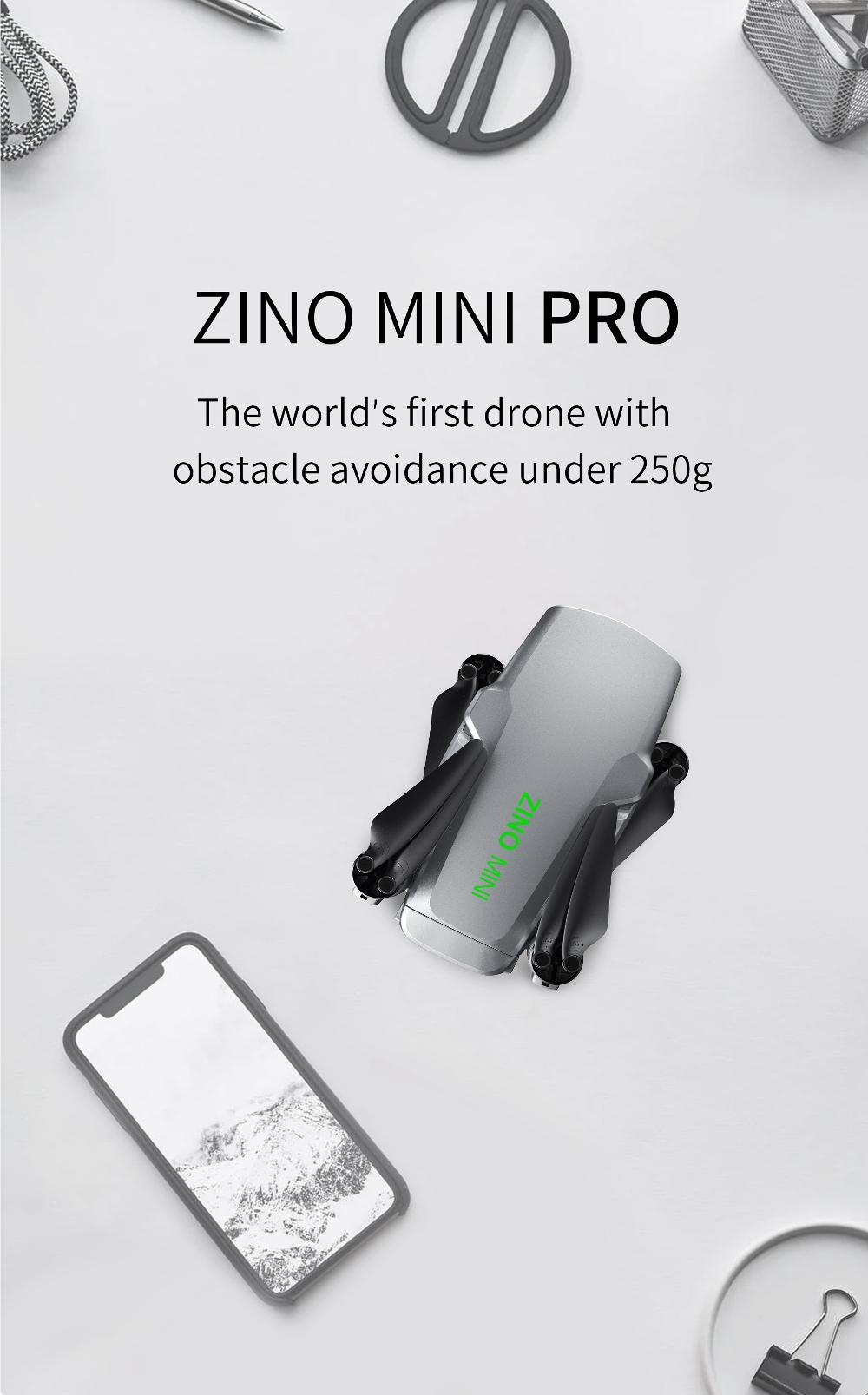

1 x ZINO Mini PRO RC Drone1 x Remote Control
1 x Battery
2 x Spare Blade
2 x Blade Screw
1 x Intelligent Charger
1 x Micro-USB Cable
1 x Micro-USB RC Cable
1 x USB Type-C RC Cable
1 x RC Cable for iPhones
1 x Screwdriver
1 x English Manual
