Notice: ALL Version don't include TPU Camera Mount, Battery.
Specification:
Brand Name: iFlight
Model: Cidora SL5-E

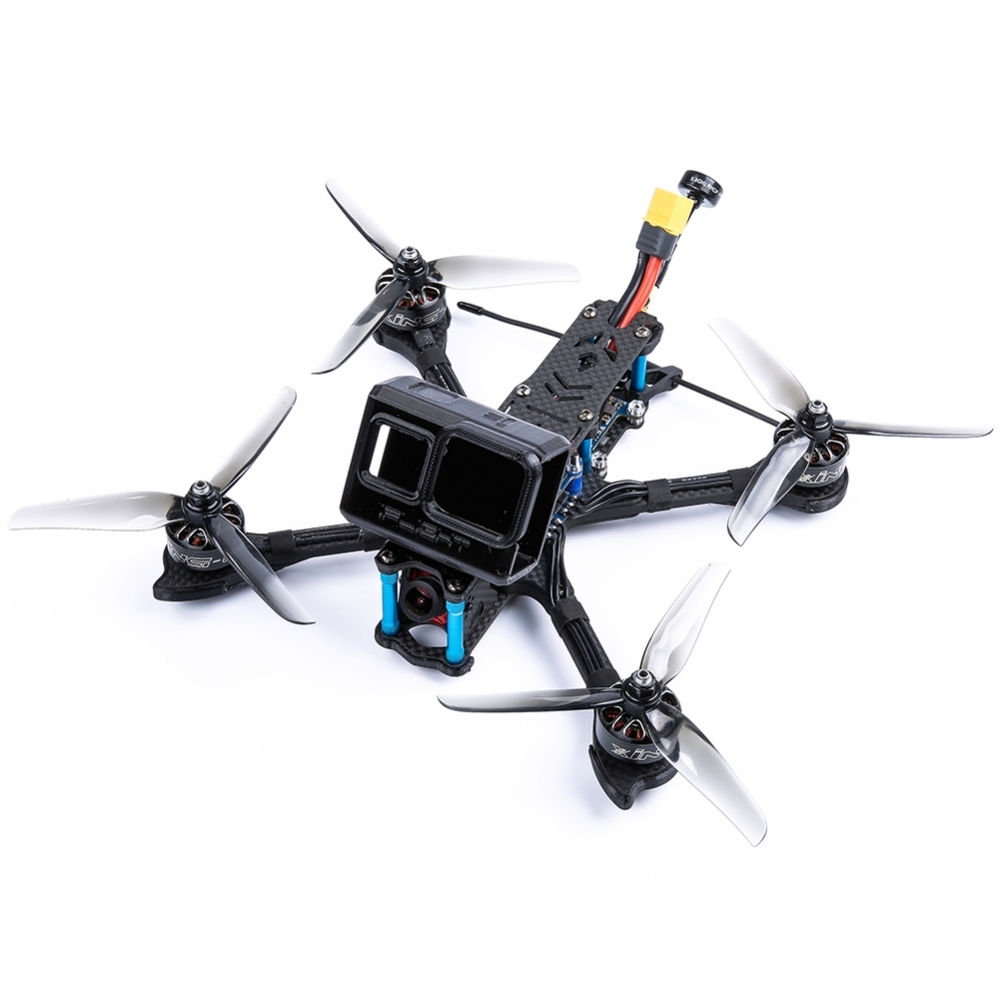

Item Name: 215mm SucceX-E F4 2207 2450KV 4S FPV Racing Drone
Frame Wheelbase: 215mm
Weight: 384.2 (without battery & receiver )
| SucceX-E F4 Flight Controller |
MCU: STM32F405
IMU: MPU6000
OSD: AT7456E
Blackbox: 8MB
4X Uarts(1 2 3 6)
8X Dshot/Proshot/Oneshot output
8X individual ESC power/ signal pads
1X Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX
Smart audio & Tramp VTX protocol: YES(IRC Tramp)
WS2812 led Strip: YES
Baro: No
Beeper: YES
PDB Specifications
Input: 2-8S(50V)
BEC: 5V/3A cont
FC Firmware
Betaflight
Target: STM32F405
FC: IFRC/IFF4_TWIN_G(STM32F405)
Physical
Mounting: 30.5*30.5mm, φ4mm with Grommets φ3mm
Dimensions: 36*36mm
Weight: 7.6g
|
| SucceX-E 45A 4in1 ESC |
- Dimension: 40*43mm
- Mounting Holes: 30.5*30.5mm/Φ3mm
- Weight:14.4g
- Supports 2-6S Lipo input
- STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware
- Current sensor: No
- BEC: No
- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
- Target: G-H-30 BLS 16.7
|
| 5.8G 0/25/100/200/400/600mW VTX |
Brand Name: iFlight
Input voltage: 5V
Channel: 48
Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 400mW/ 500mW
|
| XING-E 2207 2450KV 4S Motor |
Brand Name: iFlight Model: XING-E 2207 KV: 2450KV |
| Nazgul 5140 3-Blade Propelelr |
Brand Name: iFlight Model: Nazgul 5140
Blades: 3 blades
Material: polycarbonate
Mounting: 5mm center hole
Weight of Single Prop: 4g
Color: Transparent Grey
Quantity: 2 CW & 2 CCW |
| Caddx Ratel 1200TVL Camera |
Brand Name: Caddx
Item Name: Ratel
Color: Red
Lens: 2.1mm
Image Sensor: 1/1.8" Inch starlight HDR sensor
Horizontal Resolution: 1200TVL
FOV: 180 Degree
Min. Latency: 8ms
TV System: NTSC & PAL (changeable)
Image: 16:9 & 4:3 (changeable)
WDR: Super WDR (HDR)
Min. Illumination: Starlight
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio: >60dB (AGC OFF)
Video Output: CVBS
Camera OSD: Separate OSD
DNR: 3-DNR
Language: ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN
Day/Night: Auto/Color/B&W/EXT
Dimensions: 19mm*19mm*19mm
Wide Power Input: DC 5-40V
Work Temperature: -20â~+60â
Work Humidity: 20%~80%
Weight: 8g (N.W.)/ 40.5g (G.W.)
|
Package Included:
1x iFlight Cidora SL5-E 215mm FPV Drone
