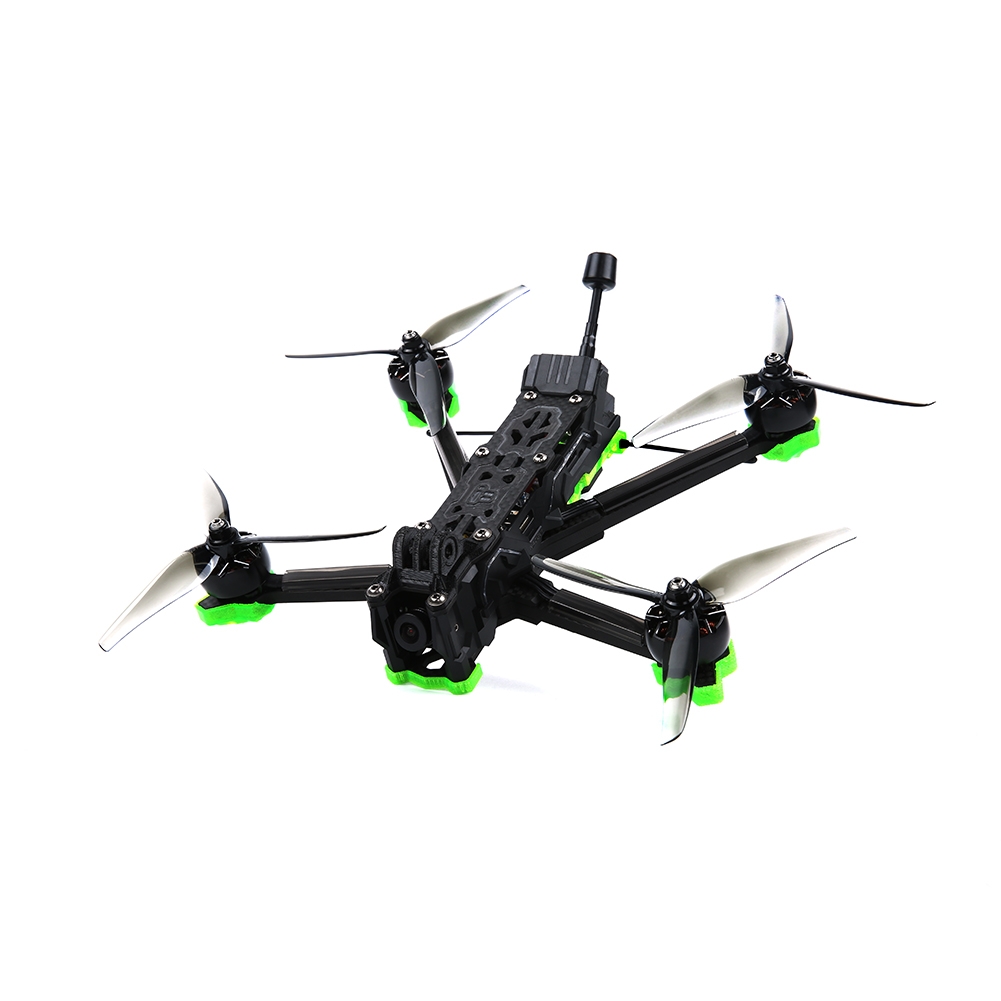

IFlight Nazgul5 Evoque F5 F5D DeadCat GPS Version HD / Analog 4S / 6S 5 Inch FPV Racing Drone - 389.00 €


IFlight Nazgul5 Evoque F5 F5D DeadCat GPS Version HD / Analog 4S / 6S 5 Inch FPV Racing Drone
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Note:
GPS included

November 2021:HD version :SucceX Mini F7 TwinG flight controller changed to BLITZ Mini F7 Flight Controller and BLITZ Mini E55 4-IN-1 ESC.


PRODUCT DESCRIPTION

The Secret Of Ultimate Performance Is Passion

That was the slogan for our newest approach to creating this piece of art! Fully protected electronics, fully illuminated, coupled with all the latest and greatest electronics we can offer. Months of engineering went into this BNF and all the lessons learned before, making sure that beginners, as well as experienced pilots, would fully enjoy using the new Nazgul Evoque from the first second they use it.

Lightweight Side Panels - Keep Your Rig Clean

Ever felt like a lawnmower cutting through the grass in your early days, props cutting and throwing wet grass all over and inside your flight stack? Well... These days are over! The new side panels will not only protect from wetness but also protect the internals from any strikes hitting off little components from your flight controller.

Secured Integrated XT60 Battery Plug - As Safe, It Can Be

Dangling battery plugs will ALWAYS find a way in your props, there's always that one time you forgot to secure it properly and almost cut off the cable while flying. There was only one way to get rid of that and we think we might have found a solution. The integrated XT60 connector on the back lets you securely plug in your battery leading all cables away from your props.

High-Performance Electronics - F7 55A Power Stack

Our SucceX Mini F7 TwinG flight control with Gyro Fusion technology, modern USB type-C plug, 32MB flash for every tuning session, and 5 UARTs for whatever equipment you might possibly wanna use. Power from the gods with our new SucceX Mini 55A ESC packed with better heat-dissipating Mosfets and a whole bunch of SMD capacitors to filter out possible motor noise, besides the pre-soldered directly installed Capacitor right next to your battery leads.

XING2 Performance Motors - The Best Motors Just Got Better

7075 aluminum bell, 5mm titanium alloy shaft, NSK durable bearings, Center slotted magnets for better response, and lower air gaps for a higher magnetic flux with increased performance and efficiency. Not to mention the typical XING damping ring between the bell and bearing to increase durability and smoothen out your flights.

Illumination - Let It Be Green

360-degree illumination for day and night. Maybe the prettiest BNF out there but also a practical one. The bottom light indicates battery voltage, a quick check gives you a hint of the voltage still remaining; Never lift off with an empty battery again. Installed LED wires in the side panels and the bottom of the arms are also illuminated and gives you some style at the next night's race.

Digital HD Experience - Caddx Polar

Equipped with the DJI Digital FPV system with 50mBit transmission for 720P video feed on your DJI FPV Goggles and range you've never expected with your old analog VTX. We are using the new CaddX Vista Polar HD system, installed in the back of your quad. The Polar camera offers better image quality than other CaddX cams. Better low light performance and more detailed shadows. In daylight similar to the Nebula Pro with improved dynamic range.

SucceX Force 600mW - Analog Reliable Power
Equipped with our latest 600mW Mini VTX to go far. Stable power output and fast frequency lock without interfering with other pilots when powering up. VTX telemetry built-in as well as electrical interference filters for whatever noise that might get through and an MMCX antenna connector that doesn't hop off in wild crashes.

Specifications:
Brand: iFlight
Item Name: Nazgul5 Evoque F5 F5D HD/Analog 4S / 6S 5-inch FPV Racing Drone

Nazgul5 Evoque F5D HD

Total Dimensions: 136*190mm (body dimension)

Bottom to top distance: 28mm

Arm Thickness: 6mm

Bottom plate thickness: 3mm

Top plate thickness: 3mm

Upper(middle) plate thickness: 3mm

FC // SucceX-D Mini F7
ESC // SucceX Mini 55A BLHeli_S

XING2 2207 motors (4S/6S)

Camera&VTX: Caddx Polar Vista

Nazgul F5 propellers

Weight: 412g (without battery and GoPro mount)

Nazgul5 Evoque F5D Analog
Total Dimensions: 166*139mm (body dimension)
Bottom to top distance: 28mm
Arm Thickness: 6mm
Bottom plate thickness: 2.5mm
Top plate thickness: 2mm
Upper(middle) plate thickness: 3mm
FC // SucceX- E Mini F7
ESC // SucceX-E Mini 45A BLHeli32
XING-E Pro 2207 4S 2750KV / 6S 1800KV
Camera: RaceCam R1 Mini 1200TVL 2.1mm lens 19*19 FPV Camera
VTX: 5.8GHz SucceX Mini Micro 600mW VTX
Nazgul F5 propellers
Weight: 392.6g (without battery and GoPro mount)
FC // SucceX-D Mini F7(HD)

MCU: 216MHz STM32F722

Gyro:2x ICM20689

Blackbox:32MB

Betaflight OSD: YES

BEC: 5V 2.5A / 9V 2.5A

Current sensor scale: 100

Inverter for SBUS input (UART2-RX)

Smart audio & Tramp VTX protocol supported

Beeper pad: Yes

RSSI input pad: No

UARTs:5

Motor outputs: 4

8 pin 4in1 ESC port (GND, VBAT, M1, M2, M3, M4, CUR, R5)

6 pin DJI Air Unit port (R1, GND, R2, T2, GND, 9V)

BLHeli32 Telemetry:Yes

Input voltage:recommended 2-6S, MAX 6S

Firmware target: IFLIGHT_F722_TWING

Mounting pattern: 20*20mm φ3

Dimensions:29*29mm

USB Type-C


FC // SucceX-E Mini F7(Analog)
MCU: STM32F22RET6 216 MHz
Gyro: MPU6000
Baro: DSP310
OSD: IFLIGHT OSD (AT7456E)
BEC: 5V 2.5A
BlackBox: 16MB
Uart: 4*UART(UART1、UART2、UART4、UART5)
UART1 for VTX HD/Analog Telemetry
UART2 for Receiver
UART4 for GPS
UART5 for ESC Telemetry
4×Dshot/PWM outputs
Smartaudio & IRC Tramp VTX protocol supported
WS2812 led Strip: Yes
Bepper: Yes
Firmware: IFLIGHT_SUCCEX_E_F7 4.2.0
Outer Size: 27*27mm / 20*20mm φ3 mounting
Weight: 4.9g


ESC // SucceX Mini 55A (HD)

Dimension: 31*29.5mm

Mounting Holes: 20*20mm/Φ4mm

Weight: 10.8g

Supports 2-6S Lipo input

MCU: G071

Constant: 55 Amps

Burst: 60 Amps

Current sensor: Yes

BEC: No

Current rate: 100

Supports DShot DShot150/300/600/MultiShot/ OneShot etc.

Firmware: BLHeli 32

Target: iFlight-G071-4IN1


ESC // SucceX-E Mini 45A (Analog)
Input: 2-6s LiPoly
Constant: 45 Amps (per channel)
Burst: 55 Amps (per channel)
BEC: No
BlHeli32 telemetry: Yes
Dimensions: 31x29.5mm
Mounting Holes: 20*20mm φ3mm with Grommets φ2mm
Weight: 6.7g (without motor wires)
Target: iFlight-G071-4IN1



M8Q-5883 GPS

GPS module: GPSSAM-M8Q

Frequencies: 72 channel

Compass module: QMC5883L

Baud Rate: 4800bps-115200bps (Default - 9600bps)

Sensitivity: Tracking: -162dBm, Capture: -160dBm,Cold Start:-148dBm

Cold start: <29s

Hot start: <2s

Accuracy: Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns

Maximum height: 50.000m

Maximum speed: 500 m/s

Speed accuracy: 0.05 m/s

Maximum acceleration: ≦ 4G

Refresh Rate: 10 Hz

GPS patch antenna size: 15 x 15 mm

Total dimensions: 20 x 20 x 10.5 mm

Weight: 8g

Input Voltage: 3.3V-5V,current 25mA

GPS pin definition: RX/TX UART

Compass pin definition: SDA/SLA


Package included:

1 x Nazgul5 Evoque F5 HD/Analog FPV Racing Drone (Deadcat)

1x iFlight M8Q-5883 GPS

4 x Nazgul F5 Prop

2 sets of Battery Pads

4 x Battery straps

1 x Screws bag
