RC Drone Specification:
Brand: iFlight
Model: Protek35 HD w/Caddx Air Unit
Item Name: 3.5 Inch 151mm F4 4S Whoop FPV Racing Drone
Wheelbase: 151mm
Bottom Plate Thickness: 3.5mm
Upper Plate Thickness: 2mm
Size: 118*91mm
Weight: 348±10g
Notice:
The Camera and Camera Mount for Gopro are NOT Included.
ONLY Include fixing mount Base.
| Beast AIO F7 45A FC ESC | Brand Name: iFlight Model: Beast F7 45A AIO (MPU6000) 25.5x25.5 FC: MCU: BGA-STM32F745 Gyro: MPU6000 Blackbox: 8Mb Onboard Flash BEC output: 5V 2.5A Barometer: BMP280 Connector: Micro-USB OSD: AT7456E FC Firmwareï¼IFLIGHT_F745_AIO Mounting pattern: 25.5*25.5mm Ï3mm Dimensions: 32.5*32.5mm Weight: 8.5g ESC: Uarts: 5 Current Sensor: Yes Input: 2-6S LIPO Current scale: 200 Constant: 45A / Burst: 50A BLHeli: BLHeli-S Telemetry: no ESC Firmware: BlheliS G-H-30 Mounting pattern: 25.5*25.5mm/Φ3mm Dimensions:â32.5*32.5mm |
| XING 2203.5 3600KV Brushless Motor | Brand Name: iFlight Model: XING 2203.5 KV: 3600KV Lipo: 4S |
| Nazgul 3535 Propeller | Brand Name: iFlight Model: Nazgul 3535 Item Name: 3535 3.5x3.5 3.5 Inch 3-Blade Propeller Quantity: 2 CW & 2 CCW |
| Recommended Battery (No Included): | Recommend 4S 1550mAh Lipo Battery XT60 Plug Flight Time: 9-10mins Flight Time(with camera for Gopro): 6-7mins |
Features:
1. The 3.5-inch propeller has higher efficiency and strength; this product is easy to disassemble and easy to carry; reasonable power configuration, longer battery life.
2. Plastic protection ring, new design concept, lighter weight.
3. Excellent structural design brings a more enjoyable control feel to flight.
4. The frame is designed with inlaid copper pillars for easy disassembly and maintenance. It only needs to disassemble the top and bottom plates with a total of 12 screws.
5. With LED on the Drone Tail, the LED Color is changable which can reminds you the Battery consumption condition.
Features:
*No Props or frame in view!
*High performance True-AIO Board Beast Whoop F7 AIO 45A to save weight and space
*T700 Quality Carbon (40% more tensile strength compared to common 3K carbon)
*Lightweight one-piece frame design (Less flexibility, more Rigid, more Durable)
*Low Resonance frame construction (Less Jello, more Cinematic footage)
*Nebula Nano Digital HD System
*Butter smooth 2203.5 3600KV (4S) (LNK)
*Pre-tuned with smooth freestyle settings
Package Included:

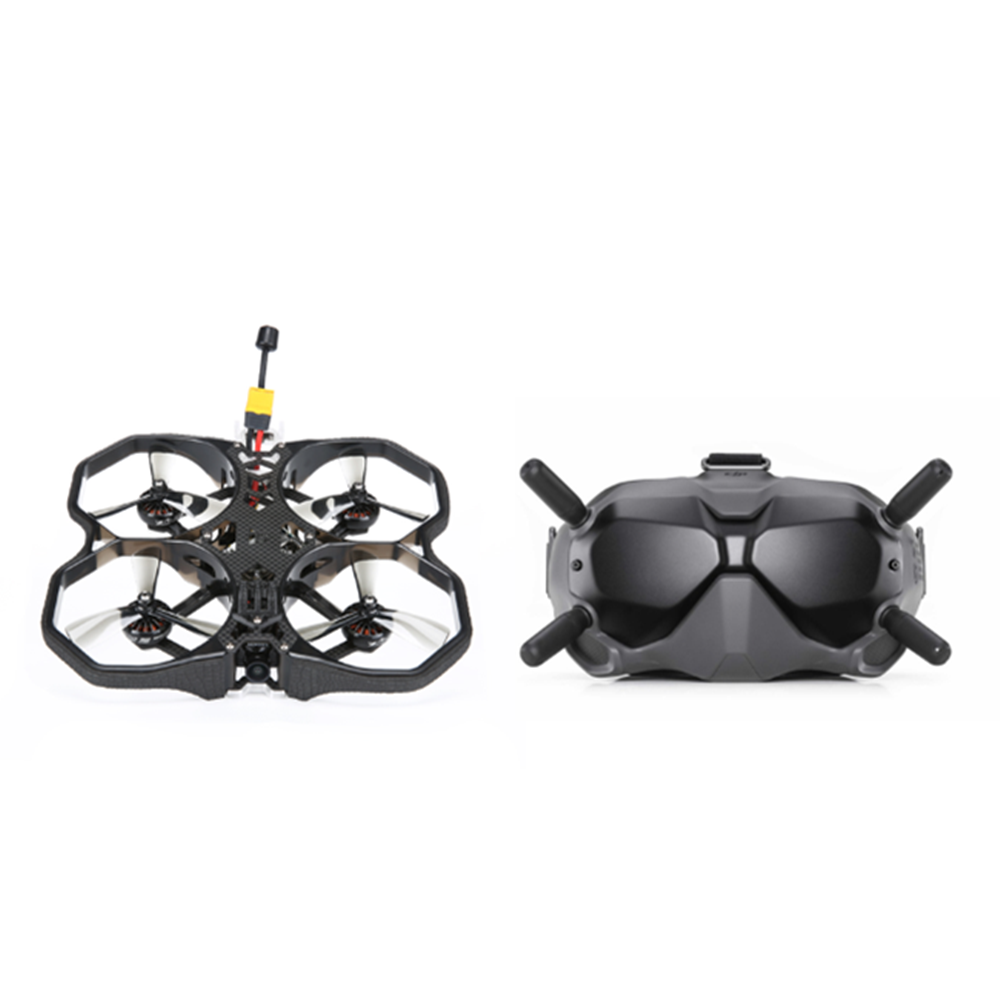

1 x iFlight Protek35 HD 3.5 Inch 151mm Whoop FPV Racing Drone 4S
4 x Propeller
1 x Battery Tie
1 x Screw Set
1 x EVA Cotton Strip
1x DJI FPV Goggles V2 (inc. foam padding)
1x DJI FPV Goggles Battery
1x DJI FPV Goggles Power Cable (USB-C)
4x DJI FPV Goggles Antenna (Dual Band)
1x Headband
1x USB-C cable
1x Sleeve
