After our popular TITAN DC5 (DeadCat style frame) approach we decided to take a step back to the roots and create a new X-Geometry frame to get the best performance on both axis and better weight distribution for freestyle.
â
âHIGHLIGHTS:
- 6mm arm design for more durability
- XING 2208 motors for more power
- GPS pre-installed for more safety at distance
- Variable GoPro TPU mount (supports ND-Filter inserts)
- 360° TPU protection and Antenna mounts
âNotice: The Camera Mount for Gopro is NOT Included in the pacakge.
â
âPRE-TUNED & PRE-SETUP:
- Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was appplied for a great flight experience!
- GPS-rescure mode is configured and just needs to be enabled in your Betaflight Configurator! (Please be aware of how it works before you use it!)
- Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!
- Motor Power is configured to 70% throttle limit (scaled) by default to give more throttle stick resolution for an easy start on the 6S 1800kv version. Need more Power? Just enable 100% in the Betaflight Configurator to unleash the Beast!
â
Specification:
Brand Name: iFlight

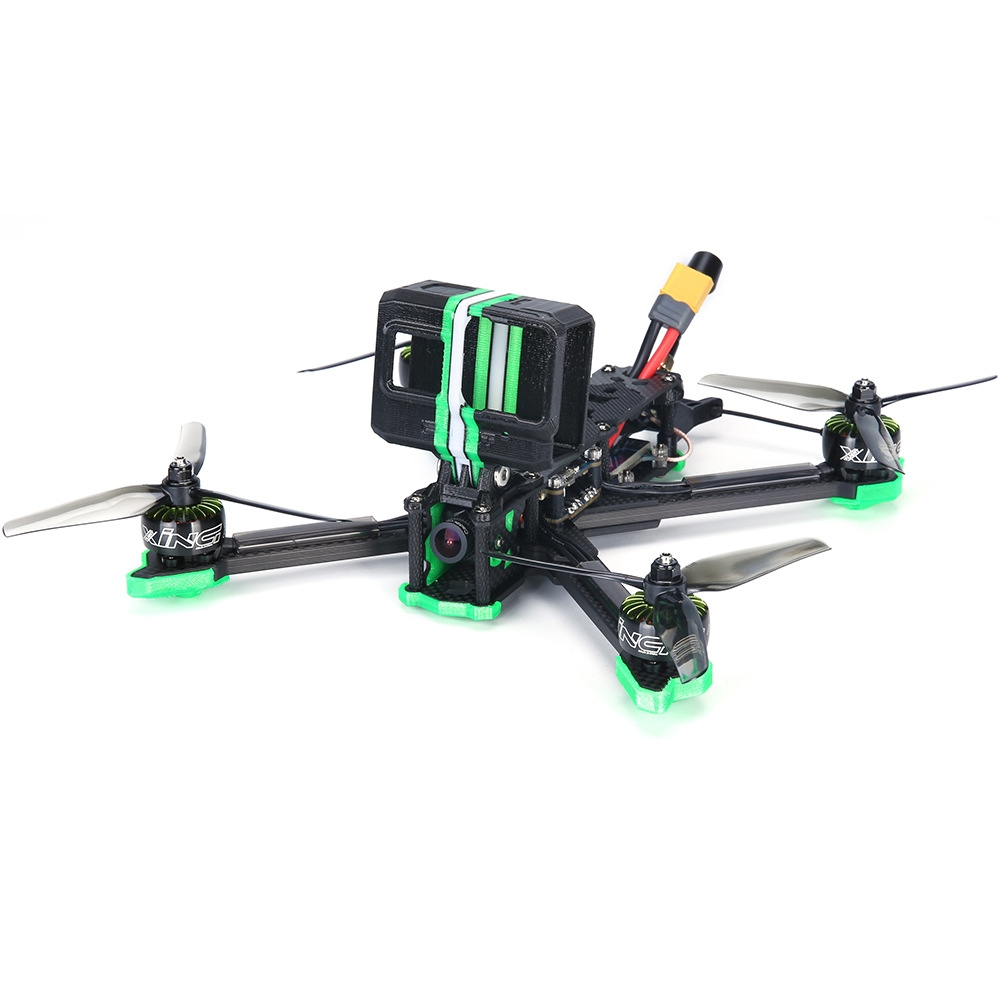

Model: TITAN XL5
Item Name: 250mm F7 6S FPV Racing Drone PNP/BNF
Wheelbase: 250mm
Optional Receiver: PNP(Without Receiver);
â Frsky XM+ Receiver ( Built-in Frsky XM+ Receiver)
Frsky R-XSR Receiver ( Built-in Frsky R-XSR Receiver)
TBS Crossfire Nano Receiver ( Built-in TBS Crossfire Nano Receiver )
Recommend Battery:6S 1300mAh 120C Lipo Battery ( NOT Included)
| TITAN XL5 250mm Frame | Wheelbase: 250mm Main body dimension: 185*133mm âWeight: 145g Bottom to top distance: 30mm Arm thickness: 6mm Bottom plate thickness: 2mm Top plate thickness: 2mm Camera plate thickness: 2mm (2.5mm included TPU inserts) |
iFlight SucceX-E F4 & 45A Blheli_S 2-6S 4 In 1 ESC Stack 30.5x30.5mm | iFlight SucceX-E F4MCU: STM32F405 Weight:14.4g Supports 2-6S Lipo input STM32F051 MCU, 48Mhz Runs BLHELI 32.X âBLHeliSuite download: http://www.mediafire.com/file/1tn449x6815upat/BLHeliSuite16714901.zip/file Current sensor: No |
| XING 22081800KV 6S Motor | Brand name: iFlight Item name: XING X2208 Brushless Motor KV: 1800KV Stator Diamter: 22mm Stator Length: 8mm Shaft Diameter: 5mm No.of Cells(Lipo): 3-6S Weight: 37g |
| Nazgul 5140 3-Blade Propeller | Brand Name: iFlight Item Name: 5140 5 Inch Durable 3-Blades Propeller Model: Nazgul 5140 Material: polycarbonate Mounting: 5mm center hole Weight of Single Prop: 4g Quantity: 2 CW & 2 CCW |
Features:
Package Included:
â- 1x 3pin Cable
