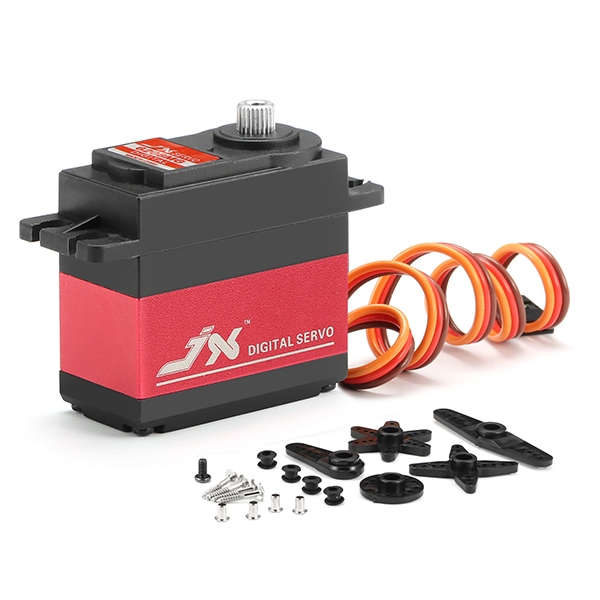

JX Servo PDI-6208MG 8kg Servo 120 Degrees High Precision Metal Gear Digital Standard Servo For RC Model

Feature:
-- High performance digital standard servo
-- High-precision Taiwan-made metal gears
-- High quality brushed motor
-- Dual ball bearings
Specification:
Dead band: 2μs
Maximum Pulse Width: 900-2100us
Maximum Angle: 120°
Working frequence: 900-2100us
Motor: high quality core motor
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.09 sec/60 degrees
Operating Speed (6V): 0.07 sec/60 degrees
Stall Torque (4.8V): 6.8 kg.cm
Stall Torque (6V): 8.2 kg.cm
Dimensions: 40.5X20.2X38mm /1.59 X0.80X49 in
Weight: 55.6 g (1.96oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB

Package Included:
1x JX PDI-6208MG Servo
