LEACO RC Alien RR5 GOLD 225mm Wheelbase 4mm Arm Carbon Fiber 5 Inch Frame Kit for RC Drone FPV Racing - 35.00 €

LEACO RC Alien RR5 GOLD 225mm Wheelbase 4mm Arm Carbon Fiber 5 Inch Frame Kit for RC Drone FPV Racing
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

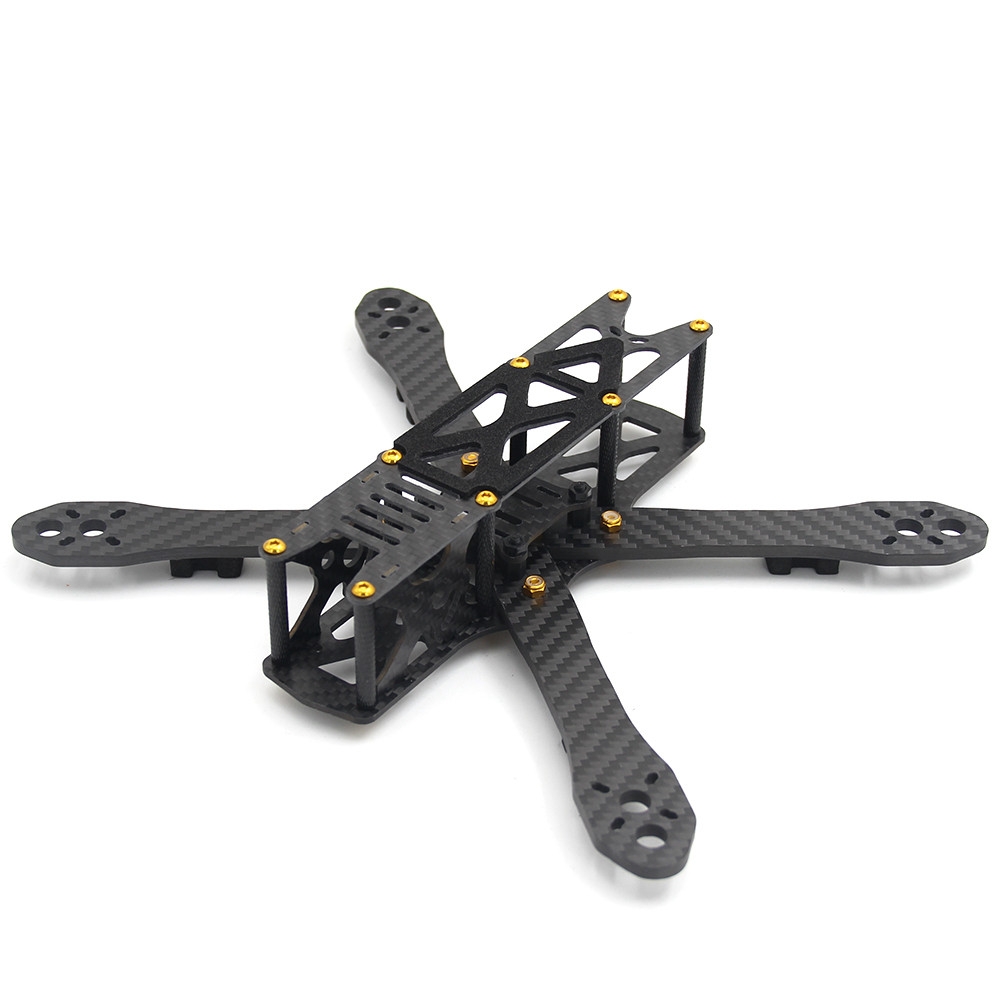

LEACO RC Alien RR5 GOLD 225mm Wheelbase 4mm Arm Carbon Fiber 5 Inch Frame Kit

Specification:
Brand Name:LEACO RC
Model: LEACO RC
Screws Color: Gold
Wheelbase: 225mm
Material: Carbon Fiber
Arm Plate Thickness: 4mm
Upper Plate Thickness: 2mm
Lower Plate Thickness: 2mm
Other PlateThickness: 1.5mm
Weight: about 136.4g

Features:
Designed to fit any 16x19mm 3mm motor mount pattern (2206 size motor recommended).
Arm proportions are a simple pythagorean triple - 3:4:5.
Dry weight of kit without electronics: 110
Arms protect motors in most crash situations from damage.
Easy Lipo Access (suggested Lipo 1300mah 4s).
Designed for board cams such as the HS-1177 with included mounting hardware.
Support to carry HD camera

Recommend Parts:
Flight Controller: 30.5x30.5mm F3/ F4 Flight Controller
ESC: 20-40A ESC
Motor: 2206 Motor etc. (16x19mm, M3)
FPV Camera: 28mm Width

The following Parts are Compatible:
FC & ESC Stack: 20x20mm HGLRC XJB F438 Flytower F4 FC & 33A BL_S ESC
DYS 30.5x30.5mm Flytower F4 Pro FC + F30A 4in1 ESC

Brushless Motor: Emax RS2205 2300KV 3-4S Racing Edition CW/CCW Motor

Propeller: 10 Pairs LDARC 5045 5X4.5 5 Inch 3-Blade Propeller CW & CCW

Lipo Battery: GaoNeng GNB 4S 15.2V 1300mAh 120C 240C Lipo Battery

Package Included:
1x LEACO RC Alien RR5 Frame Kit
