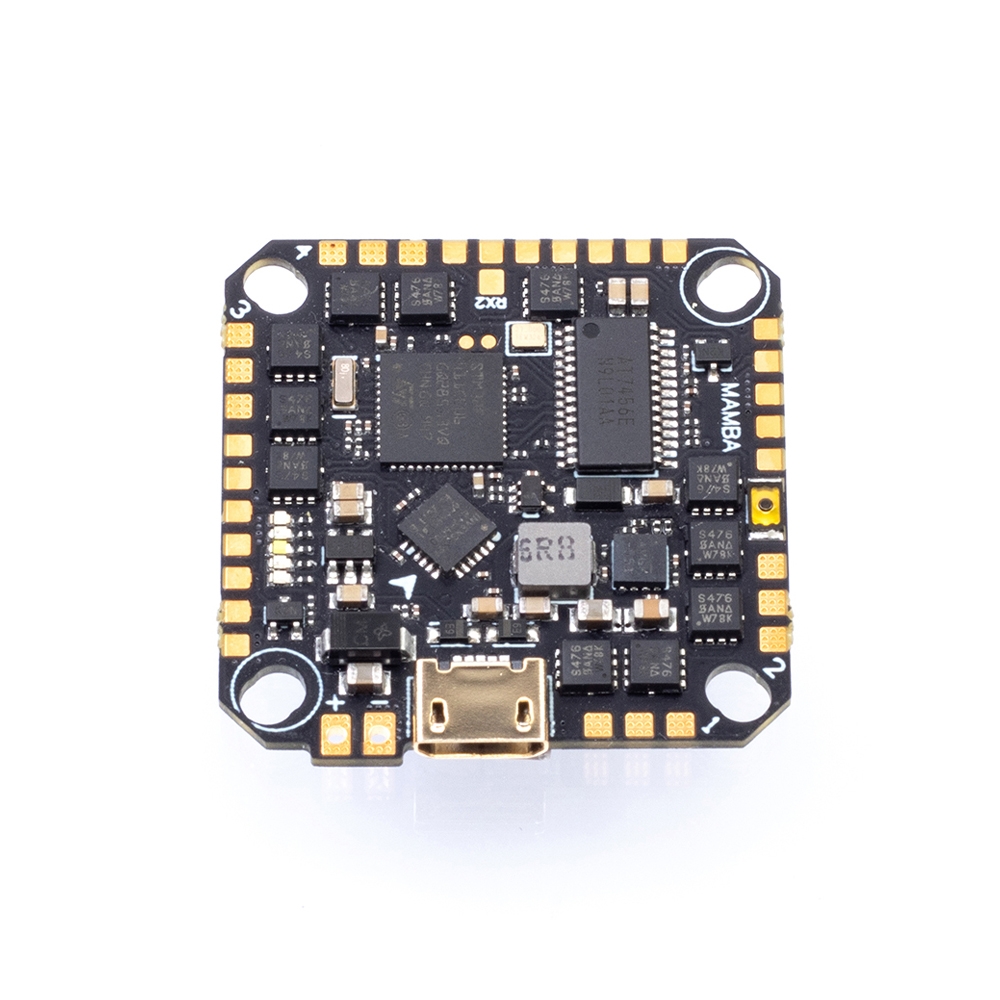

Mamba F411 AIO F4 Flight Controller 25A 4S Blheli_S DSHOT600 Brushless ESC Stack comptaible DJI FPV Air Unit 25.5x25.5mm for Whoop Toothpick RC Drone FPV Racing - 49.00 €

Mamba F411 AIO F4 Flight Controller 25A 4S Blheli_S DSHOT600 Brushless ESC Stack 25.5x25.5mm for Whoop RC Drone FPV Racing

Specification:

Brand Name: Mamba

Model: MAMBA F411AIO 25A ESC Stack

Mounting: 25.5x25.5mm , M2

Dimensions: 31.5x31.5x9mm

Weight: 5.5g

Diagram, LINK

FC:

MCU: 100MHz STM32F411CEU6

IMU: MPU6000

OSD: AT7456E

Blackbox: NO

Baro: NO

Receiver: TBS/PPM/SBUS/IBUS/DSM

RSSI PAD: YES

Buzz: YES

CURR: YES

BEC 3.3V: 0.5A

BEC 5V: 2A

BEC 9V: no

MB LED: NO

BF LED: YES

Bluethooth: NO

Input: 4S

Firmware: Betaflight

Target: MAMBAF411

ESC:

Output Current: 25A

Peak Current: 30A

Input: 4S

BEC: NO

CURR: YES

Firmware: Blheli_S

Target: GH30

Mounting: 26x26mm, M2

ESC Soft: DSHOT300/600

Package Included:

1 x MAMBA F411AIO 25A ESC Stack
