Matek Systems FCHUB-VTX 6~27V PDB 5V/1A BEC w/ 5.8G 40CH 25/200/500mW Switchable RC Drone Video Transmitter - 39.00 €

Matek Systems FCHUB-VTX 6~27V PDB 5V/1A BEC w/ 5.8G 40CH 25/200/500mW Switchable RC Drone Video Transmitter
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

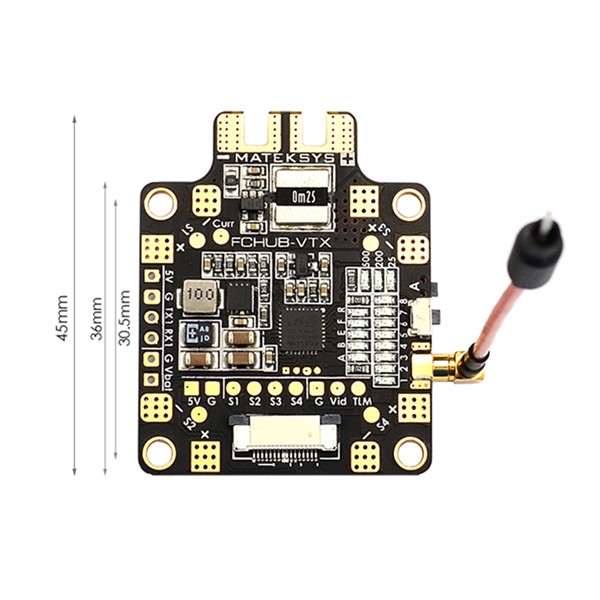

Matek Systems FCHUB-VTX 6~27V PDB 5V/1A BEC w/ 5.8G 40CH 25/200/500mW Switchable Video Transmitter



















Specification (user manual):
Brand name: Matek Systems
Item name: FCHUB-VTX
Weight: 14g (w/ MMCX whip antenna)
Size: 36*45*7mm w/30.5mm mounting

Input voltage: 6~27V(2~6S LiPo)
PDB: 4*30A (4*46A, 5 seconds)
Current Sensor: 184A (Scale 179)
BEC Output: 5V/1A for Camera or FC

VTX: 40 standard 5.8G channels, A/B/E/F/R Band
VTX Output Power: 25, 200, 500mW switchable
Traditional button+LED control of frequency and power
BFCMS (BFOSD & LUA Script) control via FC UART _TX
Video signal & TX5 are ready on FFC connected with MATEK FC F405-OSD
Silicon wires connection with other brands FC
Firmware upgradeable

VTX Power Consumption: 3.1W Max. @ 500mW
Video Input Impedance: 75 Ohm
Audio Subcarrier Frequency: 6.5 MHz
RF Connector: MMCX
Video Format: NTSC/PAL

Pacakge included:
1* FCHUB-VTX board
1* MMCX to SMA Female, RG178 cable 9cm
1* MMCX 5.8G whip antenna, RG178 8cm
1* Rubycon ZLH 35V/470uF Low ESR capacitor
