Mavlink Smart LED Controller Support Apm2.5 2.6 2.8 Pixhawk with LED Lights/USB to TTL configurator
Mavlink LED Controller apm2.5 2.6 2.8 Pixhawk LED Controller:
LED Lights:
USB to TTL configurator compatible with FT232:
Interface Figure:
How to connect with Pixhawk?
How to connect the configurator?
mission planner software setting:
Software for configurator:
Operations Tutorial: https://www.youtube.com/watch?v=FMcwaHRttLk
Note: Pins are not welded on to the circuit, players have to weld by themselves.(Softly remind that the quadcopter, flight controller, transmitter and other spare parts in above pictures are not included in the package.)
Specification:
Item name: Mavlink LED controller
Features:
Remote control lost contact alarm
Low voltage alarm
GPS lock indicator
Flight mode conversion instruction
Control LED opening and closing
Indicates the direction of head
2 auxiliary channel control high and low output (can supply to the load)

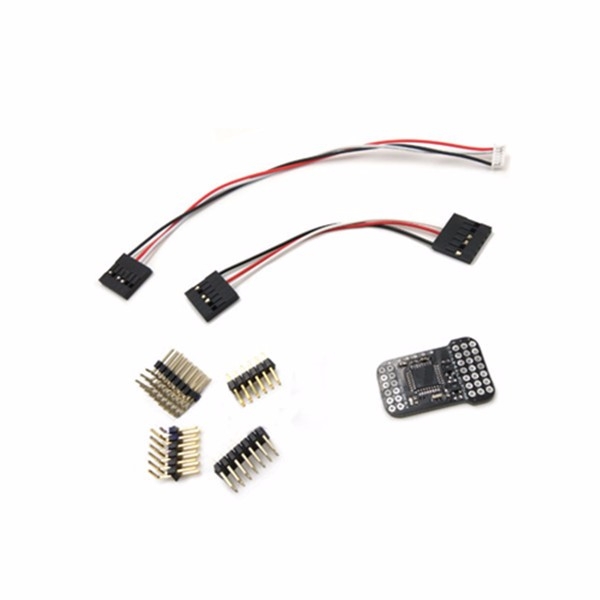

Package included:
LED Controller:
1 x Break board
4 x Pins
2 x Cable
LED Strip:
4 x Led strip
4 x 3M tapes
4 x 25cm cable
Configurator:
1 x Break board
1 x cable
Package included:
LED Controller:
1 x Break board
4 x Pins
2 x Cable
LED Strip:
4 x Led strip
4 x 3M tapes
4 x 25cm cable
Configurator:
1 x Break board
1 x cable
