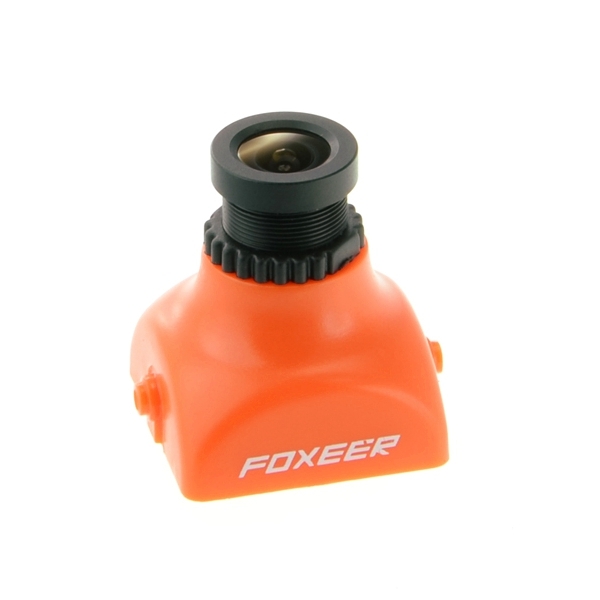

Orange Foxeer XAT600M Sony 600TVL CCD 2.8MM IR Mini FPV Camera 5-22v with Bracket
Notice: It is bottom connector.
Notice: It is bottom connector.
Description:
Brand Name: Foxeer
Model: XAT600M
CCD: 1/3” Sony SUPER HAD II CCD
DSP model Nextchip 2040
DSP model Nextchip 2040
Pixel: NTSC 768(H)×494(V)
TV System: NTSC
Resolution: 650TVL(b/w), 600tvl(color)
Synchronization: internal synchronize
Shutter Speed (CCD IRIS): NTSC: 1/60~1/100000 sec
Noise: > 60 (AGC OFF)
Video Out: 75ohm, synchronize
Min. Illumination: 0.01Lux
Auto Gain: Off/Low/Mid/High
Back Light Compensation: (BLC) Off /Back light compensation/ Strong light suppression
Private shading: (PRIVACY) 1~8 private shading area
Motion Detection: (MD) On/ Off (Multi level sensitivity settable)
Auto White Balance: Manual / Auto / Auto track
Mirror: Horizontal Mirror optional
Negative: Positive / Negative optional
Color to B&W: Auto
DNR: 2DNR
WDR: D-WDR
Day / Night Shift: Auto/ Color/ B&W
Menu (OSD): English menu
White Dot Repair: Support
Image Adjustment: Support
Camera Title: Support
Power Requirement: DC5V~22V
Working Temperature: -10 C ~ 50 C
Working Humidity: 20~80%
Storage Temperature; -40 C ~ 60 C
Storage Humidity: 20~95%
Dimensions(mm): 25X25(W*L)
Weight: 12.7g(without backet), 14.6g(with bracket)
Weight: 12.7g(without backet), 14.6g(with bracket)
Power Consumption: 70mA
Features:
2.8mm Lens
IR-Cut for daylight use
Notice: It is bottom connector.
Package Included:
1 x HS1177 Camera with 2.8 Lens
1 x Mounting bracket
1 x Camera cable with Male Servo end
1 x OSD Joystick cable
