Specification:
Gears : Metal
Gears : Metal
Gears Play : very low
Ball Bearing : 2
Weight : 16.7 g
Dimensions : 23.8 x 27.6 x 11.3 mm
Speed/Torque@ 4,8V : 0.16 sec / 60° 3.9 Kg / cm
Speed/Torque@ 6.0V : 0.14 sec / 60° 4.8 Kg / cm
Speed/Torque@ 7.4V : 0.12 sec / 60° 6.3 Kg / cm
Input Voltage : 4.8V - 7.4V
Harness length : 220mm JR
Dead band : 3μs
Electric precision : 2μs
Features:
Very high torque servo designed to be mounted in g'lider wings or every other application requiring torque and p'recision.
Its small thickness allow it to be mounted in composite molded g'lider wings.
Metal gears mounted on 2 BB combining reliability, p'recision and strength.
Package included:

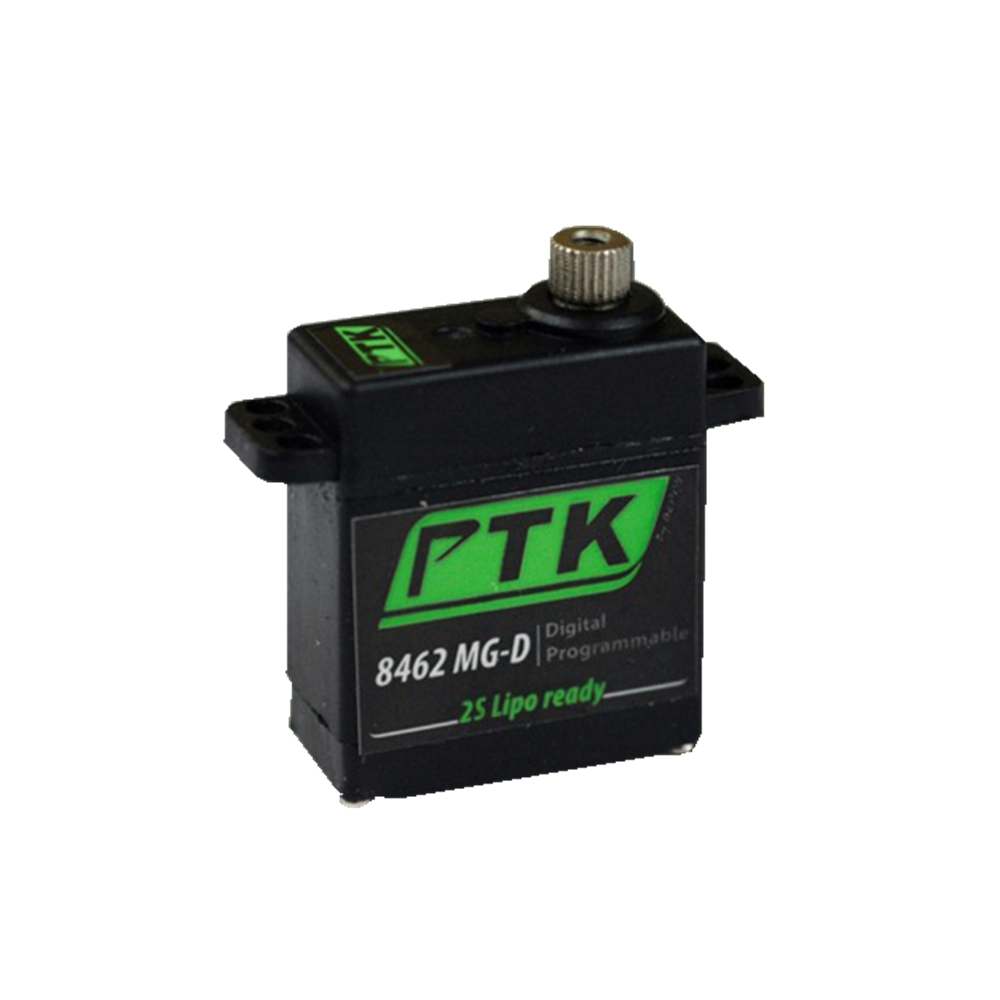

1 x PTK 16g Mini Metal Digital Steering Gear Servo for RC Airplane Fixed Wing Helicopter
Package included:
1 x PTK 16g Mini Metal Digital Steering Gear Servo for RC Airplane Fixed Wing Helicopter
