Description:
Item Brand:Radiolink

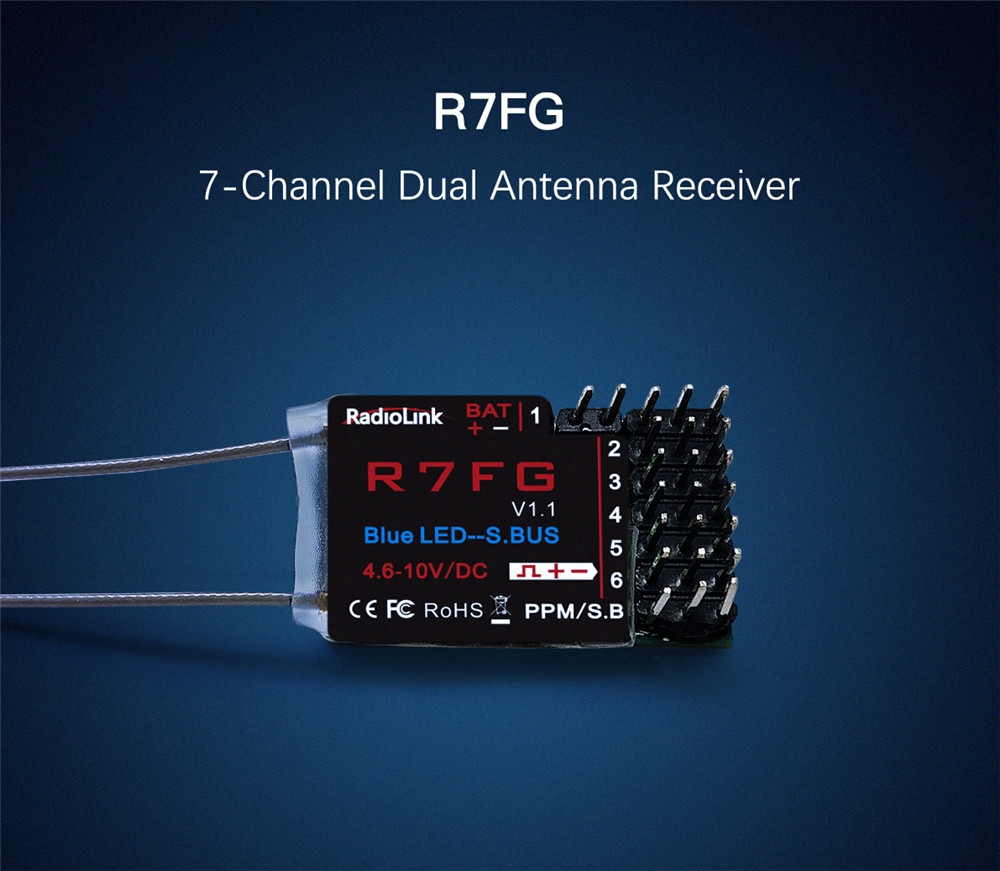

Item Name:R7FG Receiver
Material:ABS and electronic components
Color:Black
Product Size:30*18,5*11.5mm
Antenna Length:200mm
Product Weight:About 6g
Packaging Weigt:Approx 8g
Specification:
Frquency:2.4GHZ ISM band(2400MHz-2483.5MHz)
Channel:7CH
Signal Output:PWM&PPM/PWM&SBUS
Model Application:Car/Boat
Spread Spectrum Mode:FHSS 67-channel pseudo random frequency hopping
Voltage Range:4-10v
Operation Current:300mA(base on power voltage)
Compatible Transmitter:RC6GS RC4GS T8FB(Note:Also compatible with RC3S/RC4G,But as these two transmitter do not have usb port,the latest firmware cannot be updated and the transmission information of voltage and signals cannot be displayed on their main interface)
Control Distance:600m on the ground
Package included:
1X R7FG Receiver
