Description:
Brand Name: RadioLink

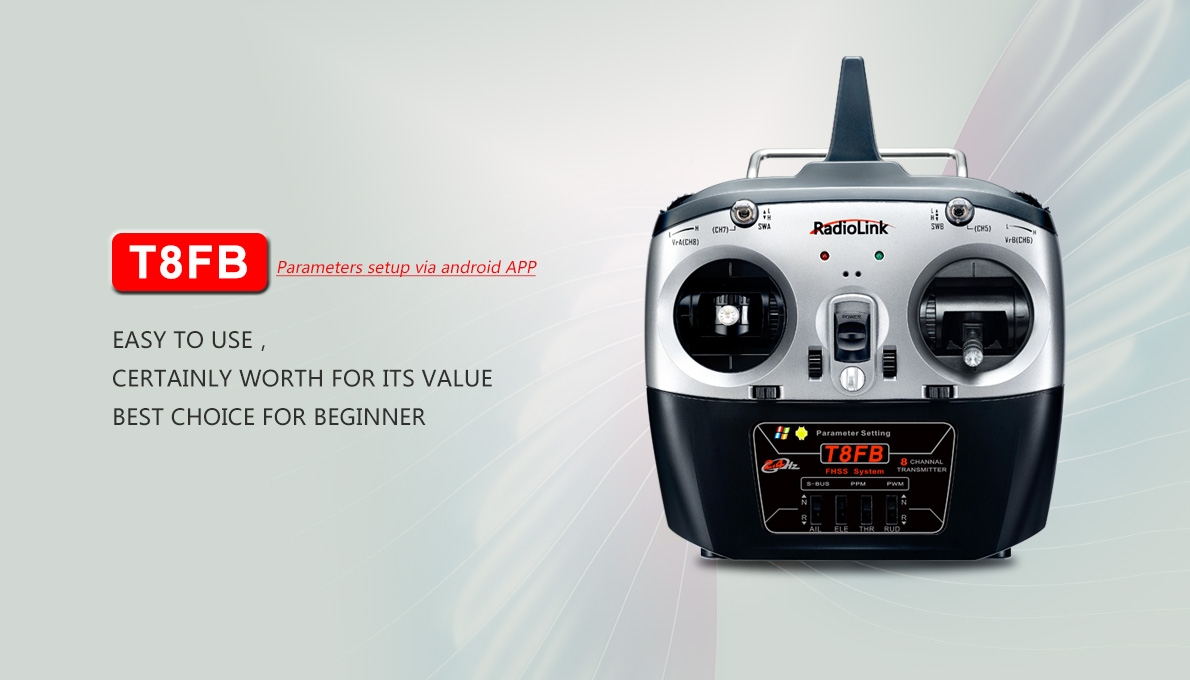

Item Name: T8FB transmitter with R8EF receiver
Specification of T8FB Transmitter:
Frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)
Channel: 8ch
Size: 26*23*12cm
Weight: 0.74kg
Mode(optional): Mode 1 (Right Hand Throttle), Mode 2 (Left Hand Throttle)
Modulation Mode: GFSK
Channel Band Width: 400KHz
Channel Pacing: 1200KHz
Spread Spectrum: FHSS
Adjacent Channel Rejection: >38dBM
Transmitter Power: <100mW (20dBM)
Sensitivity: -104dBM
Speed Rate: 38kbps
PWM Output: 1.0ms ~ 2.0ms
Section Precision: 2048,0.5μs per section
Cycle: 15ms/per frame
Operating Voltage: 4.8V - 18V
Operating Current: <80mA
Support Receivers: R8EF,R8FM,R4FG,R4F
Control Distance: 500m ground and 1000m air,the actual control distance depends on the flying environment
Specification of R8EF Receiver:
Features of Transmitter:
Specification of R8EF Receiver:
Frequency: 2.4G
Channels: 8 channels
Channels: 8 channels
Working Voltage: 4.8-10V
Working Current: 19-25mA ( input voltage: 5V )
Size: 48.5*21*11mm
Weight: 11g
Section precision: 4096
Signal Support: S-BUS,PPM,PWM
Section precision: 4096
Signal Support: S-BUS,PPM,PWM
Control Range: About 500m ground and 1000m air, actually control distance depends on the environment.
Features of Transmitter:
Anti-interference ability and control distance upgrade
S-BUS,PPM and PWM support
USB upgrade and parameters setup via Android APP
Support super mini receiver
Programmable mix control
Unique anti-polarity connect protection intelligent
Low consumption of battery
Wide voltage range input humanized operation
Inheritance industrial design
Suitable for most of the airplane and all multicopters,RC cars and boats.
English Manual, Click Here
Package Included:
1x RadioLink T8FB 2.4G 8CH Transmitter
1x RadioLink R8EF 2.4G 8CH Receiver
Receiver Two Signal Working Mode:
- PWM Signal Output Working Mode: Red LED indicates PWM signal output, 8 channels Totally.
- S-BUS&PPM Signal Output Working Mode: Blue/purple LED indicates SBUS&PPM signal output, 8 channels totally. SBUS and PWM signal possible working at the same time with S-BUS&PPM signal output working mode. CH1 output S-BUS signal, CH2 output PPM signal, CH3 to CH8 output PWM signal at the same time.
- S-BUS&PPM and PWM Signal Change: Quick press the ID SET switch two times within 1 second, the signal is changed from PWM to S-BUS&PPM. The red LED indicates the PWM and blue/purple indicates S-BUS&PPM.
How To Bind:
1. Put the transmitter and the receiver close to each other within 1 meters.
2. Turn on the transmitter, then power on the R8EF.
3. There is a black button on the R8EF, press the binding button twice in two seconds and release, receiver light start blinking, after about blinking 8 times, match code success then receiver signal LED always on!
Installment of Receiver Antenna:
1.The antenna must be kept as straight as possible. Otherwise it will reduce the effective range.
2.Large model aircraft may of some metal part interfering signal; in this case the antennas should be placed at both sides of the model. Then the best RF signal condition is obtained at any flying attitude.
3.The antennas must be kept away from conductive materials, such as metal and carbon by at least a half inch. The coaxial part of the antennas does not need to follow these guidelines, but do not bend it in a small radius.
4.Keep the antennas away from the motor, ESC, and other noise sources as much as possible.
5.Press and hold the Easy Link (ID SET) one second, now the receiver starts work.
6.After all of the above steps finished, the LED indicator will turn and keep in red.
7.The receiver can be packed by sponge or foam for shocking proof when it is installed to the model.
After all of the above steps finished, turn off the transmitter and then power it on, now the program functions to assure it under control of transmitter with a right connection.
English Manual, Click Here
Package Included:
1x RadioLink T8FB 2.4G 8CH Transmitter
1x RadioLink R8EF 2.4G 8CH Receiver
