Realacc Lion210 FPV Racing X Frame w/ Racerstar BR2306S 2400KV Motor RS40A V2 BLHELI_S ESC 5048 Propeller Omnibus Betaflight 3.1.5 F4 V2
Description:
Items Specialtion Realacc Lion210 FPV Racing X Frame
Brand: Realacc
Brand: Racerstar
Brand Name: Racerstar
Item Name: 40A BLHELI_S BB2 2-5S Brushless ESC
Model: RS40A
Con. Current: 40A
Peak Current: 45A (10S)
BEC: No
Lipo: 2-5S
Programmer: YES
Weight: 9.6g
Size(PCB): 32x15mm
-Mini size and light weight (9.6g)
-BLheli_S Firmware
-BB2 Chip
-D-Shot 600 in default
- Support Oneshot125, Multishot, Dshot150 and Dshot300.
Omnibus Betaflight 3.1.5 F4 V2
Item name: F4 V2 Flight Controller
Brand: Racerstar
Description:
Items Specialtion Realacc Lion210 FPV Racing X Frame
Brand: Realacc
Item: Lion210
Wheel base: 210mm
Weight: 100g
Material: 3K carbon fiber
PDB: 5V & 12V
Thickness of frame arm: 4mm
Thickness of upper plate: 2mm
Thickness of side plate: 1.5mm
Thickness of arm plywood: 2mm
Thickness of antenna plate: 1.5mm
High strength carbon board to ensure that the framework is strong.
4mm thickness frame arms' design.
Genuine "X" frame, suitable for racing and freestyle flying.
Fix vertically.
Fix horizontally.
Universal camera mount.
Suitable propeller size 5 inch.
With a XT60 PDB integrated BEC (5/12v output)
Racerstar BR2306S 2400KV Motor
Brand: Racerstar
Item name: BR2306S 2400KV Brushless Motor
RPM/V: 2400KV
Height: 33.5mm
Width: 28.5mm
Shaft diameter: M5
Motor mount hole size: M3
Weight: 33.5 grams
Voltage: 2-4S
Battery: 2-4S lipo battery
Internal resistance: â¦
Usage: X210 X220 250 280 FPV Racing Frame
Stainless steel motor shaft
Long life Japanese NMB ball bearings
Oxygen free copper wire
CNC machined aluminum case
More powerful than BR2205S
Racerstar RS40A V2 BLHELI_S BB2 ESC
Due to the Racerstar misprinting the label, the first batch of motors come with the label "BR2306" , but the performance is the same as "BR2306S".
We will correct the error in the next batch.
Brand Name: Racerstar
Item Name: 40A BLHELI_S BB2 2-5S Brushless ESC
Model: RS40A
Con. Current: 40A
Peak Current: 45A (10S)
BEC: No
Lipo: 2-5S
Programmer: YES
Weight: 9.6g
Size(PCB): 32x15mm
-Mini size and light weight (9.6g)
-BLheli_S Firmware
-BB2 Chip
-D-Shot 600 in default
- Support Oneshot125, Multishot, Dshot150 and Dshot300.
Omnibus Betaflight 3.1.5 F4 V2
Item name: F4 V2 Flight Controller
Size: 35x35mm
Mounting hole: 30.5x30.5mm
Firmware: betaflight_3.1.5_OMNIBUSF4SD
Input voltage: 2-6S
SCM: STM32 F405 MCU
Sensor: SPI Sensor MPU6000
Berometer: BMP280
Slot: standard SD card slot
BEC: 5V/3A
STM32 F405 MCU, Runs betaflight_3.1.5_OMNIBUSF4SD, could run faster loop time.
Using F4 MCU controls OSD over SPI bus in DMA mode.
OSD Configation has been included in Betaflight GUI.
OSD Configation has been included in Betaflight GUI.
Built-in 5V/3A BEC.
Built-in galvanometer.
With LC filter.
Racerstar 5048 3 Blade Propeller
Brand: Racerstar
Item name: 5048 3 Blade Propeller
Material: PC
Material: PC
Color: red, white, green, blue, yellow, black, purple, orange
Quantity: 10 pairs (the same color)
Mounting hole: 5mm
Weight: 94.8g (10 pairs)
Usage: for 2204, 2205 etc. 5mm shaft motors.

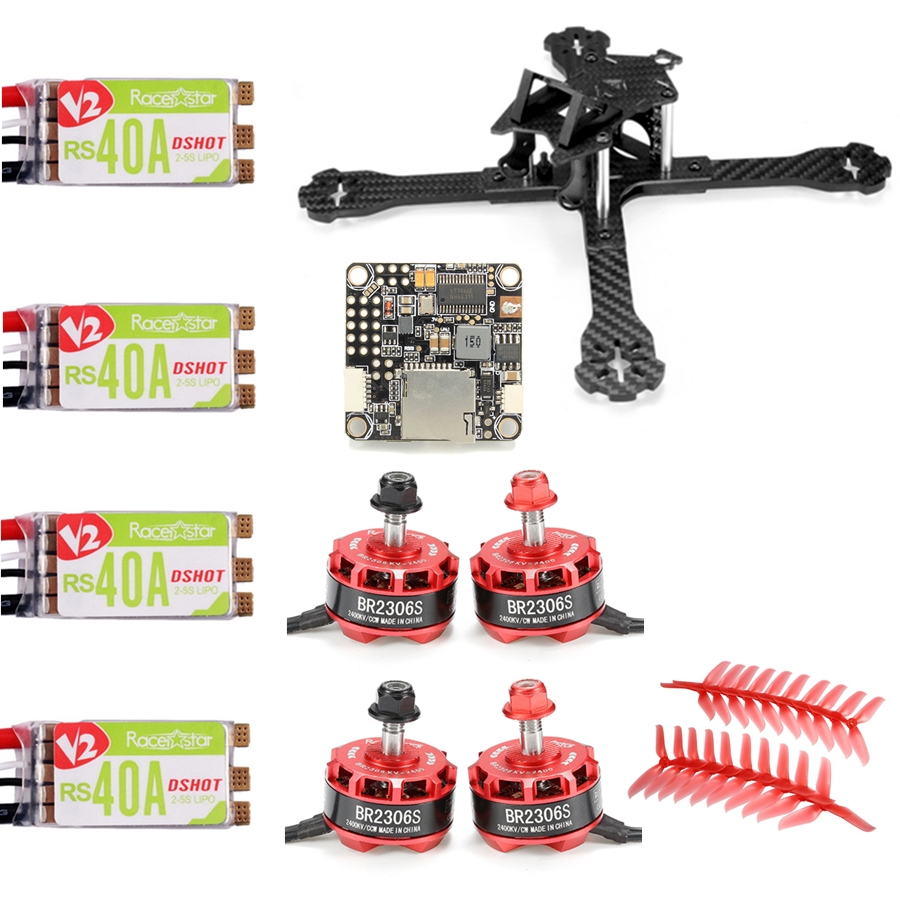

Package included:
1 x Lion210 FPV Racing Frame
1 x 5V & 12V PDB
1 x battery strap
2 x BR2306S 2400KV Brushless Motor CW
2 x BR2306S 2400KV Brushless Motor CCW
4 x RS40A 40A ESC
1 x F4 V2 Flight Controller (without cables)
2 x BR2306S 2400KV Brushless Motor CCW
4 x RS40A 40A ESC
1 x F4 V2 Flight Controller (without cables)
10 x 5048 3 Blade Propeller CW
10 x 5048 3 Blade Propeller CCW
