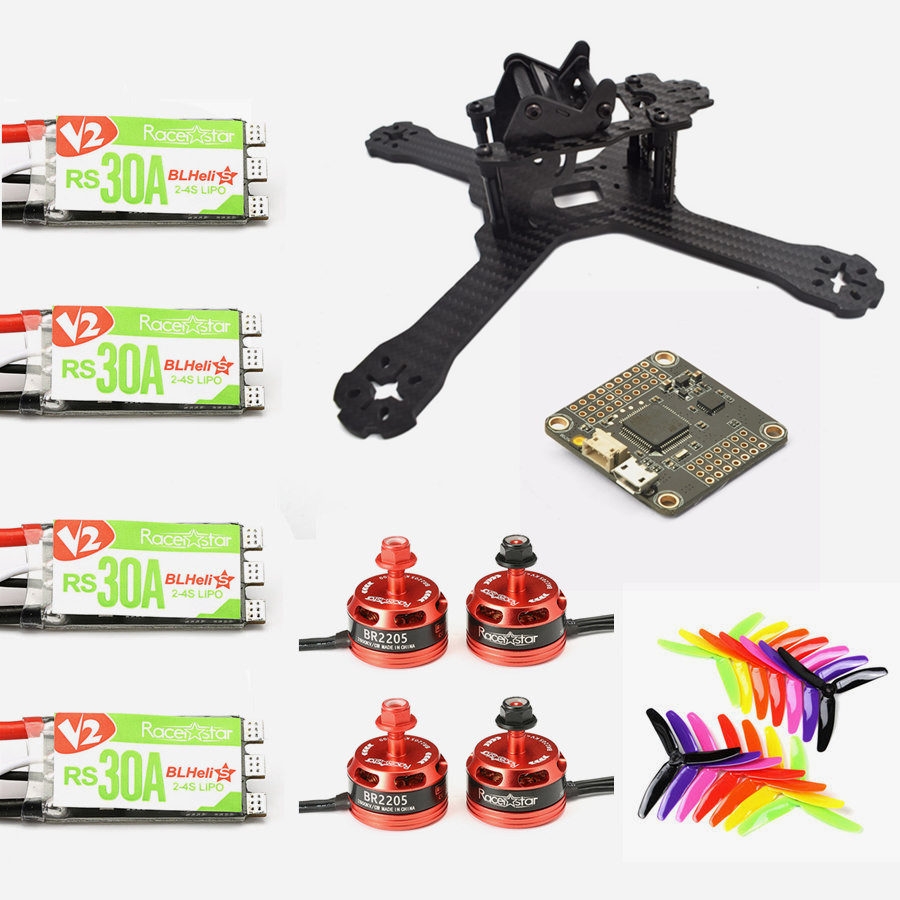

Realacc X210 V+ 6K 4mm Frame + CC3D REVO F4 + 4X Racerstar BR2205 2600KV Motor + 4X RS30A V2 Blheli_S ESC + 7 Pairs Kingkong 5X4X3 Prop
Items Specifications Features Realacc X210 V+ 6K FPV Racing Frame
Wheelbase: 214mm
Material: carbon fiber
Weight: 98g (frame + hardware)
X210 V+ Pro was made of 6K carbon fiber.
Integrated 4mm carbon fiber frame arm and lower plate.
Integrated 4mm carbon fiber frame arm and lower plate.
Dual purpose FPV and HD camera mounting solution.
Compact size for 5" propellers, 214mm motor to motor.
Multiple motor mounting holes to fit a variety of motors (M3 and M2 screw mounting patterns).
"Bumpers" on the end of the arms to protect the motor during a crash, just like the QAV250.
Included power distribution board and XT-60 Pig-Tail to power ESCs and FPV flight electronics.
LiPo battery protection plate included.
Support to carry HD camera at 35 degree angle(such as the GoPro 4, Mobius, etc).
Lightweight and rigid
New generation F4 hardware flight controller for FPV race, STM32F405 MCU ,
Frequency up to 168Mhz ,Flight controller firmware is pushing flight controllers to the limit.
Fast loop times enable sophisticated filtering to deliver the locked in, flying on rails feeling.
Betaflight easily delivers 125us (or faster) loop times on the F4 flight controller
Frequency up to 168Mhz ,Flight controller firmware is pushing flight controllers to the limit.
Fast loop times enable sophisticated filtering to deliver the locked in, flying on rails feeling.
Betaflight easily delivers 125us (or faster) loop times on the F4 flight controller
Buzzer Port and LED strip Port
MPU6000 SPI Bus
128Mb Flash(16M Byte)
128Mb Flash(16M Byte)
SBUS/PPM input (Pinheaders)
DSM/DSM2/DSMX input(Plug)
6PWM output (Pinheaders)
Only 36x36mm, mount holes 30.5x30.5mm
All through hole pin header Design -no Sh connectors
STM32 F405 MCU, Runs Raceflight CC3D REVO firmware
Works Perfect with Raceflight - preloaded with Raceflight or BetaFlight 3.0
direct Lipo input :1.5A Built-in onboard regulator - NO BEC needed.
Connect direct to a Lipo to power the board and Rx
RaceFlight or Betaflight support on an STM32 F3 with a SPI based MPU6000
gyro - low noise gyro will not force one to soft-mount the fc
All through hole pin header Design -no Sh connectors
STM32 F405 MCU, Runs Raceflight CC3D REVO firmware
Works Perfect with Raceflight - preloaded with Raceflight or BetaFlight 3.0
direct Lipo input :1.5A Built-in onboard regulator - NO BEC needed.
Connect direct to a Lipo to power the board and Rx
RaceFlight or Betaflight support on an STM32 F3 with a SPI based MPU6000
gyro - low noise gyro will not force one to soft-mount the fc
RPM/V: 2600KV
Height: 31.5mm
Width: 27.9mm
Shaft diameter: M5
Motor mount hole size: M3
Weight: 28 grams
Voltage: 2-4S
Battery: 2-4S lipo battery
Internal resistance: â¦
Usage: for 250 260 280 Multirotor Frame Kit
Model: RS30A V2
Input Voltage: 2-4S
Con.Current:30A
Peak Current(10s):35A
BEC:NO
Programming :YES
Net Weight: 6.26g
Size:28*13mm
Chips on EFM8BB21F16, 48MHZ Greatest .
BLHeli_S is designed for superior performance in multirotors, and uses hardware generated motor pwm for smooth throttle response and silent operation.
Small size combined with light weight for easy installation.
The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us).
The input signal is automatically detected by the ESC upon power up.
All codes use damped light mode.Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling
The code supports features to prevent sync loss. There are tuneable parameters that can make the code run well even in the most demanding situations, although default settings will work
excellently in normal operating environments
The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttle. This can be very useful for finding lost crafts.
7 Pairs Kingkong 5X4X3 5040 5 Inch 3-Blade Rainbow Colorful Propeller
Color: Red, Orange, YelloW, Green, Pink, Purple and Black
Quantity: 7 Pairs (One Pair Each Color)
Mounting Hole: 5mm
Weight: 119g
Size: 140*140*65 mm
Package included:
1 x Realacc X210 V+ 6K carbon fiber frame kit
1 x PDB 5V & 12V
1 x CC3D REVO F4 STM32F405 Flight Controller
2 x BR2205 2600KV Brushless Motor CW
2 x BR2205 2600KV Brushless Motor CCW1 x CC3D REVO F4 STM32F405 Flight Controller
2 x BR2205 2600KV Brushless Motor CW
4 x Racerstar RS30A V2 30A ESC
7 x 5040 CW Propellers
7 x 5040 CCW Propellers
