Specification:

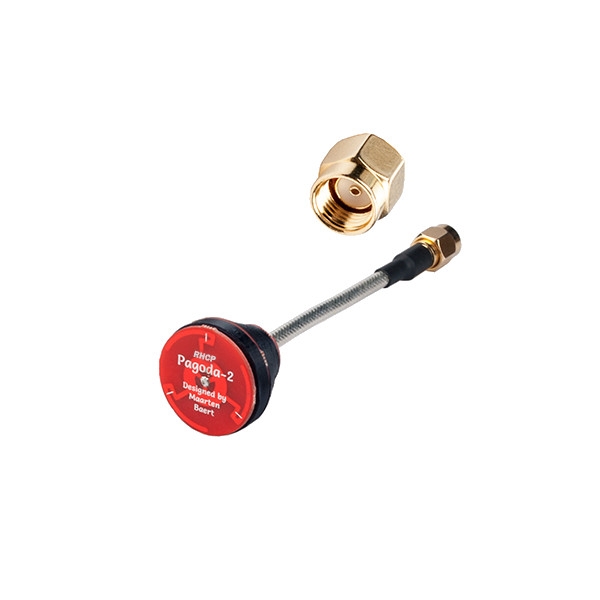

Pagoda-2 antenna:
Color:Red
Center frequency: 5.8 GHz
Gain: 1.2 dBi
Polarization:RPCH/LPCH
Connector:RP-SMA/SMA Male
Axial ratio: < 1.3
Bandwidth: 500 MHz (5.55 - 6.05 GHz)
Radiation efficiency: 95%
Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Size: 69mm
Diameter: 22.5mm
net Weight: 7.5 g
Protective Cover:
Material: Hard Nylon
Color:Black/Green
Net weight: 3.2 g
Features:
1.Light Weight,extremely durable.
2.The diameter is just 22.5 mm, smaller than current omni antennas.
3.Nearly Perfect axial ratio,smoother radiation pattern.
4.Update version, Better then most other antenna.
5.These values are based on simulation, actual measurements are below (they are very similar).
6.The center frequency may shift a bit between batches as a result of variations in the dielectric constant of FR4.
7.The circular polarization antenna design, polarization adjustment will weaken the signal attenuation, Strong penetrating ability, small magnetic interference, making the signal more stable.
8.Using AB glue to fix the protective cover to avoid shaking or falling off.
9.The antenna protector keep the antenna away from breaking and extend the antenna life.
Package Include:
1 x Pagoda-2 Omni Antenna
1 x Pagoda-2 Omni Antenna protector
