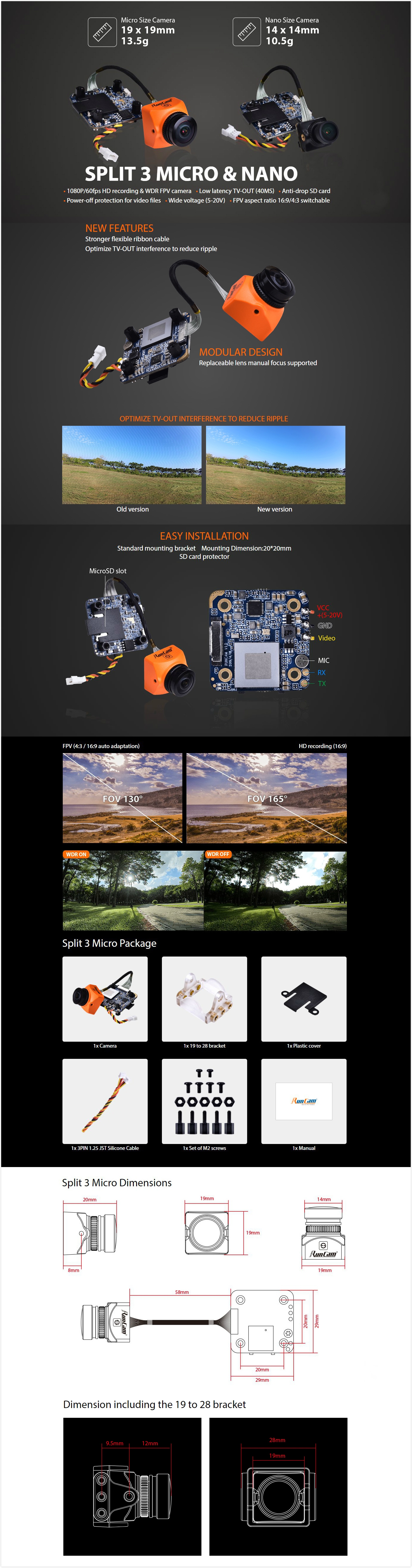

Description:
Brand Name: Runcam
Item Name: Split 3 Micro
Color: Orange
Field of View(FOV) : Recording FOV: 165°; FPV FOV: 165°@16:9, 130°@4:3
Video Resolution:1080@60fps / 1080@50fps / 1080@30fps / 720@60fps
Video File Format:MOV
Image Resolution:2 MP
TV Mode:NTSC (720*480) / PAL (720*576) Switchable
Interface:JST 1.25mm / UART
Max Micro SD Card Supported:64G(need Class 6 or above, recommend Class 10 / UHS-I / UHS-II / UHS-III)
Hole Distance of Installation:20*20mm
Dimensions:PCB 29*29mm / Lens Module 19*19mm
Power Input:DC 5-20V(Non-direct power supply from battery. Powered direcly with battery will generate surges and burn the camera.)
Working Current:650mA @5V / 270mA @12V
Weight: 13.5g
Features:
Weight: 13.5g
Features:
- 1080P/60fps HD recording & WDR FPV camera
- Low latency TV-OUT (40MS)
- Anti-drop SD card
- Power-off protection for video files
- Wide voltage (5-20V)
- FPV aspect ratio 16:9/4:3 switchable
- Stronger flexible ribbon cable
- Optimize TV-OUT interference to reduce ripple
- Replaceable lens manual focus supported
- Standard mounting bracket, easy to install
Package Included:
1x Runcam Split 3 Micro FPV Camera
1x 19 to 28 Bracket
1x Plastic Cover
1x 3PIN 1.25 JST Silicone Cable
1x Set of M2 Screws
1x Manual
Package Included:
1x Runcam Split 3 Micro FPV Camera
1x 19 to 28 Bracket
1x Plastic Cover
1x 3PIN 1.25 JST Silicone Cable
1x Set of M2 Screws
1x Manual
