RunCam TX100 Nano 5.8G 37CH 25mW/100mW VTX Smart Audio IPX IPEX for RC Tiny Drone Mini FPV Camera FC - 14.00 €


RunCam TX100 Nano 5.8G 37CH 25mW/100mW VTX Smart Audio IPX IPEX for RC Tiny Drone Mini FPV Camera FC
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

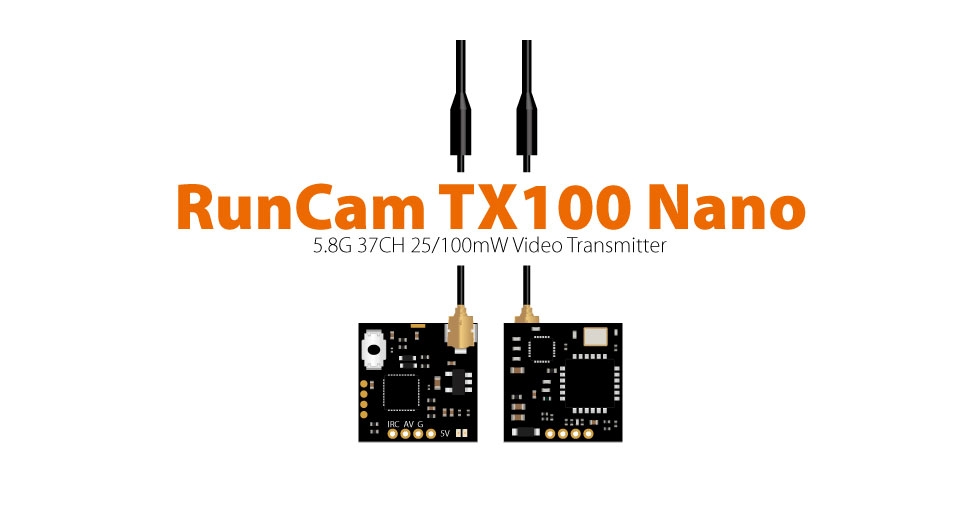

RunCam TX100 Nano 5.8G 37CH 25mW/100mW VTX Smart Audio IPX IPEX for RC Tiny Drone Mini FPV Camera FC

Parameter

Model RunCam TX100 Nano
Frequency Channel 5.8G 37CH
Output Power 25mW / 100mW
Working Current 5V@ 150~300mA
Voltage in 4.5-5.5V
Video Input Impedance 75 Ohm
Antenna U.FL 5.8G 2dB Omni antenna
Weight 1.5g (with antenna)
PCB Size 14mm*14mm


Download: User Manual

Frequency
Channel CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
A(1) 5865 5845 5825 5805 5785 5765 5745 5725
B(2) 5733 5752 5771 5790 5809 5828 5847 5866
E(3) 5705 5685 5665 5885 5905
Airwave(4) 5740 5760 5780 5800 5820 5840 5860 5880
Race Band(5) 5658 5695 5732 5769 5806 5843 5880 5917


Package Included
1 x RunCam TX100 Nano VTX
1 x IPX antenna
1 x Diy cable wire
