Notice: Upgare with new version.
1. New Runcam Swift Mini 2 Camera
2. DALProp 5045 Propeller
2019/05/23 BeiJing
Specification:
Brand Name: Skystars
Model: Star-lord 228

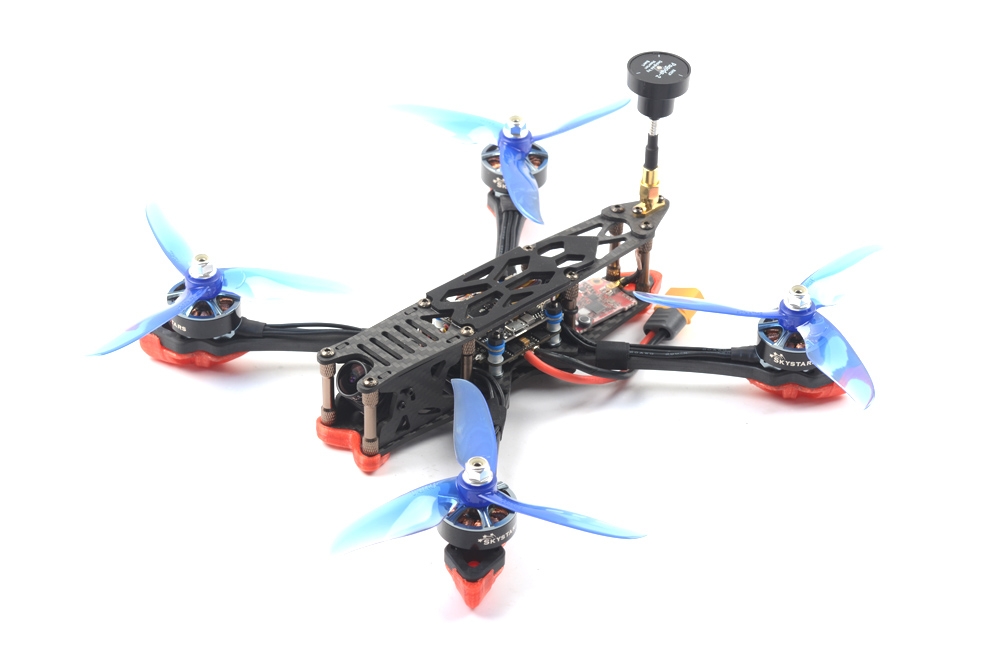

Item Name: 228mm F4 OSD FPV Racing Drone
Drone Version: PNP ( Without Receiver)
Compatible Flysky Receiver
Compatible Frsky Receiver
Material: 3K Carbon Fiber
Frame Wheelbase: 228mm
Frame Arm Thickness: 6mm
Top Plate Thickness: 2mm
Bottom Plate Thickness: 2.5mm
Side Plate Thickness: 2mm
Drone Weight: 364g ( Not included battery)
| Flight Controller |
Item Name: Micro F4 FC AIO OSD BEC ( D-Shot Version) MPU: MPU6000 CPU: STM32F405RGT6 Input Voltage: 2 - 5S Lipo Built-in Betaflight OSD to adjust PID BEC Output: 5V 3A Size: 36.5x36.5mm Mounting Hole: 30.5 x 30.5mm board, M3 Support Subs / PPM / DSMX receiver |
| Brushless ESC |
Item Name: 40A BLheli_32 32bits DShot1200 4in1 ESC Input Voltage: 2 - 5S Lipo battery Constant Current: 40A Peak Current: 50A BEC Ouput: 5V 1.2A CPU: STM32F051 BLHELI_32 firmware Size: 36 x 36mm (main board) Mounting Hole: 30.5 x 30.5mm, M3 MOS Tube: TOP QUALITY MOSFET Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150 / 300 / 600 / 1200, forward and reverse |
| Brushless Motor |
2306 2600KV Race Edtion Brushless Motor |
| Propeller |
DALProp 5045 Propellers |
| FPV Transmitter |
Item Name: 5.8G 40CH 25/200/500/800mW Switchable VTX Output power: 25mW / 200mW / 500mW / 800mW switchable Control mode:button OR Channel changes and Pitmode setting through PWM With a microphone, you can switch the audio flexibly BAT: 7 - 26V, BEC 5V 1A Video system: NTSC / PAL Antenna: MMCX Frequency: 5.8GHz 5 bands 40channels Dimension: 36 x 36 x 4.85mm Mounting Hole: 30.5mm x 30.5mm |
| FPV Camera |
Item Name: 600TVL 1/3 CCD WDR Camera Model: Runcam Swift Mini 2 Image Sensor: 1/3b inch CCD Sensor 4/3 Horizontal Resolution: 600TVL Lens: 2.3mm Lens(Default)(FOV 135 degree) Signal System: PAL/NTSC S/N Ratio: more than 60dB(AGC OFF) Electronic Shutter Speed: PAL: 1/50 100,000; NTSC: 1/60 100,000 AutoGain Control(AGC): YES Back light compensation(BLC): YES Min.illumination: 0.01Lux/1.2F WDR: D-WDR DNR: 2DNR Day / Night: Color / Auto / Black and White Power: DC 5 to 40V |
| Receiver |
PNP Version: ( Without Receiver) Compatible Flysky Version: with Flysky Receiver Compatible Frsky Version: with Frsky XM+ Receiver |
Package Included:
1x Skystars Star-lord 228 FPV Drone
