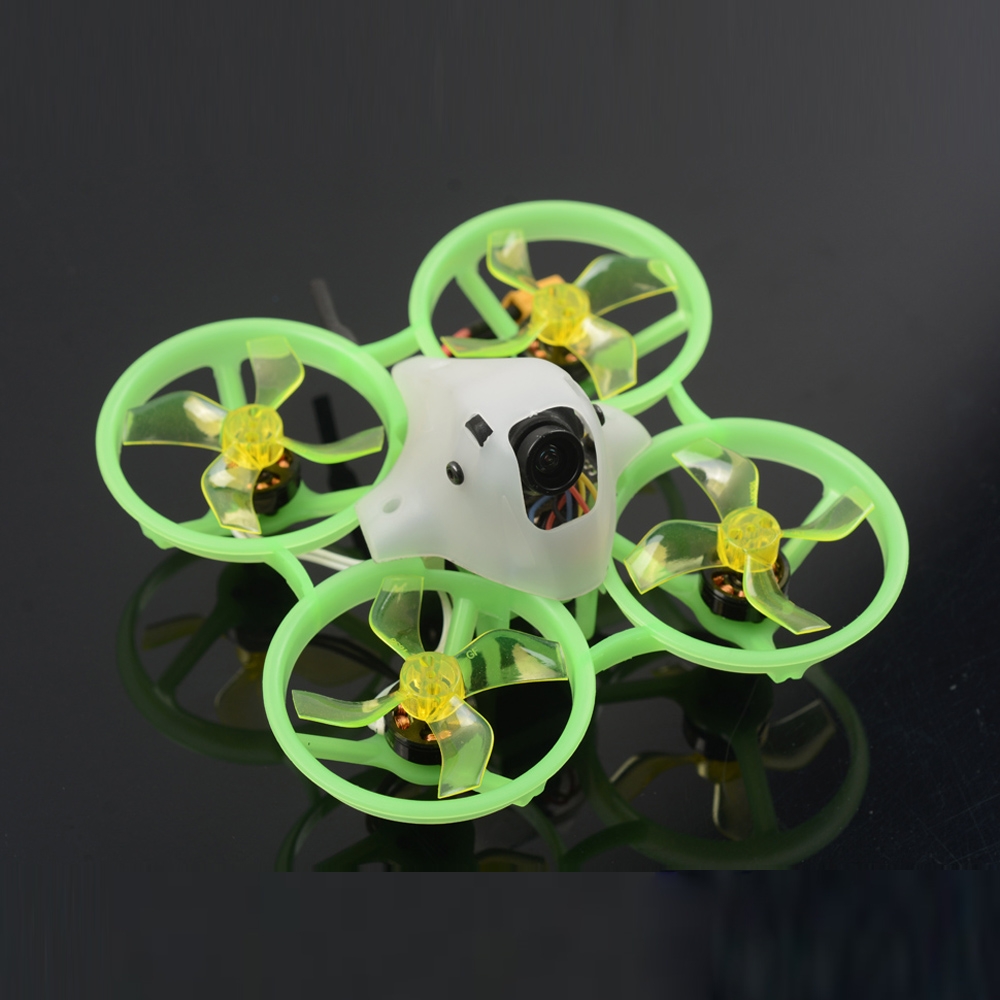

Skystars Tiny Frog 75X 75mm 2S Whoop FPV Racing Drone BNF AIO CrazyFrog FC OSD w/SPI Frsky Receiver 1-2S 5A ESC Runcam Nano2 Camera - 105.00 €

This AIO F4 FC is suitable for a lighter 2S whoop drone, like 65X,75X etc. It integrated a Betaflight F411 processor FC, Betaflight OSD, SPI Frsky receiver and 1-2S 5A ESC. So the 2S drone could save many weight for a faster fly experience.

Specification:
Brand name: SKYSTARS
Item name: TinyFrog 75X 2019 FPV freestyle Racing Drone BNF
Wheelbase: 75mm
Input voltage: 2S

Specification
CRAZYFROG F4 TinyFrog 2S Flight Controller	CPU: STM32F411CEU6 (100MHZ ) Six-Axis: MPU-6000 triaxial accelerometer / triaxial gyroscope (SPI connection) Size: 26mm x 26mm, fully compatible with the all whoop drone mounting pattern, recommend the TinyFrog75X frame. Firmware version: betaflight_matekf411rx_4.0.0 (Development Version) OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode) Built in SPI Frsky D16 protocol native receiver, compatible with almost ALL Frsky FCC radios(e.g. Taranis X9D/X9D Plus/X7) or Frsky compatible transmitter module. Not compatible with Frsky LBT protocol. Power Cable: 50mm, with AMASS XT30 connector Weight: 4.5g DIAGRAM FOR F4 2S AIO FC (BUILT-IN FRSKY RX)
5A ESC	Built-in ESC with 5A continuous and peak 6A current Power supply: 1-2S Support BLHeliSuite programmable Factory firmware: S_H_50_REV16_7.HEX Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM Status LED There are 3 LEDs on the bottom of the board to indicate the status, including Receiver LED ( Green), FC Status LED ( Red ) and FC Power LED ( Blue ).
Frsky SPI Receiver	Currently the built in Frsky receiver is compatible with Taranis, Taranis Plus, X9E, Horus X12S, XJT Modules. Pay attention, this is a SPI connection receiver. In Betaflight Configuration, it should be setted as FRSKY_D receiver (aka Frsky D8 mode) or FRSKY_X receiver (aka Frsky D16 mode) in SPI RX mode. The Frsky D16 unstable connection issue is totally resolved since Betaflight 3.4.1. Nowadays, the default configuration from factory is Frsky D16 mode (FRSKY_X). Note: If you are using EU-LBT firmware radio controller, you might find that you can't bind successfully to this SPI Frsky receiver. Here are the solutions we provide for you. Binding Procedure The binding procedure is reversed as usual. No need to click the bind button when power on. Power on the board, either by connecting the battery or USB power. Then the green receiver LED start to flash. The second step, click the bind button for 3s. Then the green receiver LED will be solid on. This means that the receiver is in bind mode and you could start to bind your radio transmitter. For detail procedure of binding, please check the SPI Frsky Receiver Binding Manual.
Runcam Nano2 Camera	Image Sensor: 1/3" CMOS Horizontal Resolution: 700TVL Lens: 2.1mm(M8) FOV 155° Signal System: NTSC / PAL S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: [email protected] D-WDR: Auto Day/Night: Color Power: DC 3-5.5V Current: 110mA@5V Housing Material: ABS Net Weight: 3.2g Dimensions: L14mm*W14mm*H16mm

Package Included:
