Skyzone SKY04L 1280X960 5.8GHz 48CH Steadyview Receiver FPV Goggles Support DVR With Headtracker Fan For RC Racing Drone - 379.00 €


Skyzone SKY04L 1280X960 5.8GHz 48CH Steadyview Receiver FPV Goggles Support DVR With Headtracker Fan For RC Racing Drone
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video


Overview:

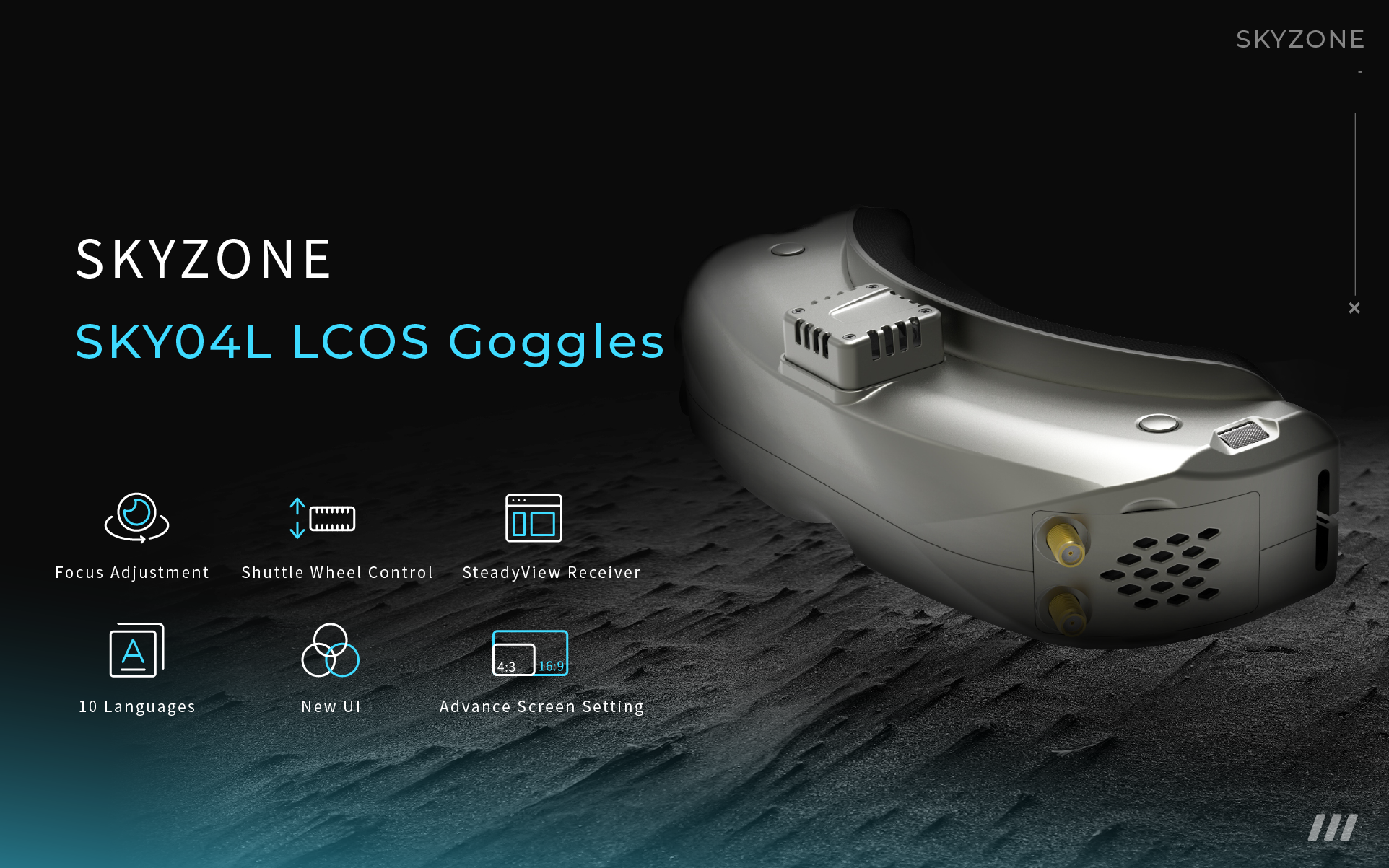

The SKY04L is lite version(also LCOS version) of SKY04 series.


With focus adjustment, 1280*960 high resolution LCOS screen , the screen have vivid color , pilot can see more details in the racing .


With steadyview receiver , the receiver merge two signals to one, avoid image tearing and rolling, make image more stable and clear in challenging condition.


The new designed optics have focus adjustment feature and 39 degree field of view, give pilots more immersive FPV experience.


The new OS with 10 languages to set select, pilot have no trouble with the menu system, with shuttle wheel and new user interface, pilot can set all the settings just by rolling the wheel without taking off the goggle.


Specifications:

Brand Name: Skyzone

Item Name: SKY04L

Color: White

Screen: LCOS

Resolution: 1280X960

FOV(Diagonal): 39°

Aspect Ratio: 4:3/16:9

Focus: -6~+6 adjustable

Interpupillary Distance(IPD): 58-71mm

Receiver: 5.8Ghz 48CH Steadyview Receiver

Language: 10 Language

Power Supply: DC 6.5-25.2V/USB 5V

Power Consumption: 720mA at 12V

DVR: H264, 30fps,MOV 6Mbps, SD Card support up to 128Gb

Head Tracker: 3-axis Accelerometer, 3-axis gyroscope

Dimentions: 185*75*67mm

Weight: 267g


Features:

- 5.8G 48CH steadyview receiver

- Focus Adjustment -6~+6

- FOV 39°

- LCOS 1280*960 High Resolution Screen

- Dual Module Bay

- Bulit-in with de-fogging and heat-sink fan

- IPD range 58〜71mm

- Channel scanning

- Type C connector to upgarde the firmware or power goggle

- HDMI in

- 2S-6S wide voltage support

- Build in Headtracker

- H.264 DVR, SD card support up to 128GB


English Manual, Click Here


Package Included:

1x SKY04L Goggles

1x Steadyview Receiver Module

2x Faceplate (wide and narrow)

1x Sponge

1x Zipper case

1x Power cable

1x Headtracker cable

2x 5.8GHz 2dB antennas

1x Video/Audio Cable

1x USB-C Cable

1x Uer Manual
