SMAJ SMA Male to MMCXK/MMCXJ RF Coaxial Connector Adapter for RC Drone - 2.00 €

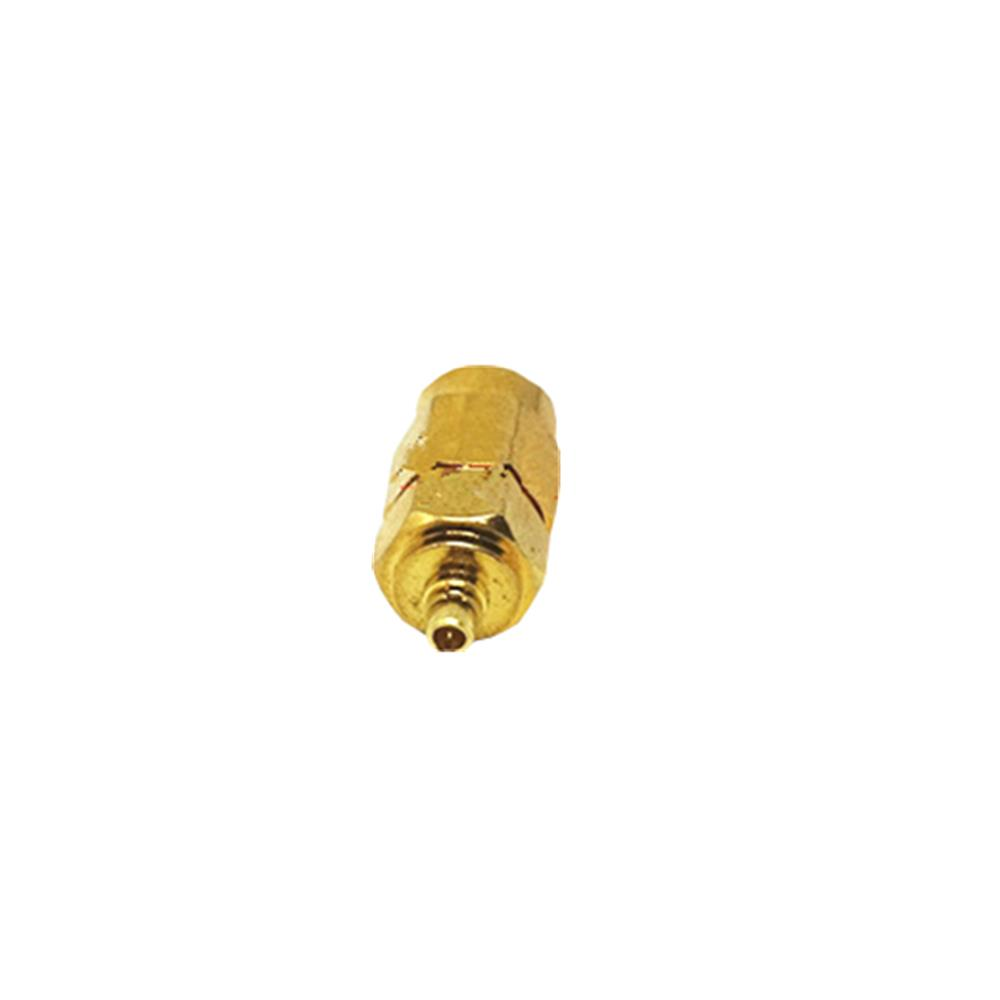

SMAJ SMA Male to MMCXK/MMCXJ RF Coaxial Connector Adapter for RC Drone
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

Specification:
Item name: Coaxial Connector Adapter
Connector: SMA Male to MMCXK/MMCXJ (Optional)
Temperature range: -65 to +165 °C (PE Cable -40 to +85 °C)
Vibration: MIL-STD-202, Method 213
Characteristic impedance: 50Ω
Frequency range: DC ~ 12.4GHz (semi-rigid cable 0 ~ 18GHz)
Operating voltage: 335V max (effective value)
Withstand voltage: 1000V rms (minimum sea level)
Contact resistance:
Between inner conductors: ≤ 3 mΩ
Between outer conductors: ≤ 2 mΩ
Insulation resistance: ≥ 5000MΩ
Insertion loss: ≤0.15 dB/6GHz
Voltage standing wave ratio straight flexible cable: ≤1.10+0.002f
Semi-rigid cable: ≤1.05+0.001f
Curved flexible cable: ≤1.20+0.003f
Semi-rigid cable: ≤1.10+0.001f
Durability: ≥500 cycles

Package included:
1 x SMAJ SMA Male to MMCXK/MMCXJ RF Coaxial Connector Adapter for RC Drone
