SPC Maker 220AR 220mm RC FPV Racing Drone BNF Omnibus F4 30A BLheli_s 40CH RunCam Swift 2 600TVL - 253.39 €

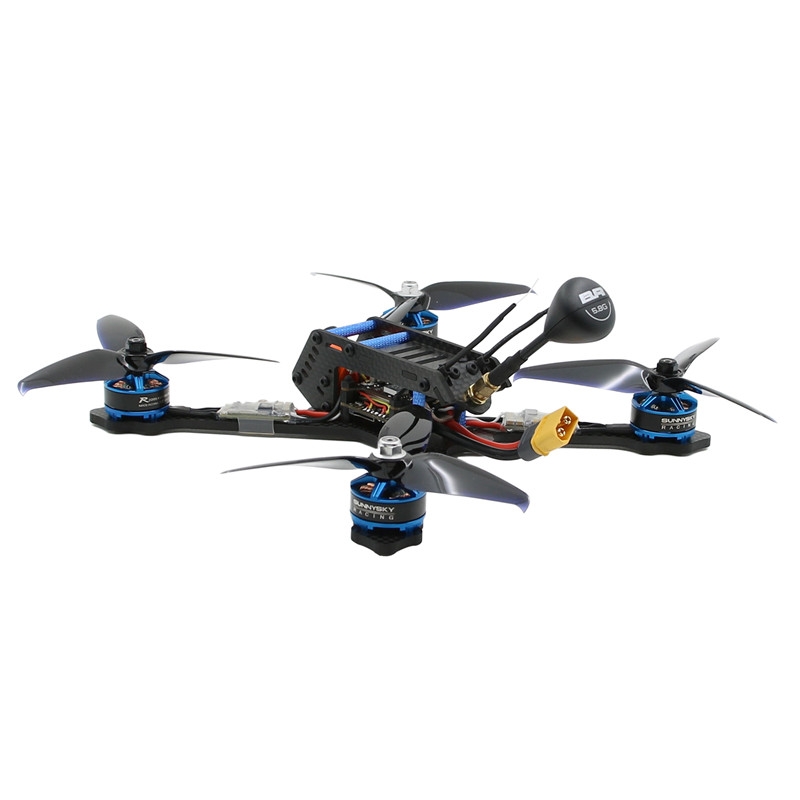

SPC Maker 220AR 220mm RC FPV Racing Drone BNF Omnibus F4 30A BLheli_s 40CH RunCam Swift 2 600TVL
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

SPC Maker 220AR 220mm RC FPV Racing Drone BNF Omnibus F4 30A BLheli_s 40CH RunCam Swift 2 600TVL




Specification:
Brand name: SPC Maker
Product model: SPC 220AR
Wheelbase: 220mm
Size: 187mm*187mm*40mm
Bottom plate: 3mm 3K carbon fiber
Weight: 325g (without battery)
Flight weight: 485g(Include battery)
Motor: 2205KV 2300 brushless motor
ESC: 30A BLheli_s ESC (2-6S LiPo)
Propeller: 5 inches 3-blades propeller
Receiver: Frsky/DSMX/Flysky/Futaba (optional)
Camera: RunCam Swift 2 1/3 "600TVL FPV camera 2.3mm lens CCD camera
VTX: 5.8g 25MW-300MW 40CH Video transmitter
Flight controller: Omnibus F4
OSD: Betaflight OSD
Firmware of flight controller: betaflight_3.1.7
Flight time: 5 minutes
Buzzer Ready
Battery: 14.8V 1300mAh 120C lipo battery
Packing weight: 735g
Packing size: 245*245*75mm

Ominibus F4 flight controller:
Input: 2-6 Cell LiPo
BEC: [email protected]
Firmware: OMNIBUS F4

Features:
-STM32 F405 MCU
-MPU6000 6 axis SPI Gyro & Accelerometer
-Dshot support
-Drag and Drop OSD configured via Betaflight Configurator
-SBUS/PPM AND Spketrum dsm-x Ports
-On-board Video Filter(only can supply 5V to VTX and Camera)

30A BLheli_s ESC:
input voltage: 2-6 lithium batteries
Sustained current: 30 a.
Maximum current: 40A 10 seconds or more
Size: 14.8x29x5mm
Weight: 7.9g
MCU: EFM8BB21
Application: BLHeli_S
Drive types: independent half bridge driver chip + N channel MOS tube
Support OneShot125 OneShot42, MultiShot, Dshot150, Dshot300, Dshot600

5.8G 25mW/300mW 40CH VTX:
Input voltage: 7.4-24v
Current: 210ma/12V@300mw
Power: 0/25mw/300mw
Frequency range: 40CH/ 5645mhz-5945mhz
Setup: button+digital tube
Output voltage: [email protected]
Size: 36x36x8mm
Mounting hole distance: 30.5mm

RunCam Swift 2:
Image Sensor: 1/3" SONY Super HAD II CCD
Horizontal Resolution: 600TVL
Lens: 2.3mm /150°
Signal System: NTSC
S/N Ratio: >60dB (AGC OFF)
Electronic Shutter Speed: 1/60~100,000
Auto Gain Control (AGC): Yes
Back Light Compensation (BLC): Yes
Min. Illumination: [email protected]
Day/Night: Color/Auto/B&W
Power: DC 5-36V
Net Weight: 14g
Dimensions: 28.5mm*26mm*26mm

Compatible receiver:
1.DSM2 Receiver Support Spectrum/JR(DSM2 protocol) DEVO10/DEVO 7E(with deviation firmware).
2.Frsky Receiver Support FRSKY taranis X9D/X9D PLUS(D16 mode),and XJT (D16 Mode),DJT DFT DHT Transmitter.
3.Flysky Receiver Support FS-I6FS-I6X.FS-I6S.FS-TM8.FS-TM10.FS-I10 and other second-generation AFHDS 2A protocol remote control
4.Futaba Receiver Support TM7,TM8, TM10, TM14 T6EX-2.4G,7C-2.4G,T8FG,T10CG ,T12FG.T14SG.

Receiver Setup and Binding Methods

Package include:
1x SPC Maker 220AR Frame
1x Omnibus F4
1x Frsky/DSMX/Flysky/futaba(optional receiver)
4x 2205KV2300 brushless motor
4x 30A BLheli_s ESC (2-6S LiPo)
4x 5 inches 3-blades propeller CW
4x 5 inches 3-blades propeller CCW
1x RunCam Swift 2 1/3 "600TVL FPV camera 2.3mm lens CCD camera
1x 5.8G 25mW-300mW 40CH VTX
2x 14.8V 1300mAh 30C lipo battery (comes without charger)
2x 35mm*60mm back to back with 3M rubber magic belt
4x 3*100mm nylon band
1x 20mm*250mm magic band
1x buzzer
