Specification of Power Supply:
Voltage Range: AC 110-220V
Current: 16.6A
Power: 400W
Size: 222×70×38.8mm
Weight: 668.5g
Features of M8S Charger:
2.4" Color Screen
Battery Charger
Cell Checker
Servo Tester
PWM,PPM.SBUS Input/output Receiver & Flight control tester
Viable AMp/volt DC Power supply (Required external DC input)
Specification of M8S Charger:
Input: 7-30V @MAX18A
Battery Type: LiPo LiHV LiFe Lion @ 1-8S NiMh @1-20S Pb @1-12S
Bal Current: 800mA @2-8S
Accuracy: ±0.01V
Charging Power: 0.1-18A @ 400W
Discharging Power: 0.1-18A @ 400W
Recycle Mode: 0.1-5A @ 20W Normal Mode
USB: 2.1A @ 5.0V upgrade
Size: 98mm*68mm*35mm
Weight: 170g
Measuring of M8S Charger:
PWM 880us-2200us @20-400Hz
PPM 880us-2200us*8Ch @20-50hz
SBUS 880us-2200us*16ch @20-100Hz
Voltage 1.0V-5.0V @1-8S
IR 1-100mR @1-8S
Output of M8S Charger:
PWM 500us-2500us @20-1000Hz
PPM 880us-2200us*8ch @50hz
SBUS 880us-2200us*16ch @74Hz
Power 1-18A @ 1-30V Mode: CC+CV
Display:LCD TFT 2.4 inch 320*240 resolution

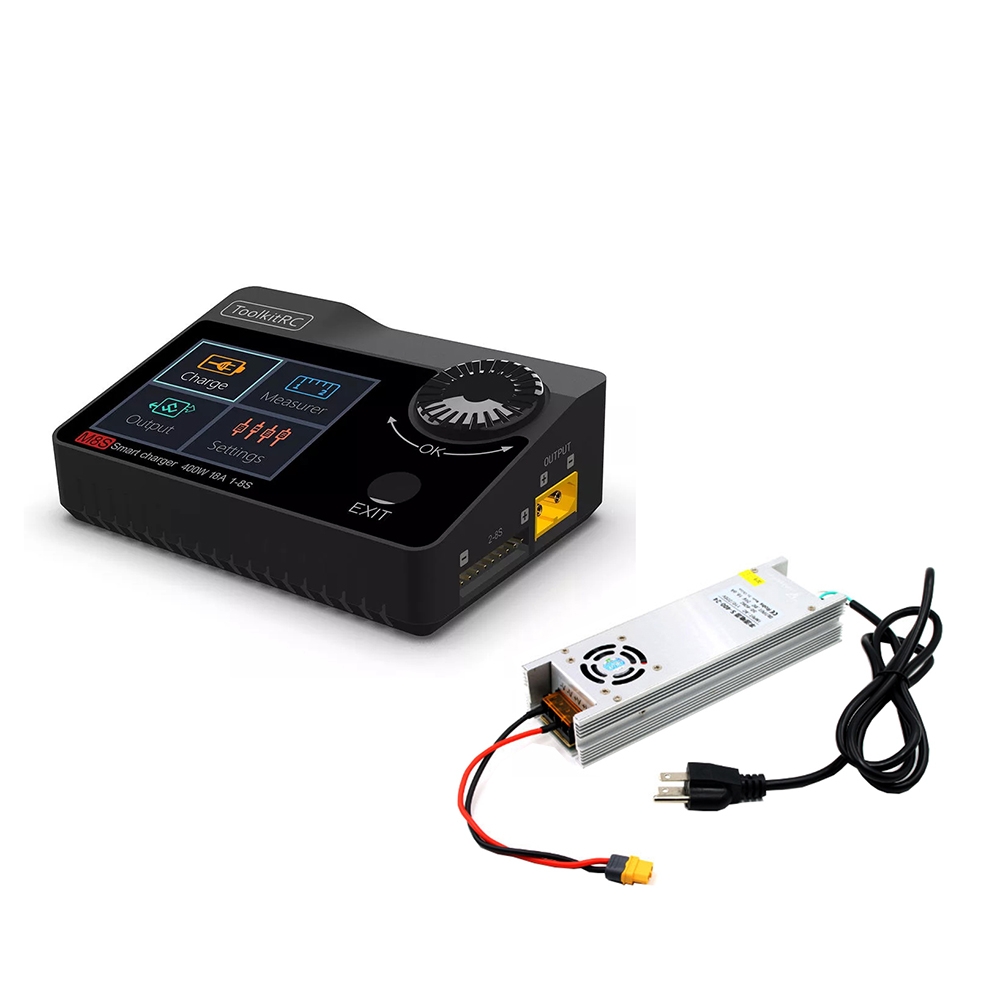

Packaging included:
1X ToolkitRC M8S Charger
1X Power Supply
