TRUERC X-AIR 5.8GHz 10dBi Gain Directional FPV Antenna With RP-SMA Connector For DJI FPV Goggles - 59.00 €

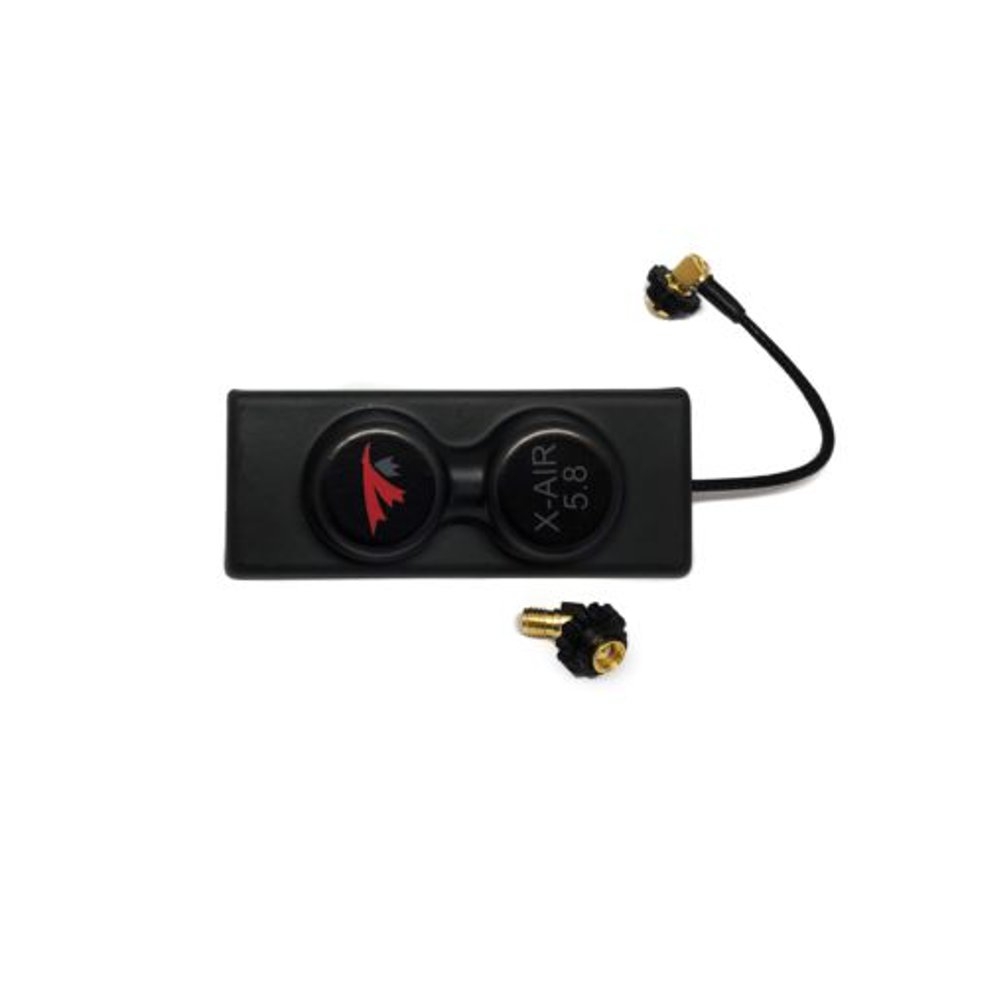

TRUERC X-AIR 5.8GHz 10dBi Gain Directional FPV Antenna With RP-SMA Connector For DJI FPV Goggles
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video


Description:
TrueRC did it again with this versatile directional antenna for the DJI FPV goggles. Thx to smart design, you can multiply the range of your system in style. It can be used alone, horizontally, connected to the two top SMA. Or it can be used in pair, flipped vertically and connected to the two SMA on each sides, for maximum video link resiliency.
Specifications:
Bandwidth: 5.1GHz-6.0GHz
Gain: 10 dBic
Polarity: LHCP,RHCP (optional)
Beam-width*: 120deg
Beam-width @-3dB**: 68deg.
Connector: 2x RP-SMA (direct + cable)
Dimension: 104mm x 41mm x 30mm
Weight 25g
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

Package Included:
1x TRUERC X-AIR FPV Antenna
