Description:
This module belongs to the short-distance micro-power radio communication equipment sharing frequency with non-wireless communication equipment such as industry, science and medical in the frequency band 5255-5865MHz, and can transmit video in a limited range. Take low-power design, integrate VCO, PLL, broadband FM video demodulation. To make the module smaller, take the plug-in package form to facilitate the user's installation requirements. The application of this module requires only a simple connection to the power supply, video cable, and the antenna can be used to transmit signals.
Specifications:
Item Name: TS582S
Frequency: 5.8G
Channel: 48CH
Power: 600mW
Input Voltage: 7-23V
Temp.: -10 - 85â
Antenna: RP-SMA
Temp.: -10 - 85â
Antenna: RP-SMA
Antenna Gain: 2db
Video Bandwidth: 8M
Audio Bandwidth: 6.5M
Transmission Range: 100m
Size: 36x20x10mm
Weight: 8.6g
Package Included:

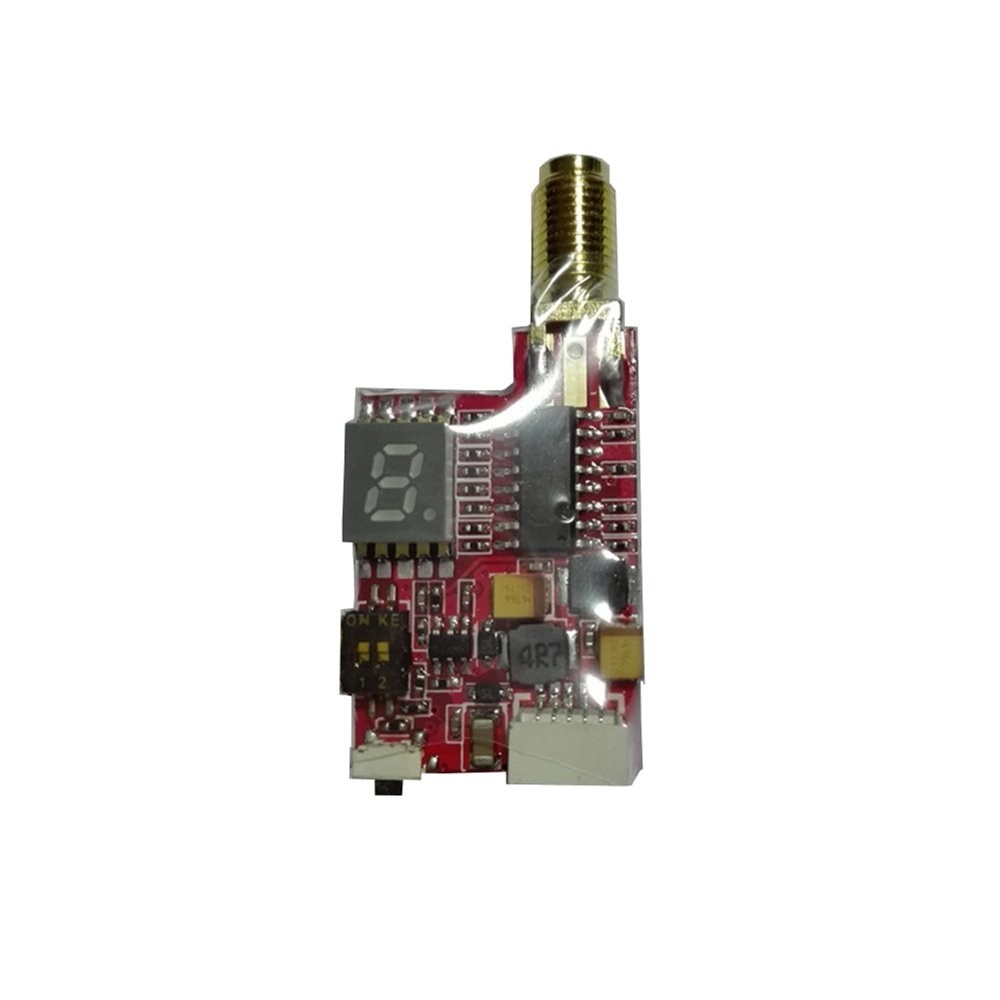

1x TS582S 5.8G 48CH 25mW/200mW/600mW Switchable Mini FPV Transmitter
Package Included:
1x TS582S 5.8G 48CH 25mW/200mW/600mW Switchable Mini FPV Transmitter
