Specifications:
Brand name: TTSRC

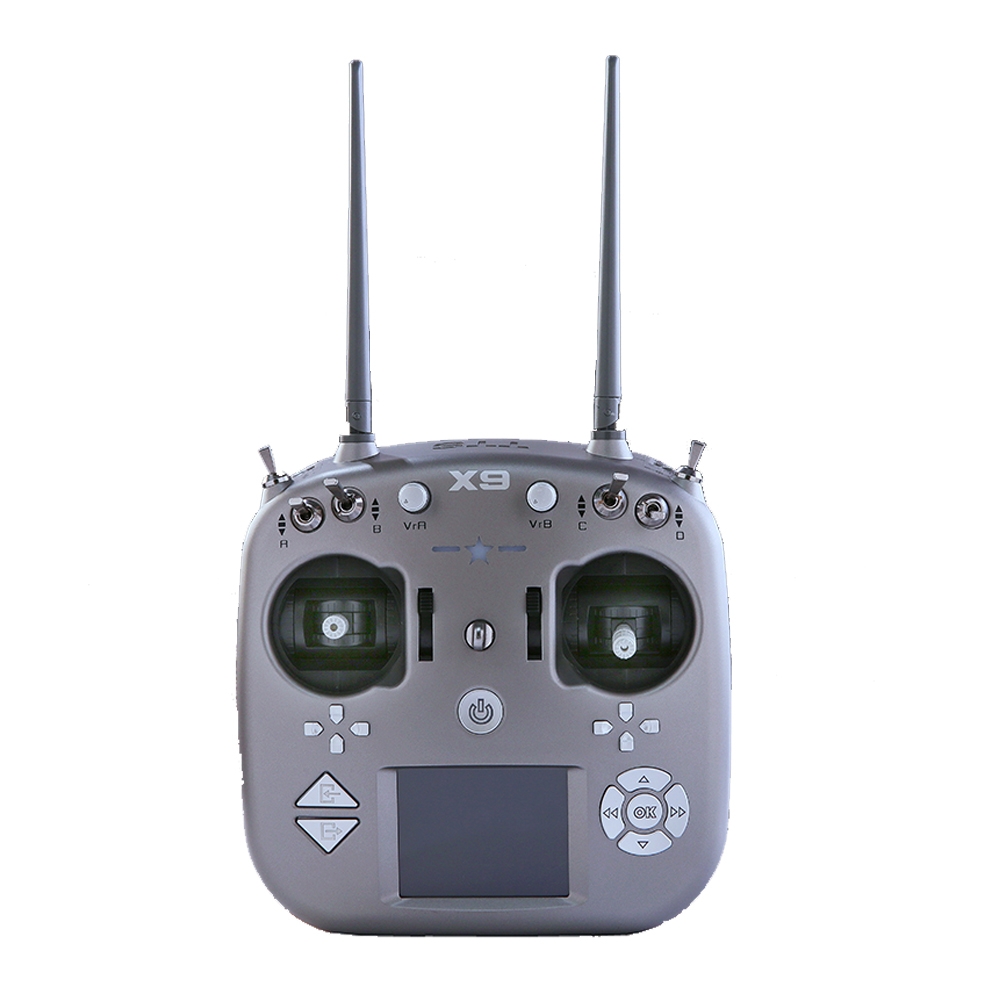

Item name: X9 Transmitter and X9D Receiver
Number of channels: 9 channels
Item name: X9 Transmitter and X9D Receiver
Number of channels: 9 channels
Operating voltage range: 7~18V
Operating current: 190mA
Transmission frequency: 2.4GHz
Transmitter Size: 175*175*60 mm
Antenna: 130mm
Weight: 720g
Weight: 720g
Receiver Size: 25*47*14 mm
Antenna: 150 mm
Weight: 15g
Weight: 15g
Spreading mode: AT-FHSS frequency hopping
Transmit power: less than 100mW (20dbm)
Receiver sensitivity: -107db
Display: 2.8-inch true color screen, resolution 320*240
Maximum transmission distance: 1 km on the ground and 3.5 KM in the air (the actual distance is related to the flight environment)
Support model: helicopter, fixed wing, car, boat, drone
Compatibility: TTSRC series receivers, X9D, X7D, X6D
Features:
Features:
One-touch switching Mode1 or Mode2
Ergonomic and compact design
Ergonomic and compact design
Bidirectional 2.4G AT-FHSS Spread Spectrum Technology
9-channel high-speed response mode
Double rocker 8 bearing design
Energy saving and environmental protection
Programmable mixing, curve mixing
Real-time data backhaul
Voice prompt + vibration
Dual antenna high performance receiver
Support S.BUS
4096 high resolution proportional channel
Bright color LCD screen
Package Included:
1 x X9 Transmitter
1 x X9D Receiver
