Specification:
Brand Name: XPKRC
Model: X3

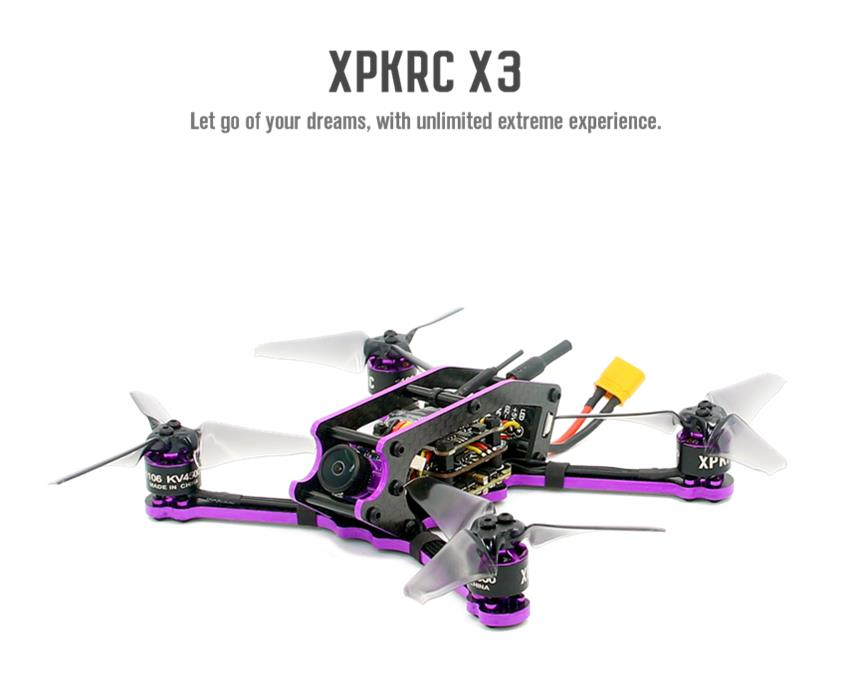

Item Name: 135mm Omnibus F4 FPV Racing Drone
Version: PNP ( Without Receiver)
Drone Wheelbase: 135mm
Bottom (Arm) Plate Thickess: 3mm
Side Plate Thickness: 2mm
Empty Frame Weight: 22.6g
Drone Weight: 86g ( Not include battery)
| F4 Flight Controller |
Item Name: Omnibus F4 FC AIO OSD BEC Firmware: OmnibusF4 Input Voltage: 2-4S Lipo - w/ Betaflight OSD - [email protected] BEC - MPU6000 6 Aixs SPI Gryro & Accelerometer Size: 27x27mm Mounting Hole: 20x20mm Weight: 3.5g - Support DShot1200 - Support SBUS / PPM / DSMX DSM2 Receiver |
| 20A BL_S 4 in 1 ESC |
Item Name: 20A BLheli_S 4 in 1 ESC Input Voltage: 2-4S Lipo Con. Current: 20A Peak Current: 25A BEC: NO Size: 29x31mm Mounting Hole: 20x20mm Weight: 4.9g - Support DShot150/ DShot300 and DShot600 ( Don't recommend PWM) |
| Brushless Motor |
Item Name: 1106 4500KV Motor Brand Name: SPC Maker |
| 3024 3-Blade Propeller |
Item Name: Emax AVAN Mini 3 Inch Propeller Brand Name: Emax Model: AVAN Mini 3 Inch Color: Transparent Black |
| FPV Transmitter |
Item Name: 5.8G 40CH 25mW / 100mW VTX Input Voltage: 5-6V Operation Current (5.5V): 310mA@25mW ; 350mA@100mW |
| FPV Camera |
Item Name: Runcam Micro Sparrow 2 700TVL Camera Brand Name: Runcam Model: Micro Sparrow 2
Image Sensor: Super WDR CMOS Sensor
Horizontal Resolution: 700TVL
Lens: 2.1mm â(M8)â FOV150°
Screen Format: 4:3
Signal System: NTSC
Mirror/Flip: Available
Integrated OSD: Yes
One Touch Scene Setting: Personal / Lightrax / Outdoor / Indoor / Cloudy / Twilight
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Min. Illumination: [email protected]
WDR: Super WDR
Day/NightAuto
Power: DC 5-36V
Current: 120mA@5V / 50mA@12V
Net Weight: 4.5g
Dimensions: L19mm*W19mm*H17mm
|
Package Included:
1x XPKRC X3 135mm FPV Racer PNP Version
