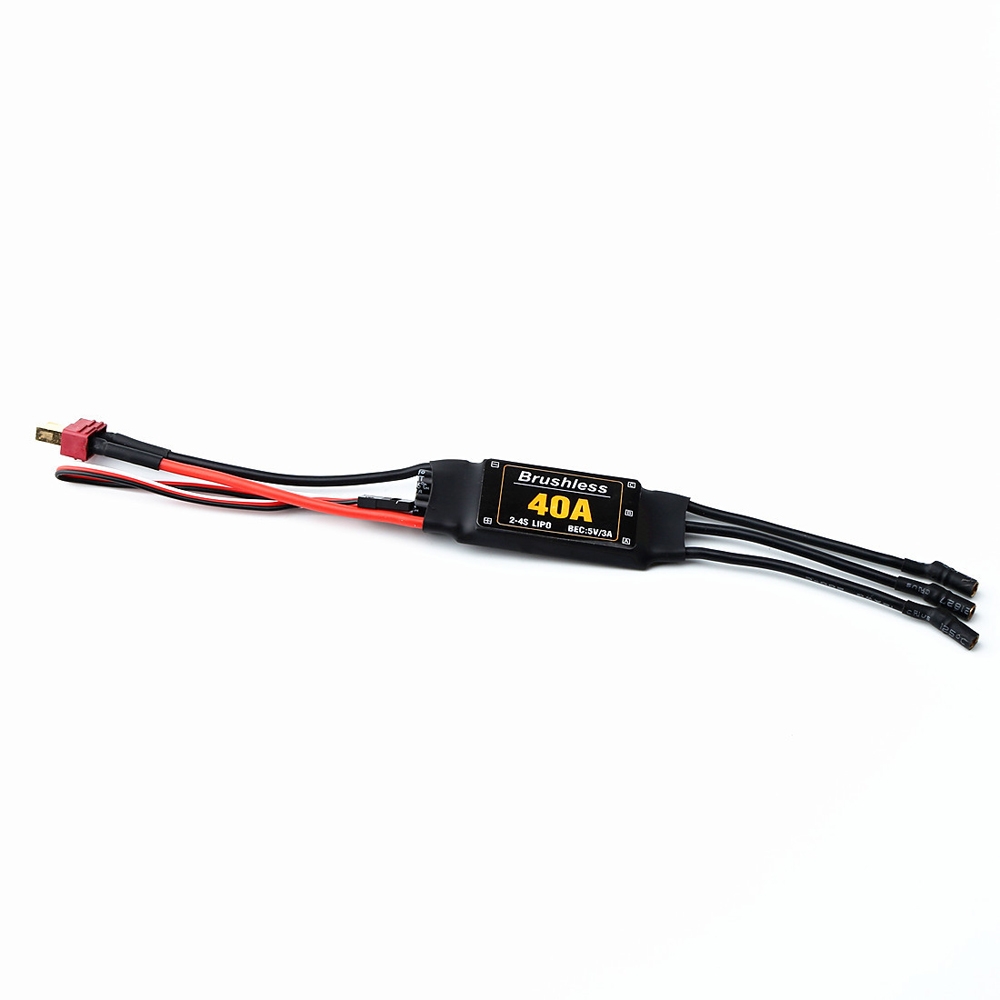

XXD 2-4S 40A Brushless ESC Speed Controller with 5V/3A BEC T lug for RC Airplane Fixed-wing
â
âDescription:
âBrand: XXD
Current: 40A
Output capacity: Continuous current 40A, short-time current 55A (not less than 10 seconds)
Power input: 2-4 lithium batteries (Not Included)
BEC output: 5V@3A (linear regulator mode - linear mode)
Maximum speed: 210,000 rpm for 2-pole motor, 7000 rpm for 6-pole motor, 35,000 rpm for 12-pole motor
Size: (Approx) 68x25x8mm
Features:
* Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
* Throttle calibration funtion: Throttle range can be calibrated to be compatible with different transmitters.
* User programmable.
* Multiple procedure methods supported: transmitter stick, LED procedure Card. Very easy to procedure the ESC at home or at the flying field.
* Compatible with Lipo and NiMH battery.
* Timing can be changed to be suitable for different brushless motors.
* Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
Package Included:
1 x 40A Speed Controller ESC
