Youbi XV-130 130MM F3-ESC-VTX Integraded All in One 5.8G 40CH FPV Racer ARF With 600TVL CAM 3 Cover Shells - 149.99 €


Youbi XV-130 130MM F3-ESC-VTX Integraded All in One 5.8G 40CH FPV Racer ARF With 600TVL CAM 3 Cover Shells
Seller: Banggood,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)
Free shipping aviable, Registered postage from 25 €

Video

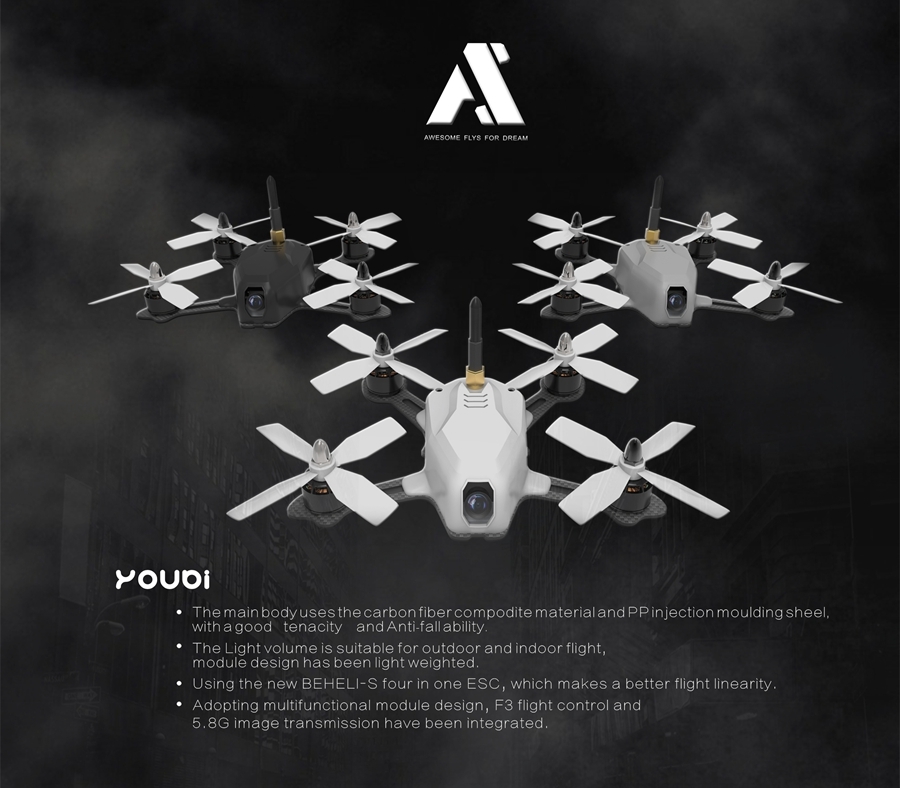

Youbi XV-130 130MM FPV Racer ARF with 4 IN 1 BLHeli_S 20A ESC F3 FC Integraded 40CH VTX 600TVL CAM
It includeds 3 cover : White ,Gray, Black. Default install white cover .






Description : User Manual
Brand Name : Youbi
Item Name : XV-130 ARF
Color : Black, White , Grey(including 3 color cover)
Propeller : 75mm
Wheelbase : 130mm
Fuselage : 150 * 115 * 35mm
Weight : 115g
Motor : 1306 3600kv
ESC : BLHeli-S 20A
Flight Controller : Awesome F3
Camera :
Format : PAL/NTSC
Sensor : CMOS
FOV : 100 degree
Resolution : 600 TVL
Video Output : 1.0V/75P-PΩ
Power Input : DC5V
5.8G VTX :
Transmission Power : 25mW/200mW/400mW
Channel : 40CH
Working Voltage : 5V 1A
Working Frequency : 5600-6000mHz
Antenna Connector :
1306 Motor:
Framework : 12N14P
NO. of Cells : 2-4s
Length : 2mm
KV : 3600
Max Thrust : 265g
Weight : 10g
BLHeli-S 20A :
Copper Thickness : 3OZ
Max. Power Input : 4S
Max. Current : 40A
Processor : EFM8BB2
F3 Flight Controller Integrade 5.8G VTX :
Awesome F3 FC : 5V/15A BEC
F303 Flight Controller with power anti-reverse connection function
Support cleanflight
Integraded 5.8G 40CH VTX, with 4P socket
25mW/200mW/400mW Adjustable
Power Connector : XT-30
Features :
Carbon fiber frame kit and PP material cover ,toughness and impact resistan
Light and small, can play it indoors and outdoors.
Latest 4 in 1 BLHELI-S ESC, better Linear flight,save more room.
Uses multi-functional module disign, integraded F3 flight controller and 5.8G VTX
Recommanded Part(not included) :
Remote Control System: Recever and Transmitter
Battery
Package Included :
1 x Youbi XV-130 Frame Kit
1 x PP Cover
1 x F3 5.8G VTX Integraded Board
1 x 4 in 1 BLHeli-S 20A ESC
4 x 1306 Motor
4 x 75MM Prop
1 x 600TVL CMOS Camera
1 x Antenna
3 x Cover Shell (white,gray, black)
