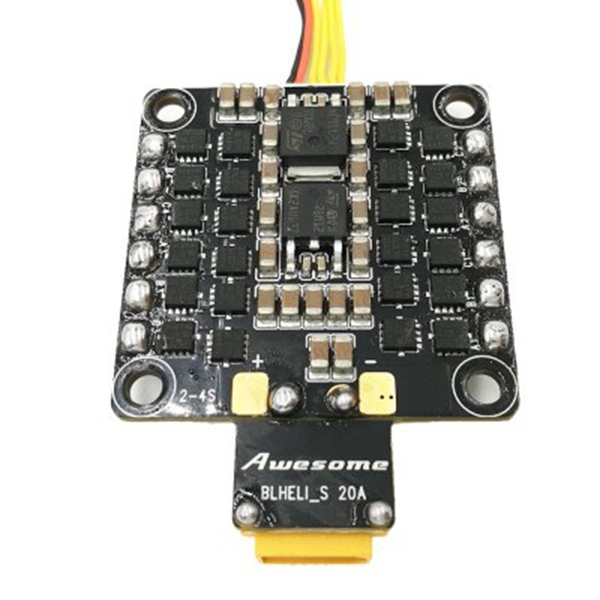

Youbi XV 130 PDB XT30 Integraded 4-in-1 BLHeli_S 20A ESC Power Distribution Board for FPV Micro Racer
Description :
MPU: EFM8BB2
Continuous current: 20A x 4
Burst current: 40A x 4
BEC: 5V 500mA
RPM: 70000
Drive signal: PWM / Oneshot125 / Oneshot42 / Multishot
Firmware: BLHeli - S 16.X
Recommended motor: 1104 / 1306 / 2204 / 2005 / 2006
Product weight: 12g
Product size (L x W x H): 3.50 x 3.50 x 2.00 cm
Features:
High TG PCB, blind vias, supper discharge capability
With top Japanese capacitor and MOS tube, it supports up to 4S voltage input
An ESC can handle 40A electric current at maximum
Has the same PCB board supplier as the DJI's
Package Included :
1 x XV 130 PDB Integraded 4-in-1 BLHeli_S 20A ESC
